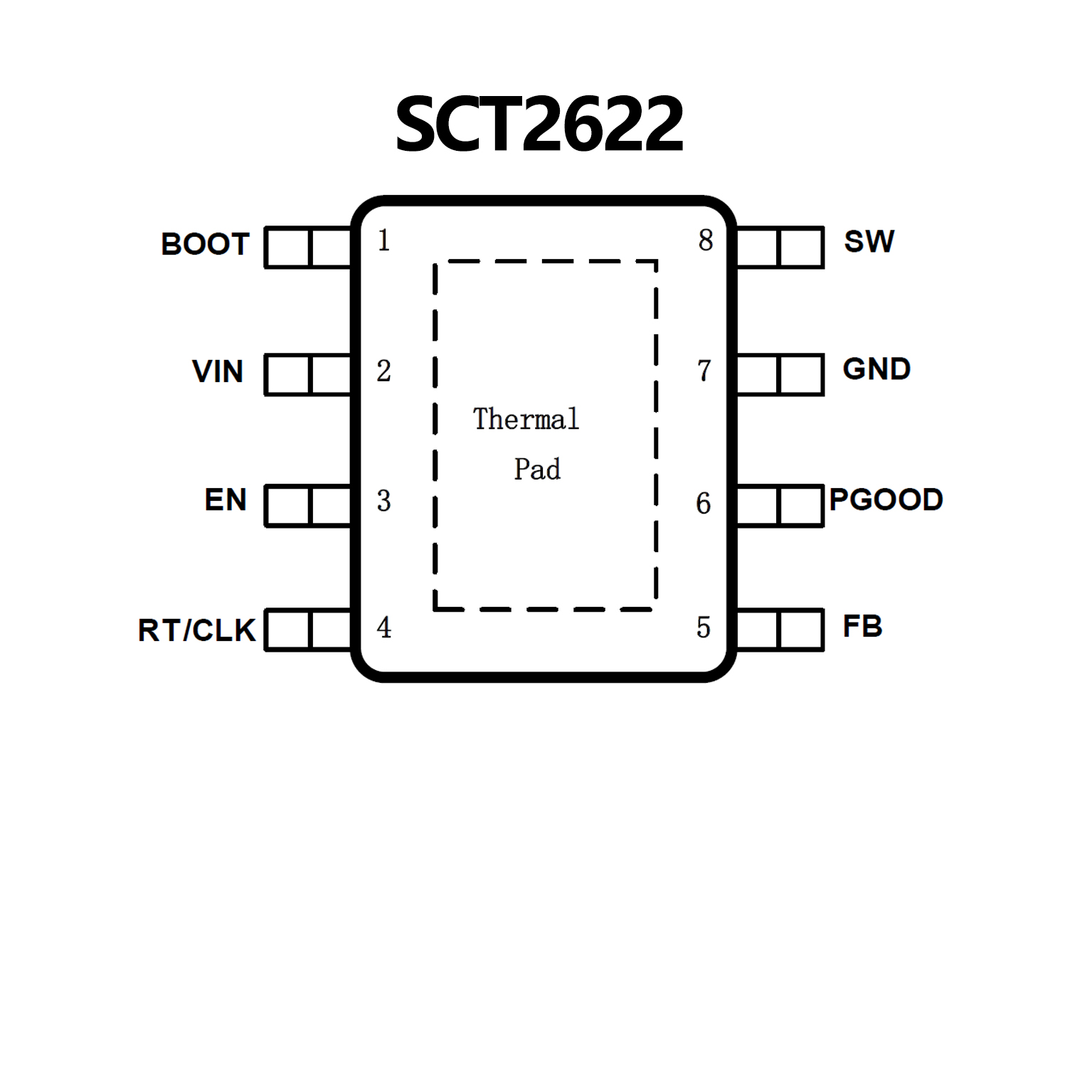

SCT2622.pdf? Wide Input Range: 4.2V-60V
? 2A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 220m? High-Side MOSFET
? Low Quiescent Current: 100μA
? Pulse Skipping Mode (PSM) in light load
? 100ns Minimum On-time
? 4ms Internal Soft-start Time
? Internal compensation for Ease of Use
? Adjustable Frequency 100KHz to 1.2MHz
? External Clock Synchronization
? UV and OV Power Good Output
? Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out
Protection (UVLO) Threshold and Hysteresis
? Low Dropout Mode Operation
? Over-voltage and Over-Temperature Protection
? Available in an ESOP-8 Package

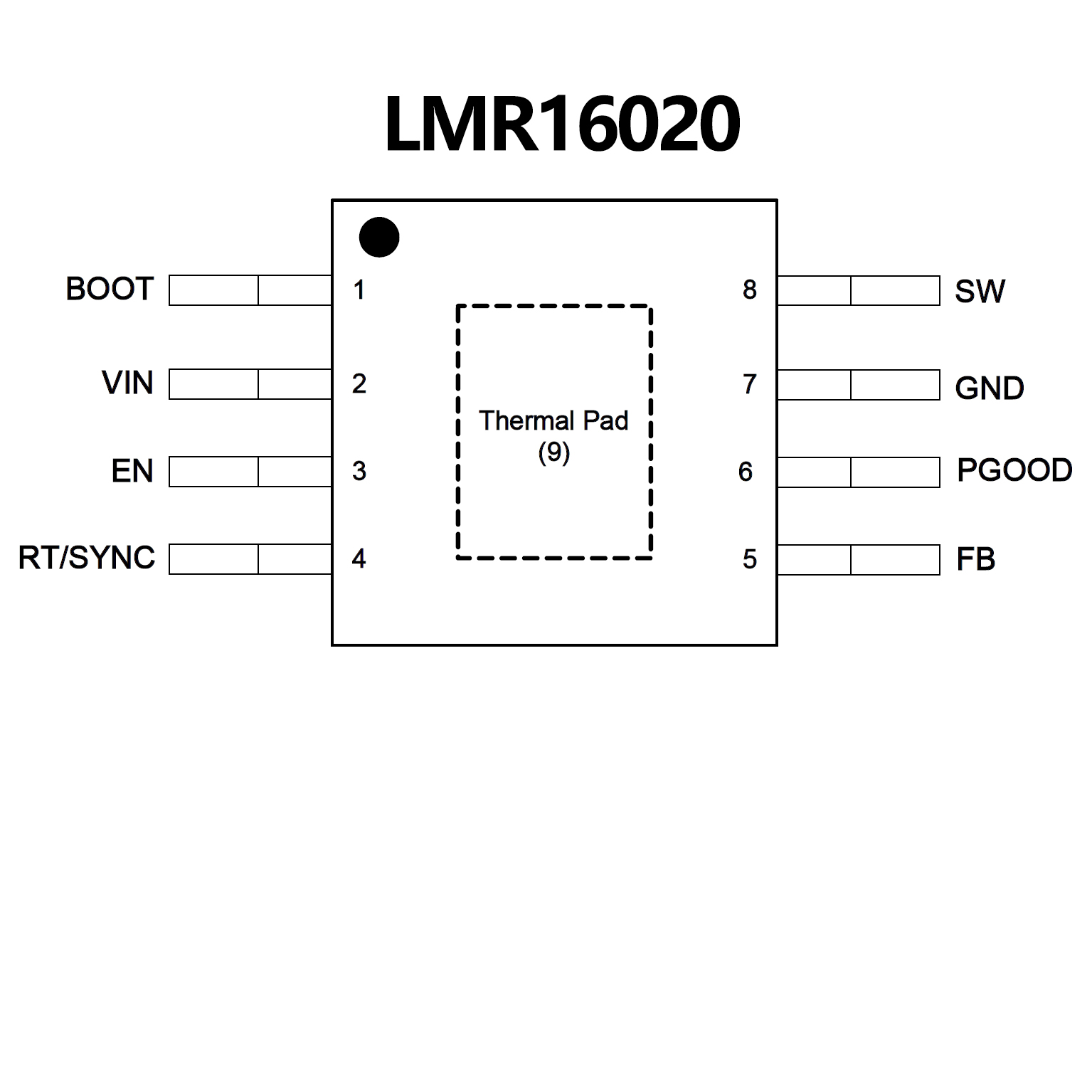

? 4.3 V to 60 V Input Range
? 2 A Continuous Output Current
? Ultra-low 40 μA Operating Quiescent Current
? 155 mΩ High-Side MOSFET
? Current Mode Control
? Adjustable Switching Frequency from 200 kHz to
2.5 MHz
? Frequency Synchronization to External Clock
? Internal Compensation for Ease of Use
? High Duty Cycle Operation Supported
? Precision Enable Input
? Power-Good Flag
? 1 μA Shutdown Current
? Thermal, Overvoltage and Short Protection
? 8-Pin HSOIC with PowerPAD? Package
