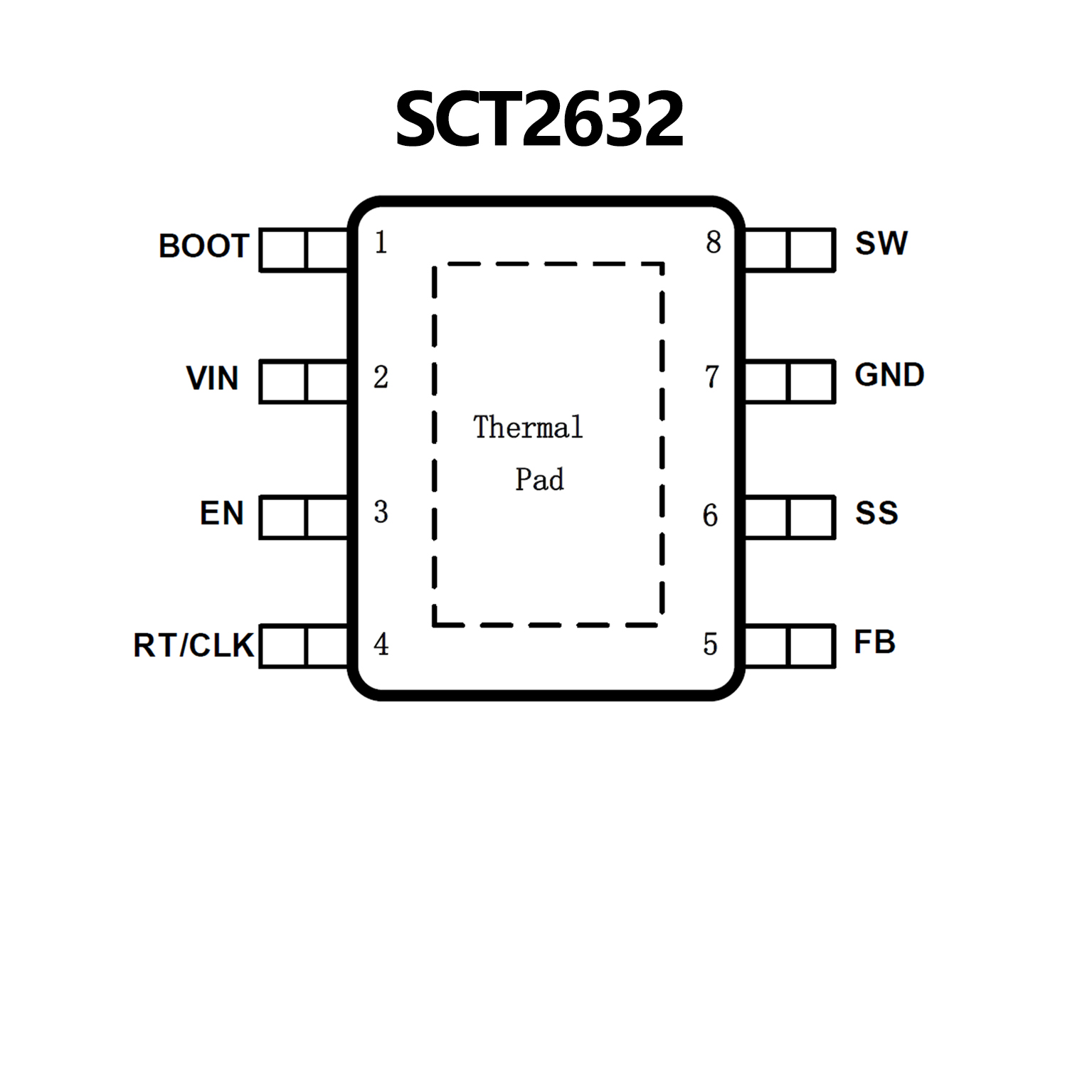

SCT2632.pdf? Wide Input Range: 4.2V-60V
? 3A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 220mΩ High-Side MOSFET
? Low Quiescent Current: 100uA
? Pulse Skipping Mode (PSM) in light load
? 100ns Minimum On-time
? Adjustable Soft-start Time
? Internal compensation for Ease of Use
? Adjustable Frequency 100KHz to 1.2MHz
? External Clock Synchronization
? Precision Enable Threshold for Programmable Input
Voltage Under-Voltage Lock Out Protection (UVLO)
Threshold and Hysteresis
? Low Dropout Mode Operation
? Over-voltage and Over-Temperature Protection
? Available in an ESOP-8 Package

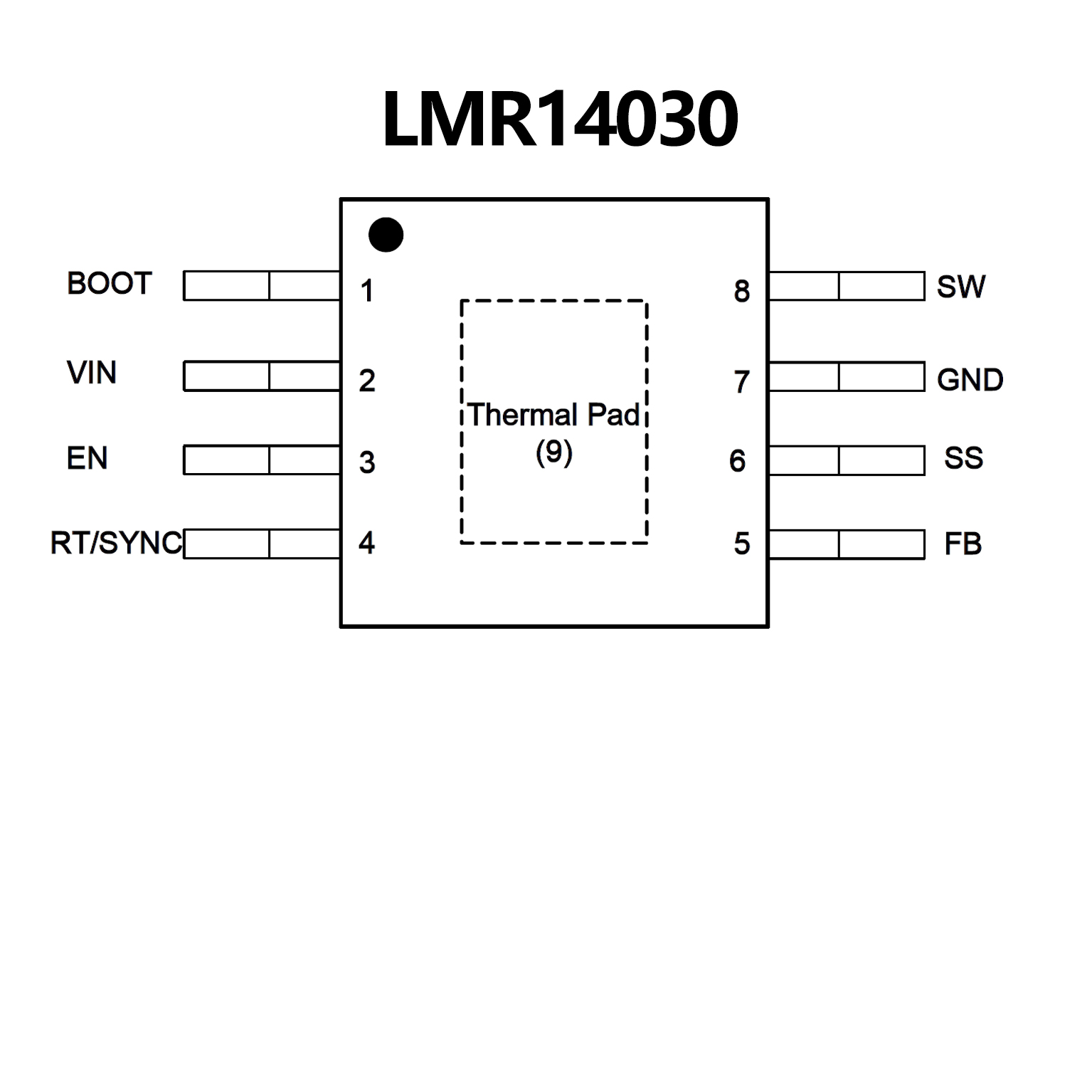

? 4 V to 40 V Input Range
? 3.5 A Continuous Output Current
? Ultra-low 40 μA Operating Quiescent Current
? 90 m? High-Side MOSFET
? Minimum Switch-On Time: 75 ns
? Current Mode Control
? Adjustable Switching Frequency from 200 kHz to 2.5 MHz
? Frequency Synchronization to External Clock
? Internal Compensation for Ease of Use
? High Duty Cycle Operation Supported
? Precision Enable Input
? 1 μA Shutdown Current
? External Soft-start
? Thermal, Overvoltage and Short Protection
? 8-Pin HSOIC with PowerPAD? Package
