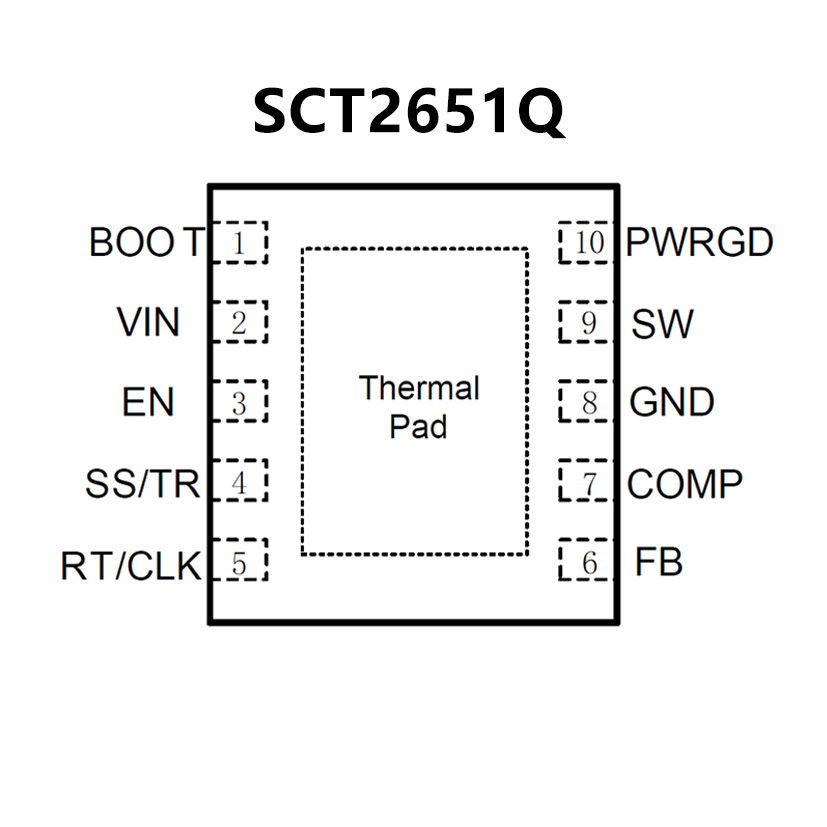

SCT2651Q.pdf? Wide Input Range: 4.5V-60V
? Up to 5A Continuous Output Current
? 0.8V ±1% Feedback Reference Voltage
? Integrated 80m? High-Side MOSFET
? Low Quiescent Current: 175uA
? Pulse Skipping Mode (PSM) in light load
? 130ns Minimum On-time
? Adjustable Soft-start Time
? Adjustable Frequency 100KHz to 800KHz
? External Clock Synchronization
? Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out
Protection (UVLO) Threshold and Hysteresis
? Low Dropout Mode Operation
? Derivable Inverting Voltage Regulator
? Over-voltage and Over-Temperature Protection
? Available in DFN-10L Package
? ualified for Automotive Applications
Device Temperature Grade 1:
40°C to 125°C Ambient Operating Temperature Range
Device HBM ESD Classification H1C
Device CDM ESD Classification C5
? High Efficiency at Light Loads With Pulse-Skipping
Eco-mode? Control
? 87-mΩ High-Side MOSFET
? 152-μA Operating Quiescent Current and
? μA Shutdown Current
? 100-kHz to 2.5-MHz Switching Frequency
? Synchronizes to External Clock
? Low-Dropout Operation at Light Loads With
Integrated BOOT Recharge FET
? Adjustable UVLO Voltage and Hysteresis
? Power-Good Output Monitor for Undervoltage
and Overvoltage
? Adjustable Soft-Start and Sequencing
? 0.8-V 1% Internal Voltage Reference
? 10-Pin WSON With Thermal Pad Package
? –40°C to 150°C TJ Operating Range

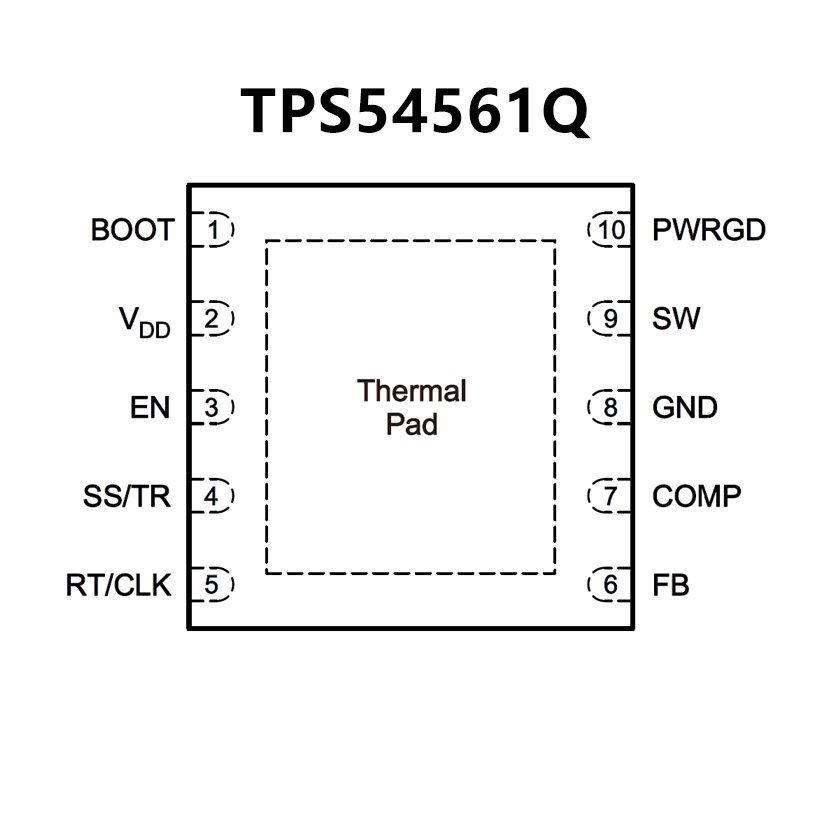

? Create a Custom Design using the TPS54561-Q1
