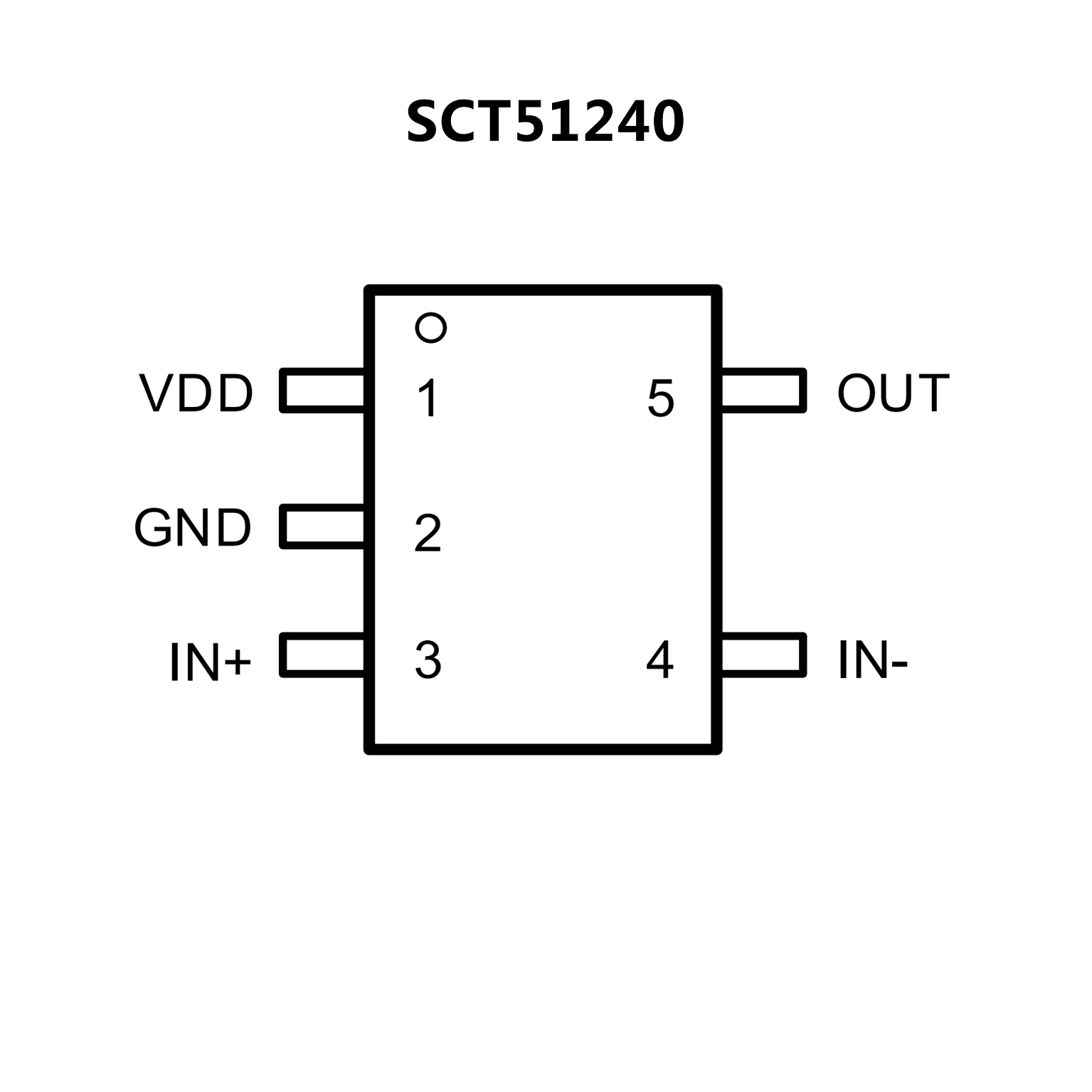

SCT51240.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak Sink
Current
? Dual Input Configuration: Non-Inverting (IN+)
or Inverting (IN-) Input
? Negative Input Voltage Capability: Down to -5V
? TTL Input-Logic Threshold
? Propagation Delay: 12ns
? Fast Rising and Falling Time: 9ns and 6ns
? Low Quiescent Current: 38uA
? Under Voltage Lock Out Protection of Supply
Voltage
? Output Low When Input Floating
? Thermal Shutdown Protection: 170°C
? Available in TSOT23-5L Package
? 1.4 A Peak Sink / Source at VDD = 12 V
? 1.1 A Sink / 0.9 A Source at VOUT = 6 V
? 4.5 to 18 V Operating Range

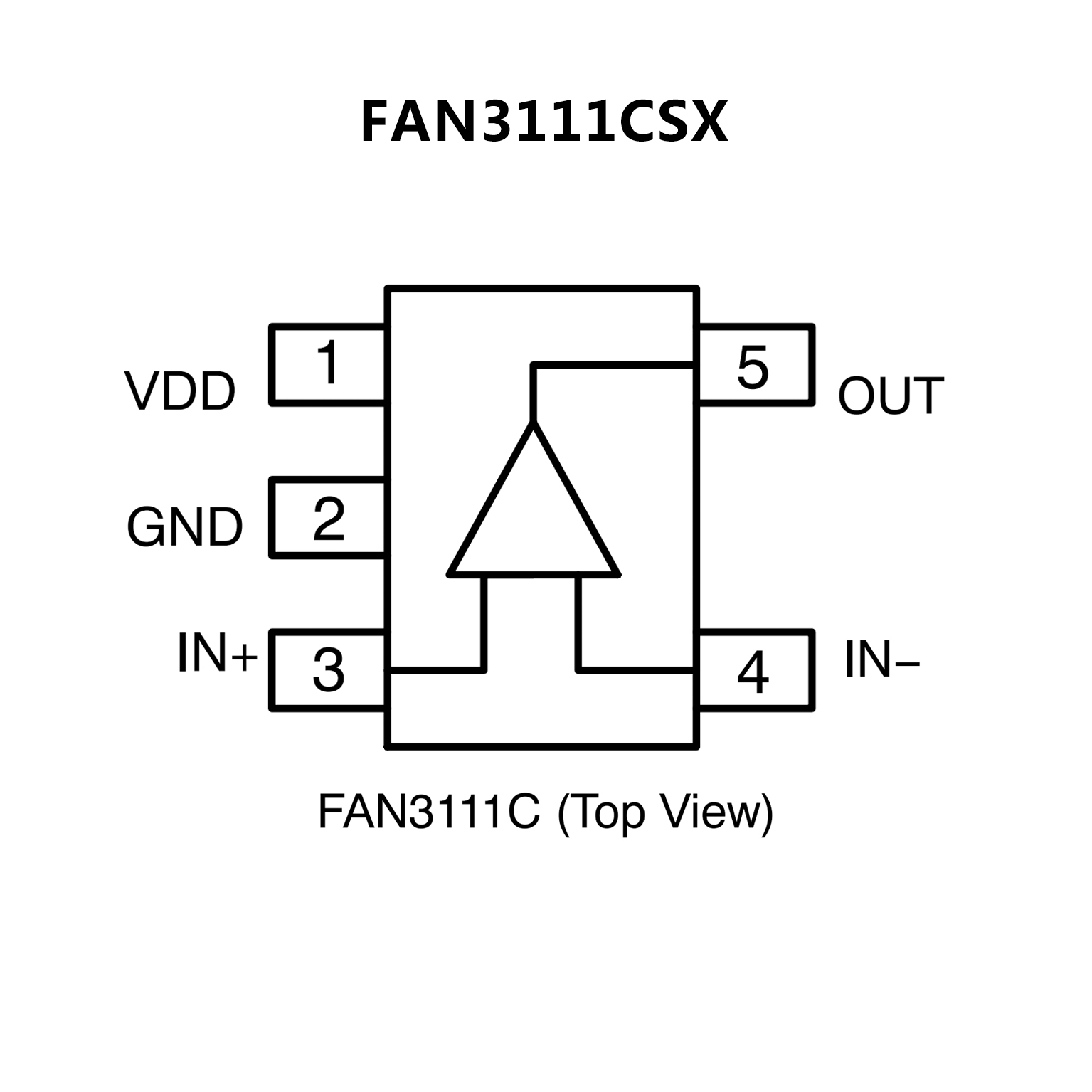

? FAN3111C Compatible with FAN3100C Footprint
? Two Input Configurations:
? Dual CMOS Inputs Allow Configuration as
Non-Inverting or Inverting with Enable Function
? Single Non-Inverting, Low-Voltage Input for
Compatibility with Low-Voltage Controllers
? Small Footprint Facilitates Distributed Drivers for
Parallel Power Devices
? 15 ns Typical Delay Times
? 9 ns Typical Rise / 8 ns Typical Fall times with
470 pF Load
? 5-Pin SOT23 Package
? Rated from –40°C to 125°C Ambient
