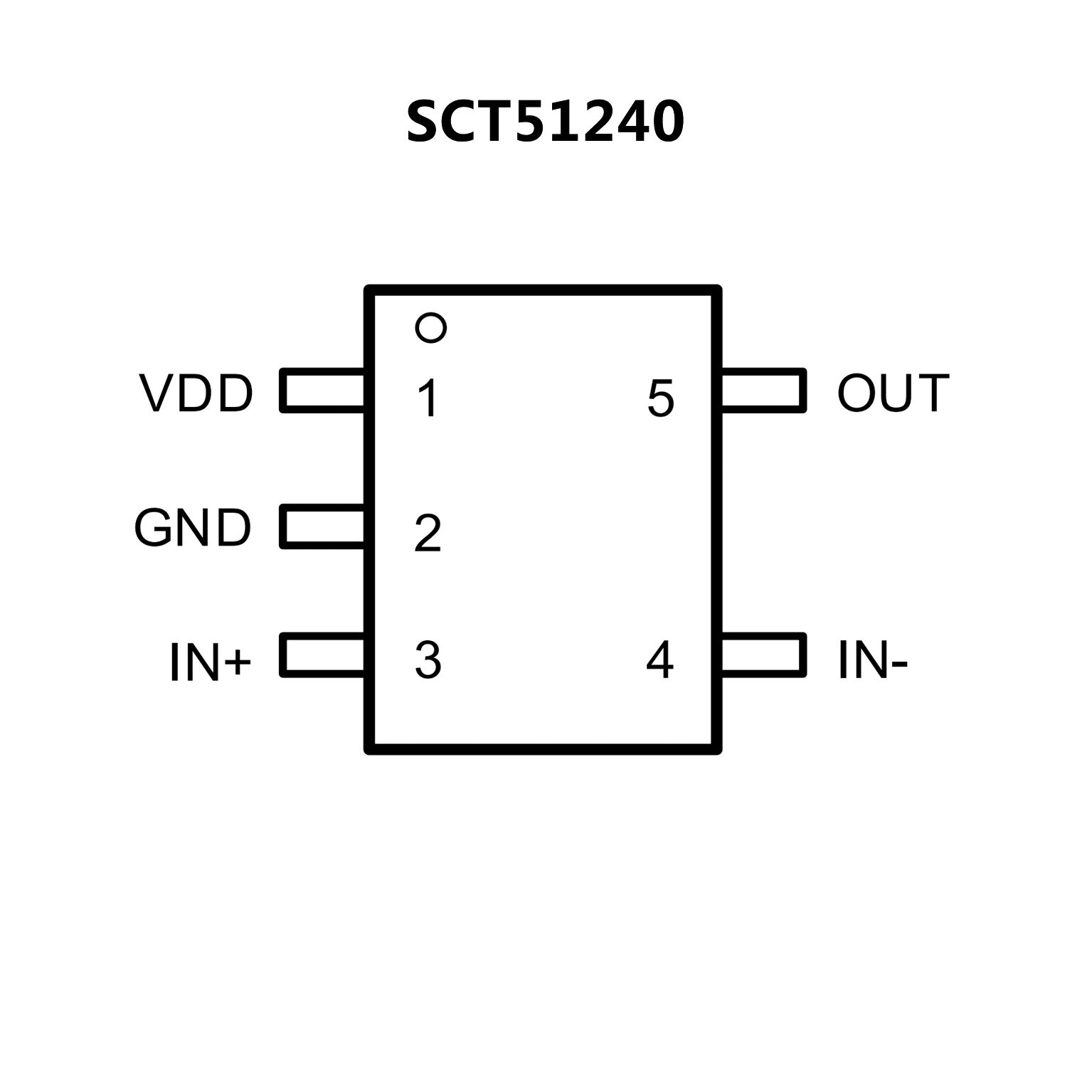

SCT51240.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak Sink
Current
? Dual Input Configuration: Non-Inverting (IN+)
or Inverting (IN-) Input
? Negative Input Voltage Capability: Down to -5V
? TTL Input-Logic Threshold
? Propagation Delay: 12ns
? Fast Rising and Falling Time: 9ns and 6ns
? Low Quiescent Current: 38uA
? Under Voltage Lock Out Protection of Supply
Voltage
? Output Low When Input Floating
? Thermal Shutdown Protection: 170°C
? Available in TSOT23-5L Package

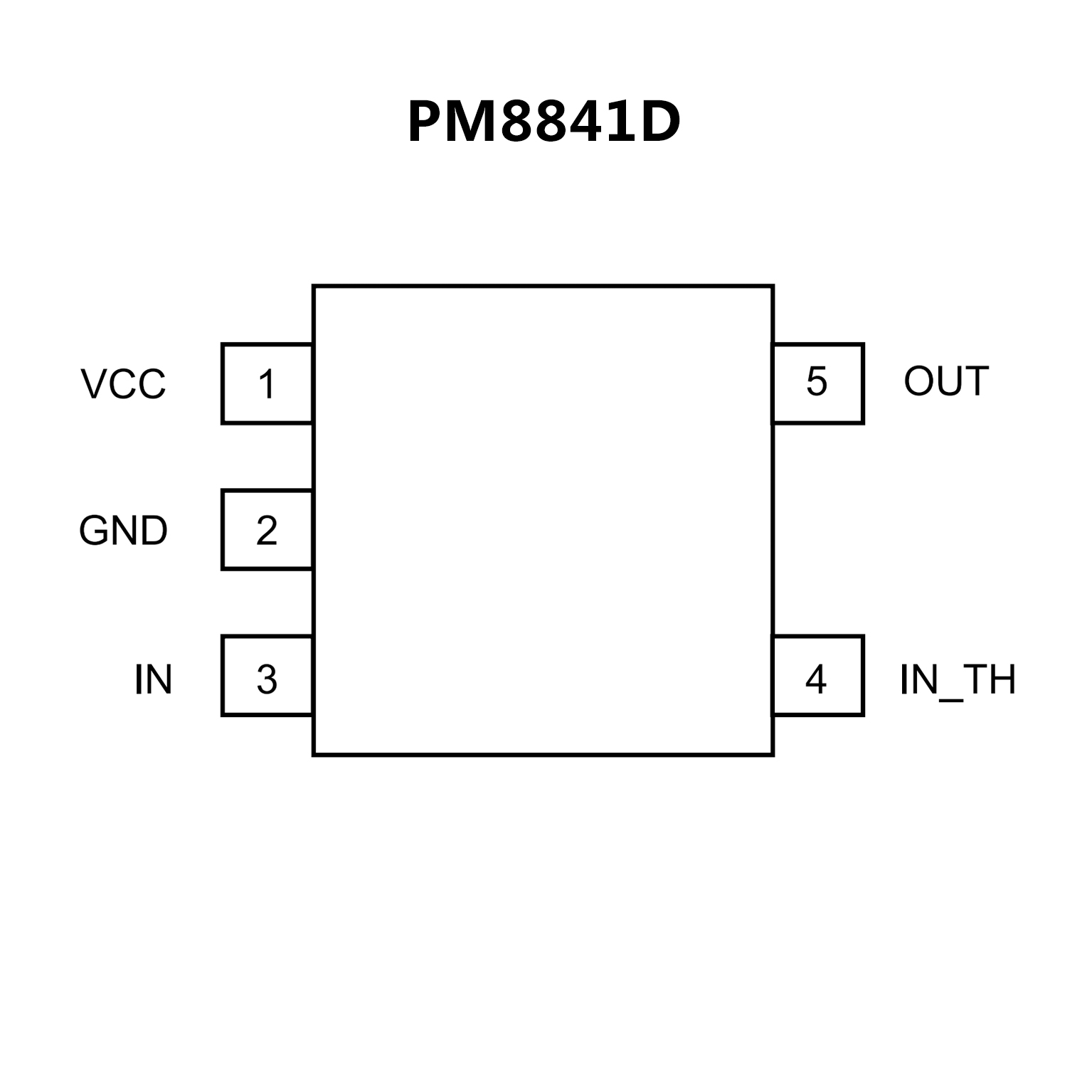

? Low-side MOSFET driver
? 1 A sink and 0.8 A source capability
? External reference for input threshold
? Wide supply voltage range (10 V ÷ 18 V)
? Input and output pull-down resistors
? Short propagation delays
? Input and output UVLO
? Wide operating temperature range:-40°C to 125°C
? SOT23-5 package
