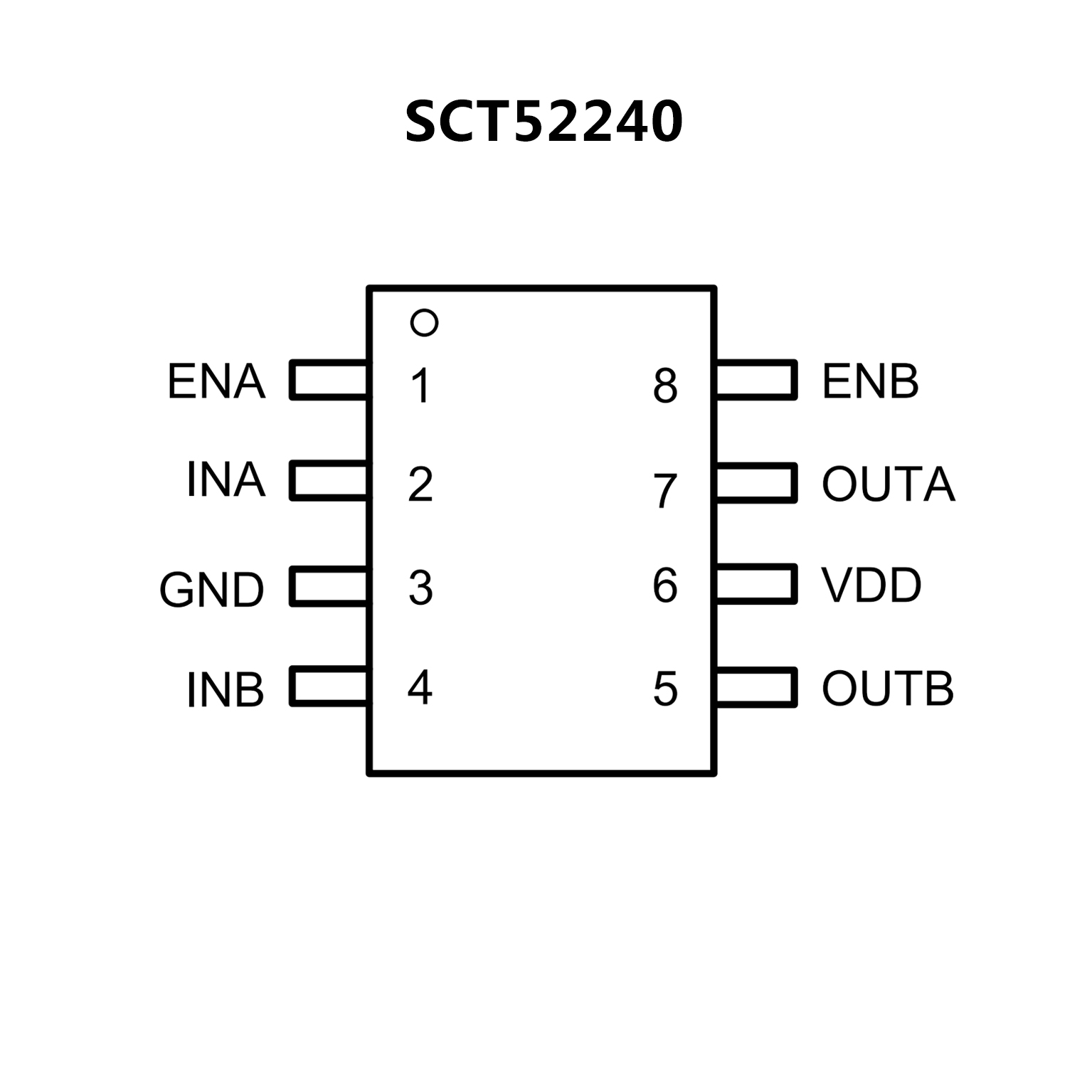

SCT52240.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak Sink
Current
? Stackable Output for Higher Driving Capability
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Typical Delay Matching: 1ns
? Low Quiescent Current: 55uA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 and eMSOP-8 Package

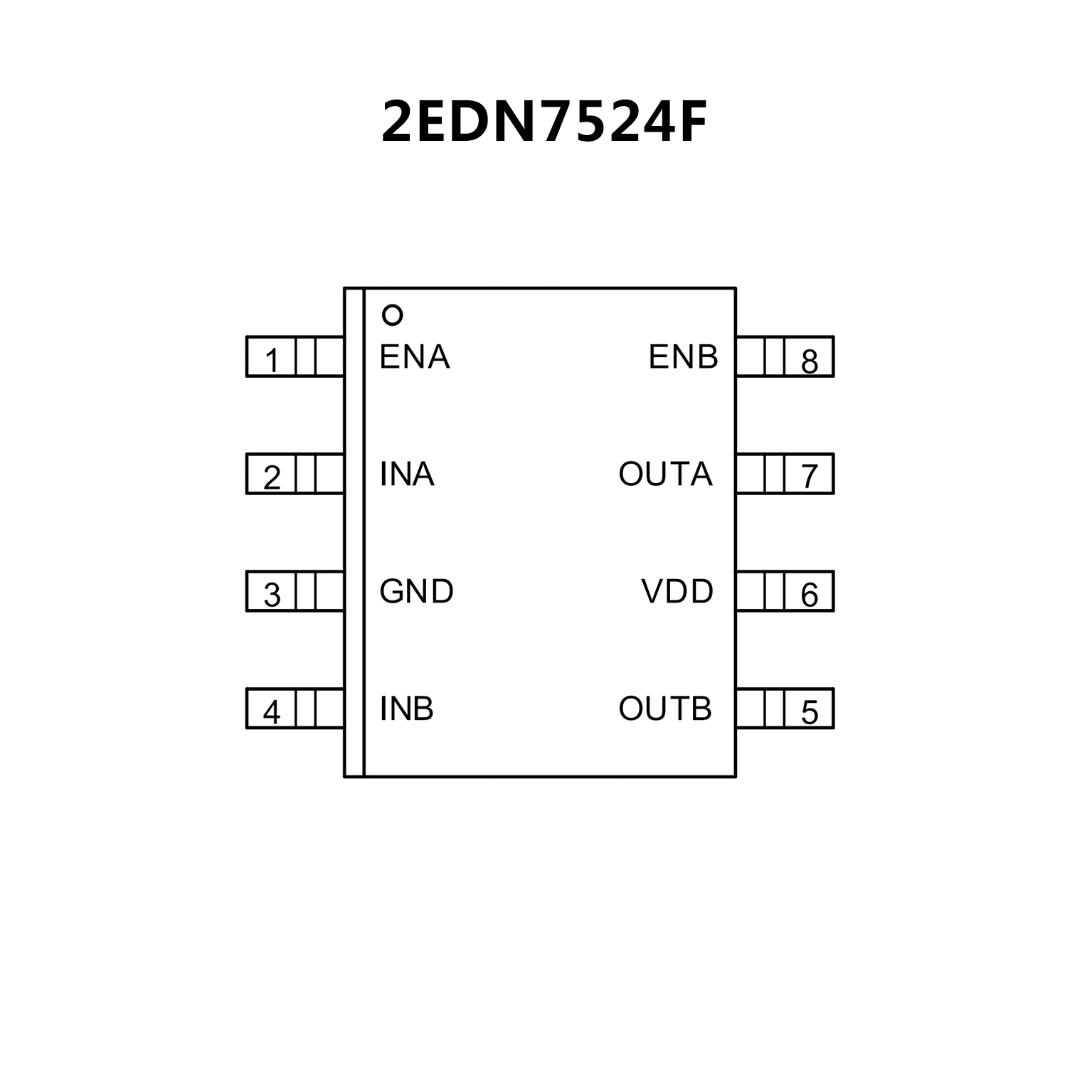

Fast, precise, strong and compatible
? Highly efficient SMPS enabled by 5 ns fast slew rates
and 17 ns propagation delay precision for fast MOSFET
and GaN switching
? 1 ns channel-to-channel propagation delay accuracy
enables safe use of two channels in parallel
? Two independent 5 A channels enable numerous
deployment options
? Industry standard packages and pinout ease system-
design upgrades
The new Reference in Ruggedness
? 4.2 V and 8 V UVLO (Under Voltage Lock Out) options
ensure instant MOSFET protection under abnormal
conditions
? -10 V control and enable input robustness delivers crucial
safety margin when driving pulse-transformers or driving
MOSFETs in through hole packaging
? 5 A reverse current robustness eliminates the need for
output protection circuitry.
