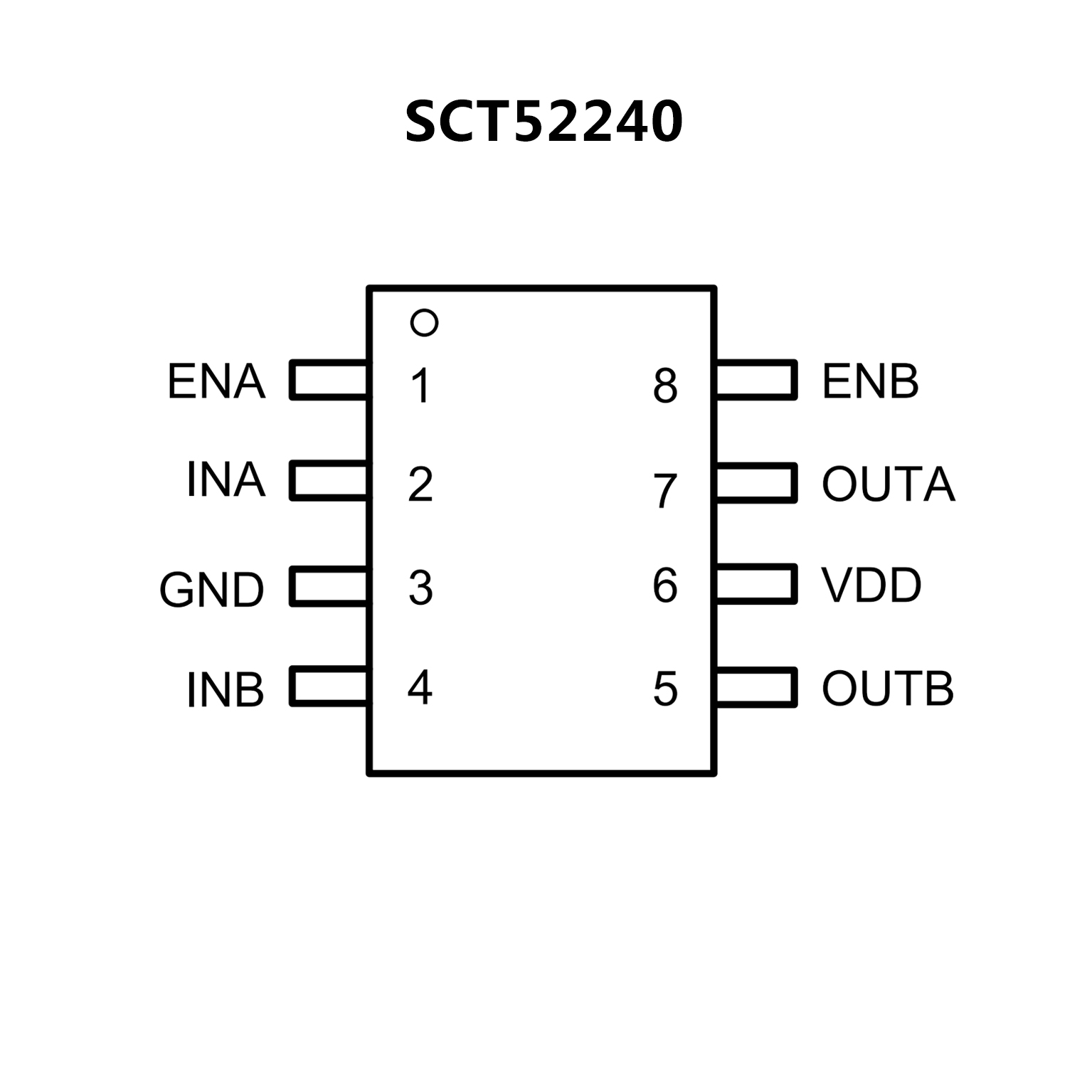

SCT52240.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak Sink
Current
? Stackable Output for Higher Driving Capability
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Typical Delay Matching: 1ns
? Low Quiescent Current: 55uA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 and eMSOP-8 Package
? Industry-standard-compatible pinout
? High current drive capability
? Precise threshold shutdown comparator
? UVLO with hysteresis
? Overtemperature warning signal
? Overtemperature shutdown
? 3.3 V-compatible inputs
? 10 ns typical rise time and fall time @ 2.2 nF load
? Matched propagation delays between channels
? Fast propagation delay

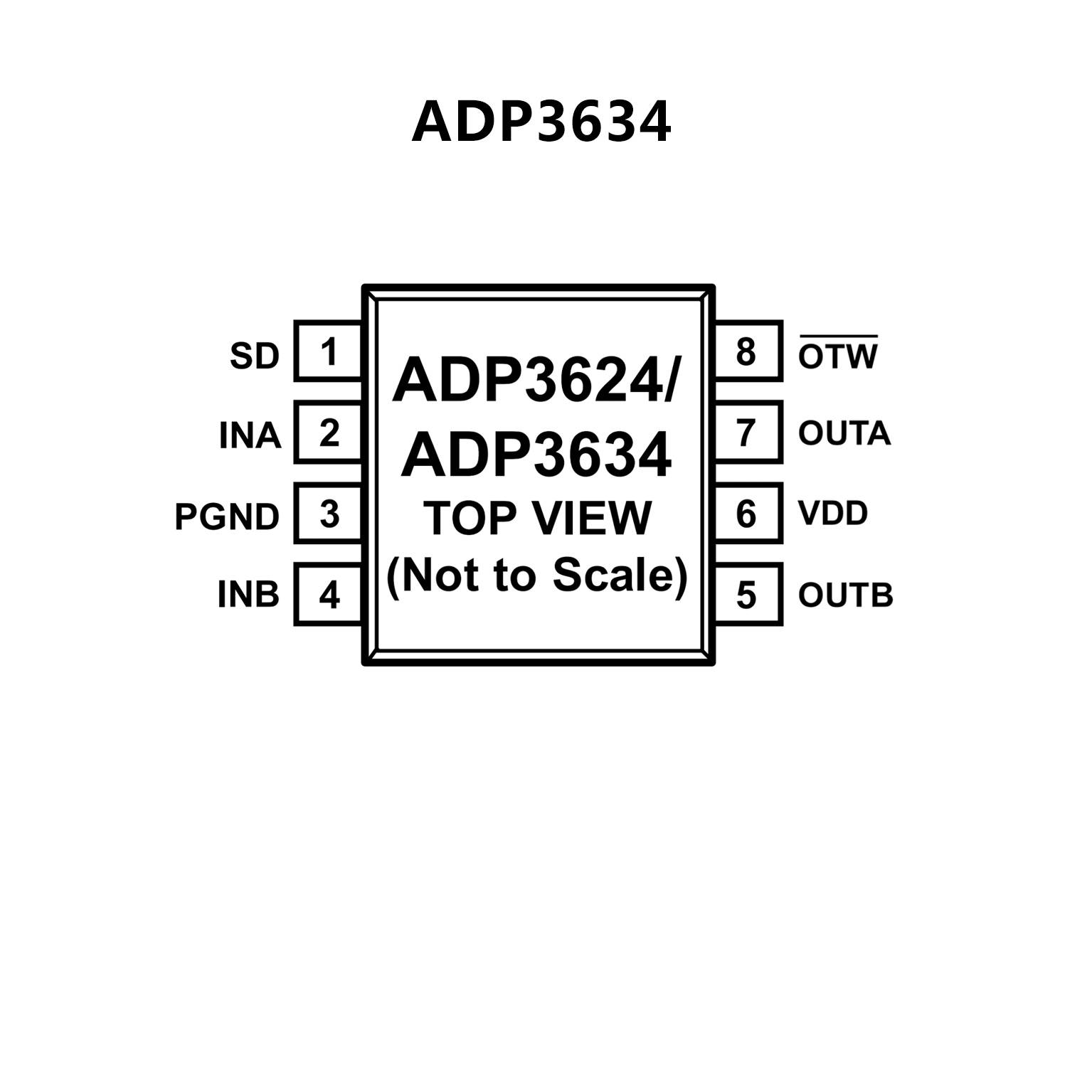

9.5 V to 18 V supply voltage (ADP3633/ADP3634/ADP3635)
4.5 V to 18 V supply voltage (ADP3623/ADP3624/ADP3625)
? Parallelable dual outputs
? Rated from ?40°C to +85°C ambient temperature
? Thermally enhanced packages, 8-lead SOIC_N_EP and
8-lead MINI_SO_EP
