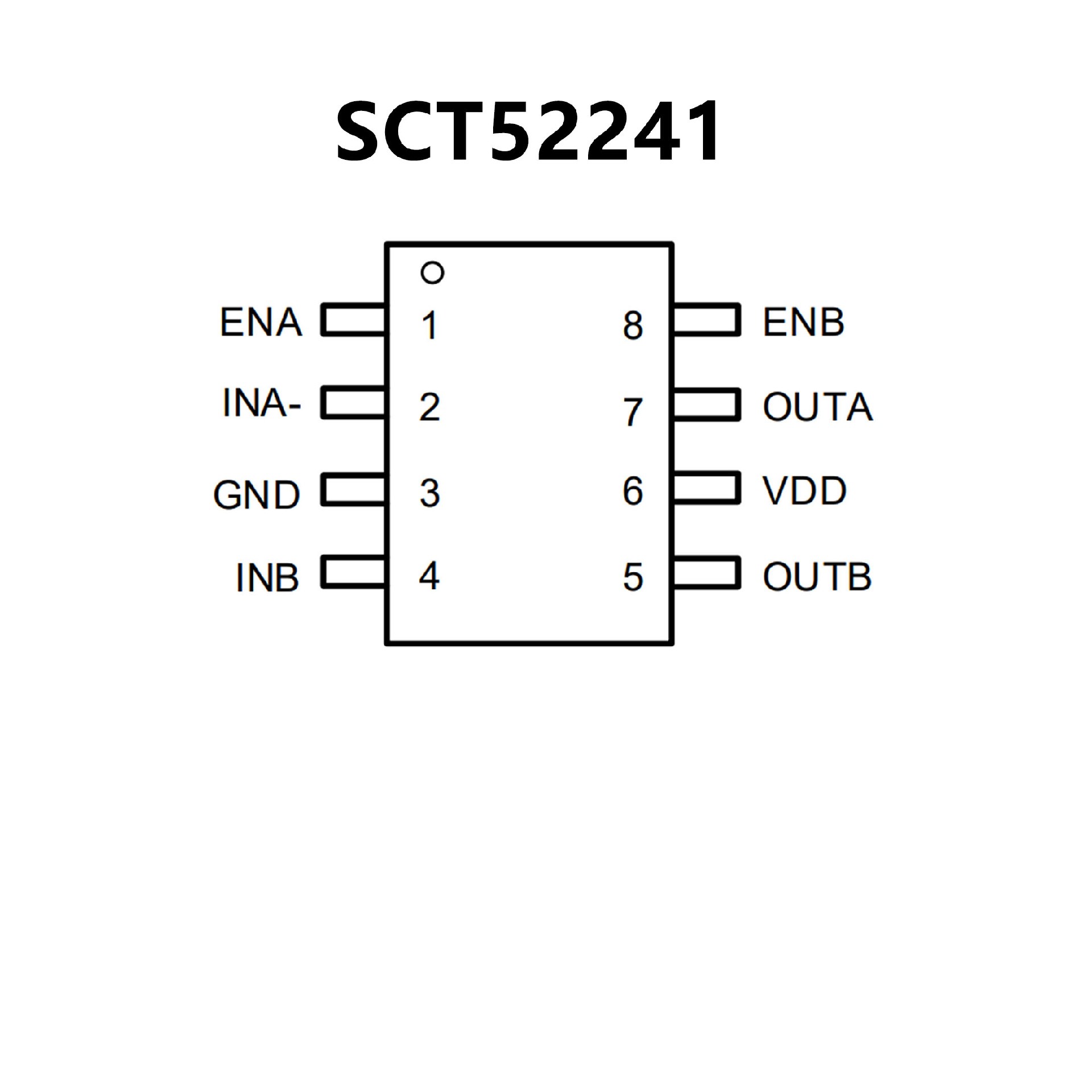

SCT52241.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak Sink Current
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Low Quiescent Current: 55μA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 Package

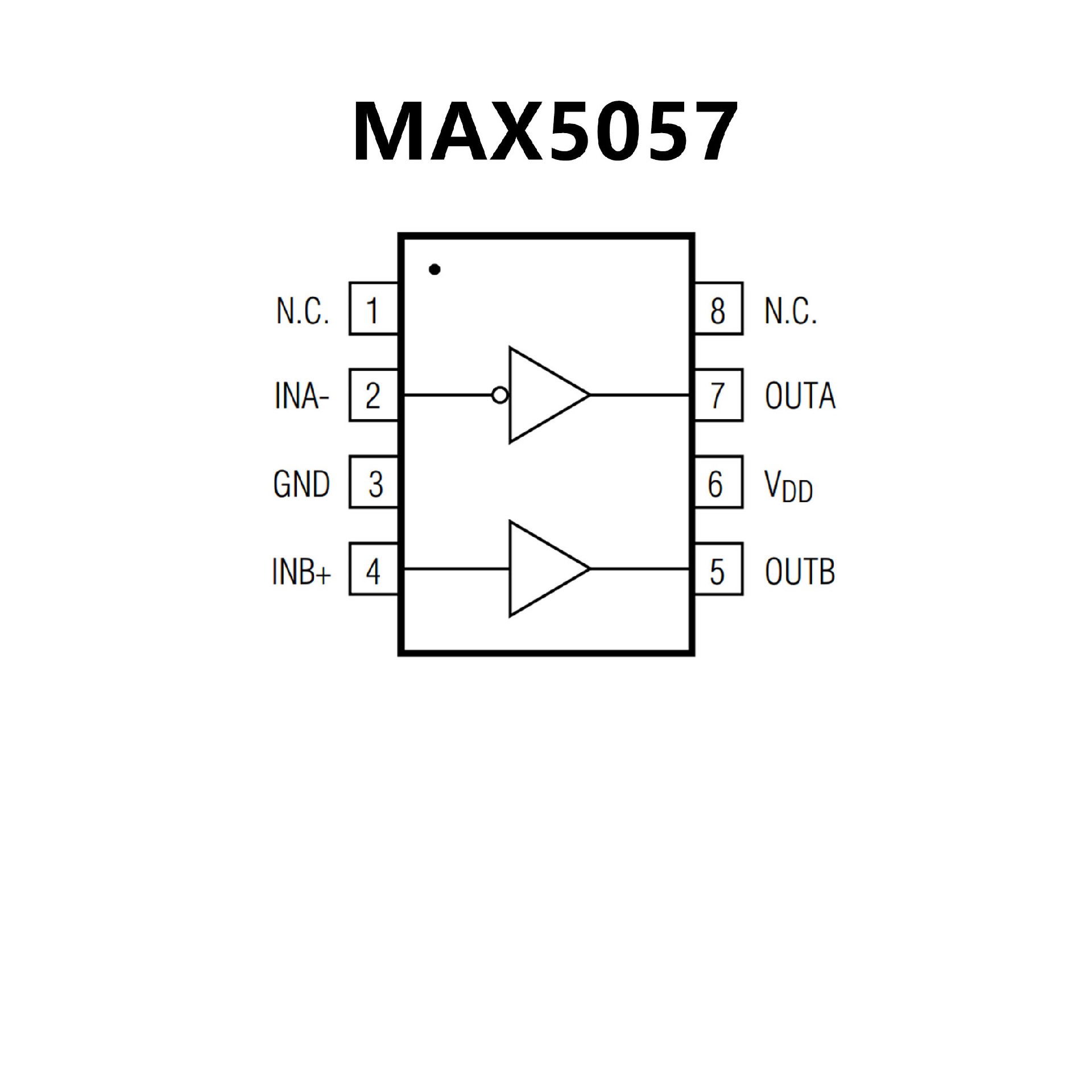

? 4V to 15V Single Power Supply
? 4A Peak Source/Sink Drive Current
? 20ns (typ) Propagation Delay
? Matching Delay Between Inverting
andNoninverting Inputs
? Matching Propagation Delay
Between TwoChannels
? VDD / 2 CMOS Logic Inputs (MAX5054AATA)
? TTL Logic Inputs
(MAX5054B/MAX5055/MAX5056/MAX5057)
? 0.1 x VDD (CMOS) and 0.3V (TTL)
Logic-InputHysteresis
? Up to +18V Logic Inputs
(Regardless of VDDVoltage)
? Low Input Capacitance: 2.5pF (typ)
? 40μA (typ) Quiescent Current
? -40°C to +125°C Operating Temperature Range
? 8-Pin TDFN and SO Packages
