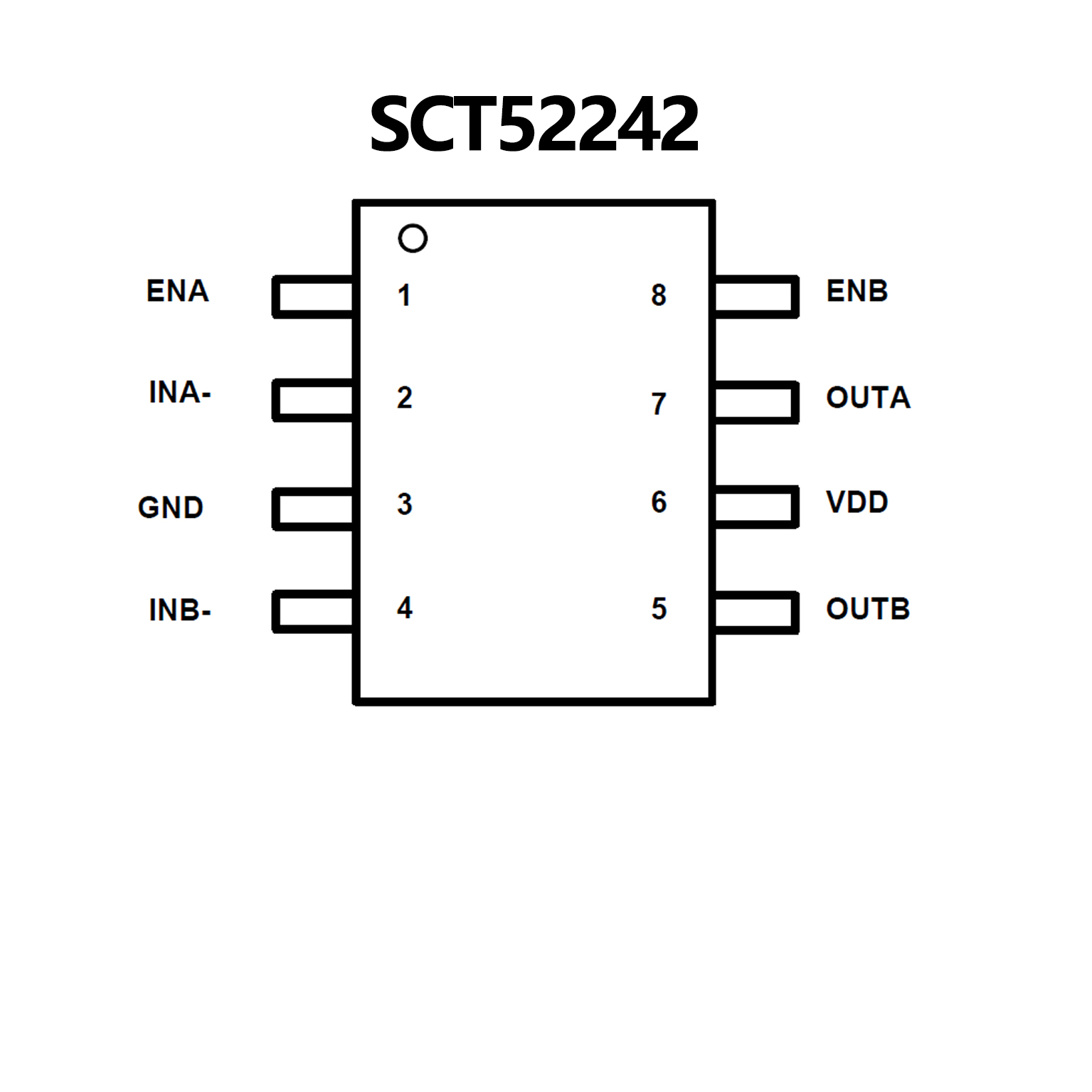

SCT52242.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak SinkCurrent
? Stackable Output for Higher Driving Capability
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Typical Delay Matching: 1ns
? Low Quiescent Current: 55μA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 Package

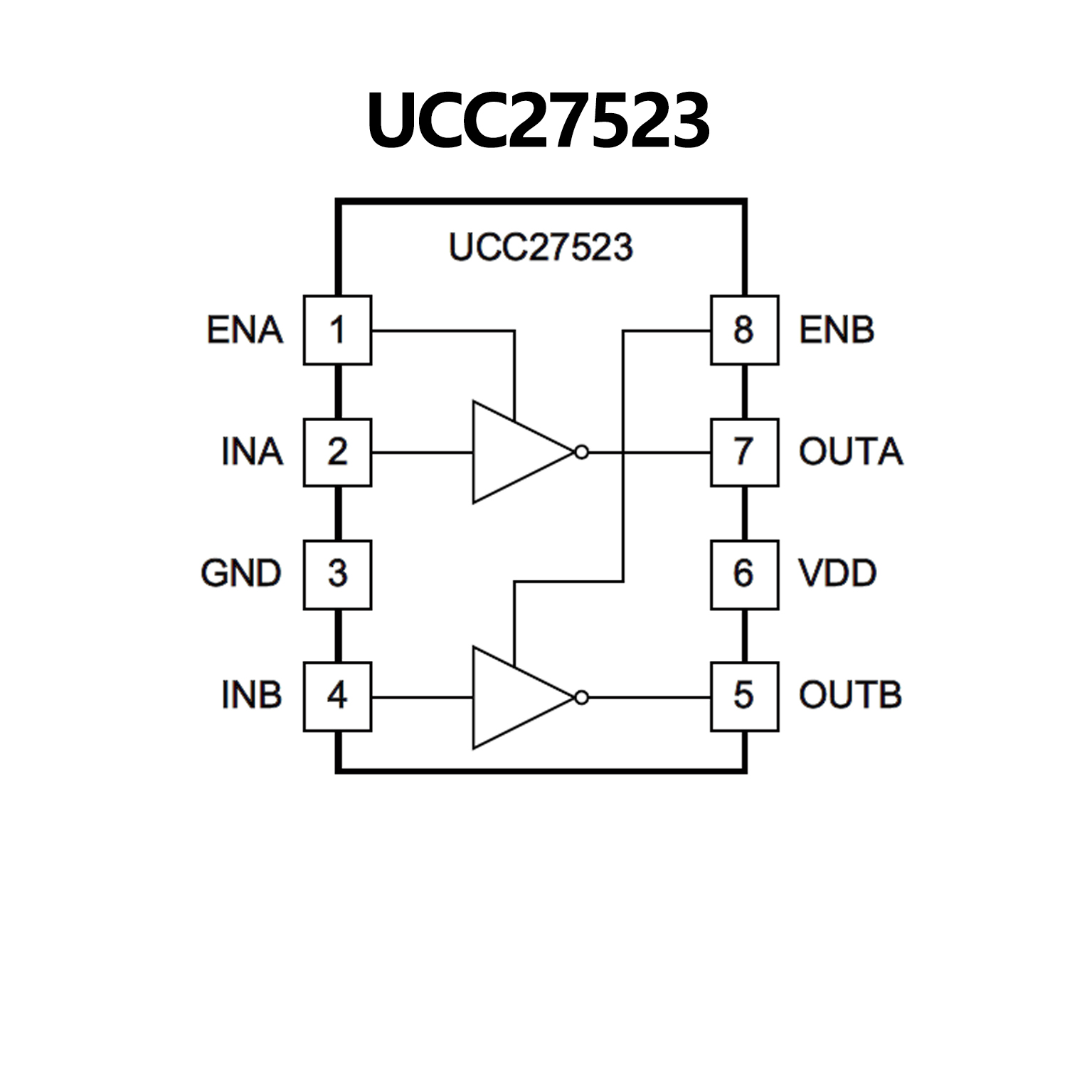

? Industry-Standard Pinout
? Two Independent Gate-Drive Channels
? 5-A Peak Source and Sink-Drive Current
? Independent-Enable Function for Each Output
? TTL and CMOS Compatible Logic Threshold
? Independent of Supply Voltage
? Hysteretic-Logic Thresholds for High Noise Immunity
? Inputs and Enable Pin-Voltage Levels
Not Restricted by VDD Pin Bias Supply Voltage
? 4.5-V to 18-V Single-Supply Range
? Outputs Held Low During VDD-UVLO, (Ensures
Glitch-Free Operation at Power up and Power Down)
? Fast Propagation Delays (13-ns Typical)
? Fast Rise and Fall Times (7-ns and 6-ns Typical)
? 1-ns Typical Delay Matching Between Two Channels
? Two Outputs are in Parallel for Higher Drive Current
? Outputs Held Low When Inputs Floating
? PDIP (8), SOIC (8), MSOP (8) PowerPAD? and
? 3-mm × 3-mm WSON-8 Package Options
? Operating Temperature Range of –40°C to 140°C
