SCT52A40.pdf? Wide supply rail from 8V-24V
? Drives Both High-side and Low-side N-Channel MOSFET
? 4A Peak Output Source and Sink Current
? Bootstrap Supply Voltage Range up to 120V
? Integrated Bootstrap Diode
? TTL Compatible Input, -10V Input Capability
? Quiescent Current 252uA
? 45ns Propagation Delay Times
? 2ns Delay Matching
? 7ns Rise and 4.5ns Fall Time with 1000pF Load
? 15ns Input Deglitching Time
? 40ns Minimum Pulse Width
? Supply Rail Under-Voltage Lockout (UVLO)
? Operation from -40°C~150oC
? Available in SOP-8L, ESOP-8L, DFN-9L 3mm x 3mm,
DFN-10L 3mm x 3mm and DFN-8L 4mm x 4mm Package

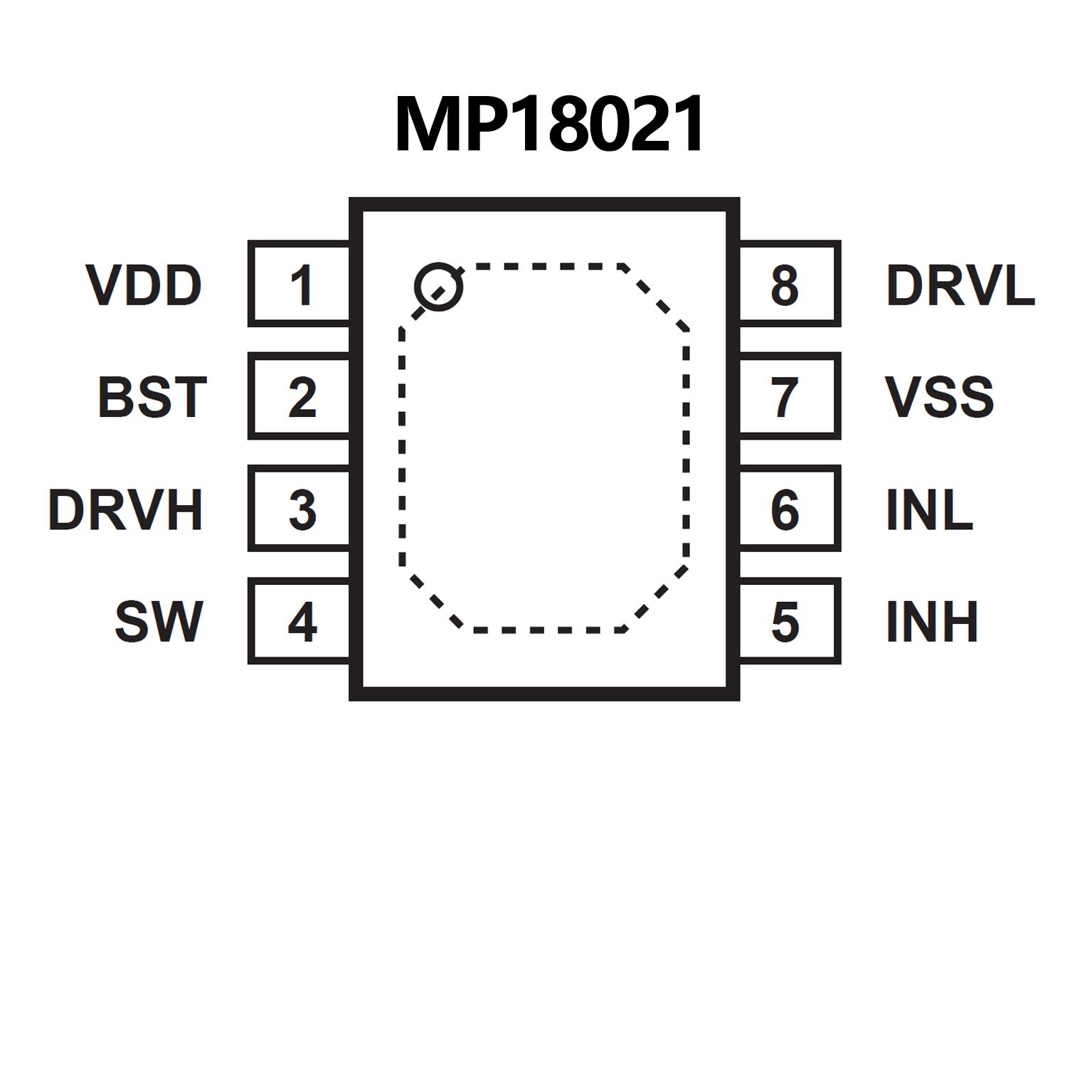

? Drives N-channel MOSFET half bridge
? 100V VBST voltage range
? On-chip bootstrap diode
? Typical 16ns propagation delay time
? Less than 5ns gate drive matching
? Drive 1nF load with 12ns/9ns rise/fall times
with 12V VDD
? TTL compatible input
? Less than 150?A quiescent current
? UVLO for both high side and low side
? In SOIC8 EPAD and 3×3mm QFN8
Packages
