SCT53600.pdf? 4V to 65V Operating Range
? –65V Reverse voltage rating
? Charge pump for external N-Channel MOSFET
? 20mV ANODE to CATHODE forward voltage
drop regulation
? 12V Gate Drive Voltage
? With Enable Input
? Drive High Side External N-Channel MOSFET
? 1μA Shutdown current (EN=Low)
? 80μA Operating quiescent current (EN=High)
? 2.3-A Peak gate turnoff current
? Fast reverse current turn-off within 0.75us
? Meets automotive ISO7637 transient requirements
with a suitable TVS Diode
? Available in an TSOT23-6L Package
? AEC-Q100 qualified for automotive applications:
Temperature grade 1: –40°C ≤ TA ≤ 125°C
Temperature grade 0: –40°C ≤ TA ≤ 150°C
? Extended junction temperature range:
Grade 1: –40°C ≤ TJ ≤ 150°C
Grade 0: –40°C ≤ TJ ≤ 165°C
? Low quiescent current IQ:
300-nA shutdown IQ
2.7 μA typical at light loads
5 μA maximum at light loads
? 3-V to 40-V wide VIN input voltage range with up to
45-V transient
? Maximum output current: 300 mA
? 2% output-voltage accuracy
? Maximum dropout voltage: 700 mV at 200-mA load
current for fixed 5-V output version
? Stable with low-ESR (0.001-Ω to 5-Ω) ceramic
output-stability capacitor (1 μF to 200 μF)
? Fixed 2.5-V, 3.3-V, and 5-V output voltage

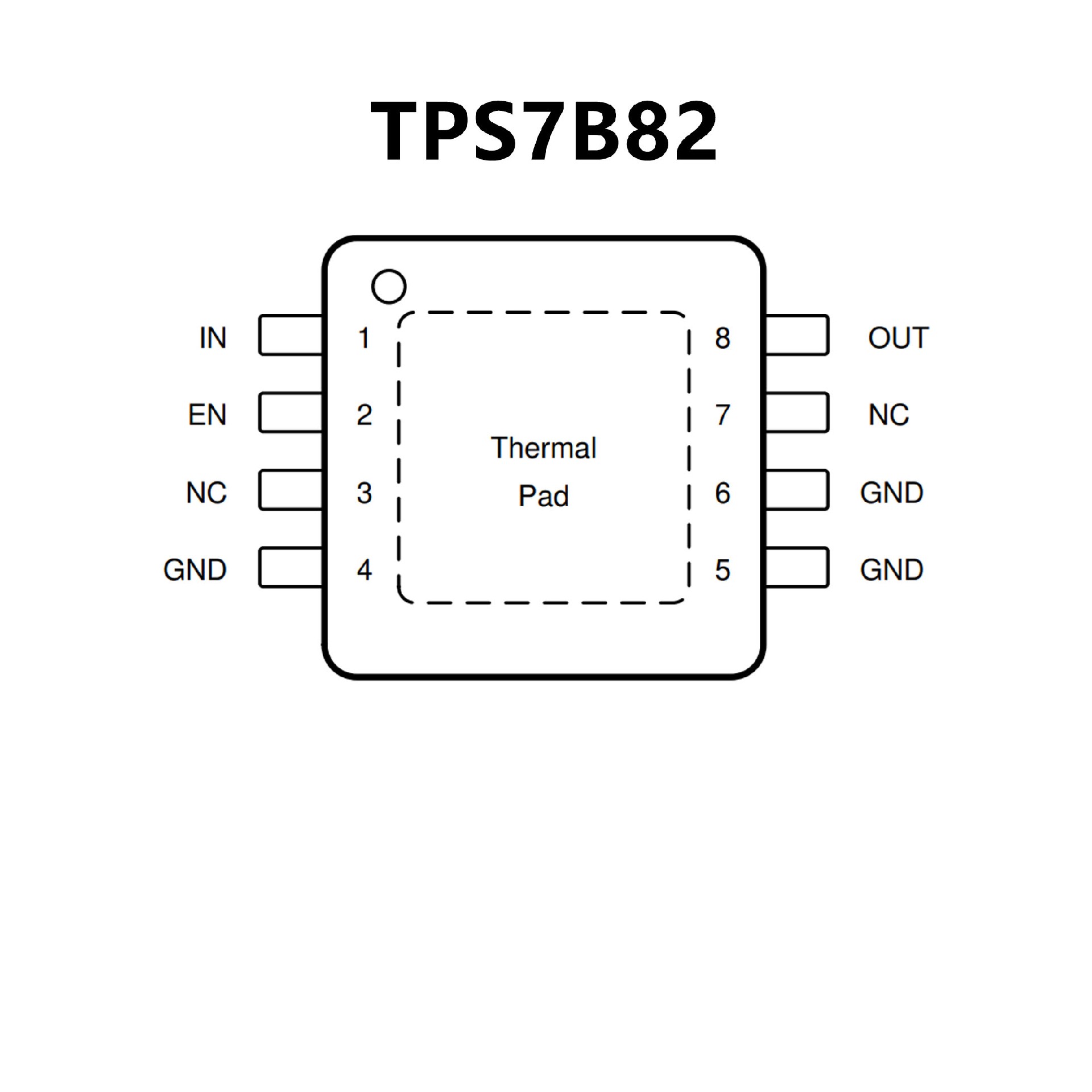

? Packages:
8-pin HVSSOP, RθJA = 63.9°C/W
6-pin WSON, RθJA = 72.8°C/W
5-pin TO-252, RθJA = 31.1°C/W
14-pin HTSSOP, RθJA = 52.0°C/W
