3V-40V Vin, 150mA, 2.6uA IQ, Low-Dropout Regulator, SCT71401 Replace RT9058.
SCT71401
SCT71401.pdf
SCT71401.pdfFEATURES
? Wide Input Range: 3V-40V
? With up to 45V Transient Input Voltage
? Maximum Output Current: 150mA
? Output Voltage:
3.3V and 5V (Fixed Output)
Other Output Voltage Options
(Need contact SCT sales)
? Output Voltage Accuracy:
TJ= 25℃ : ±1%
TJ= -40℃~ 125℃ : ±2%
? Low Quiescent Current: 2.6uA
? Low Dropout Voltage ：
200mV at 50mA load current
613mV at 150mA load current
? Support Output Capacitors Range:
3.3uF~220uF
Low-ESR: 0.001Ω~ 5 Ω
? 550us Internal Soft-start Time
? Integrated Short-Circuit Protection with OCFB
(Over Current Fold-back) Feature
? Over-Temperature Protection
? Available Package:
SOT23-5 / SOT23-3 / SOT89-3

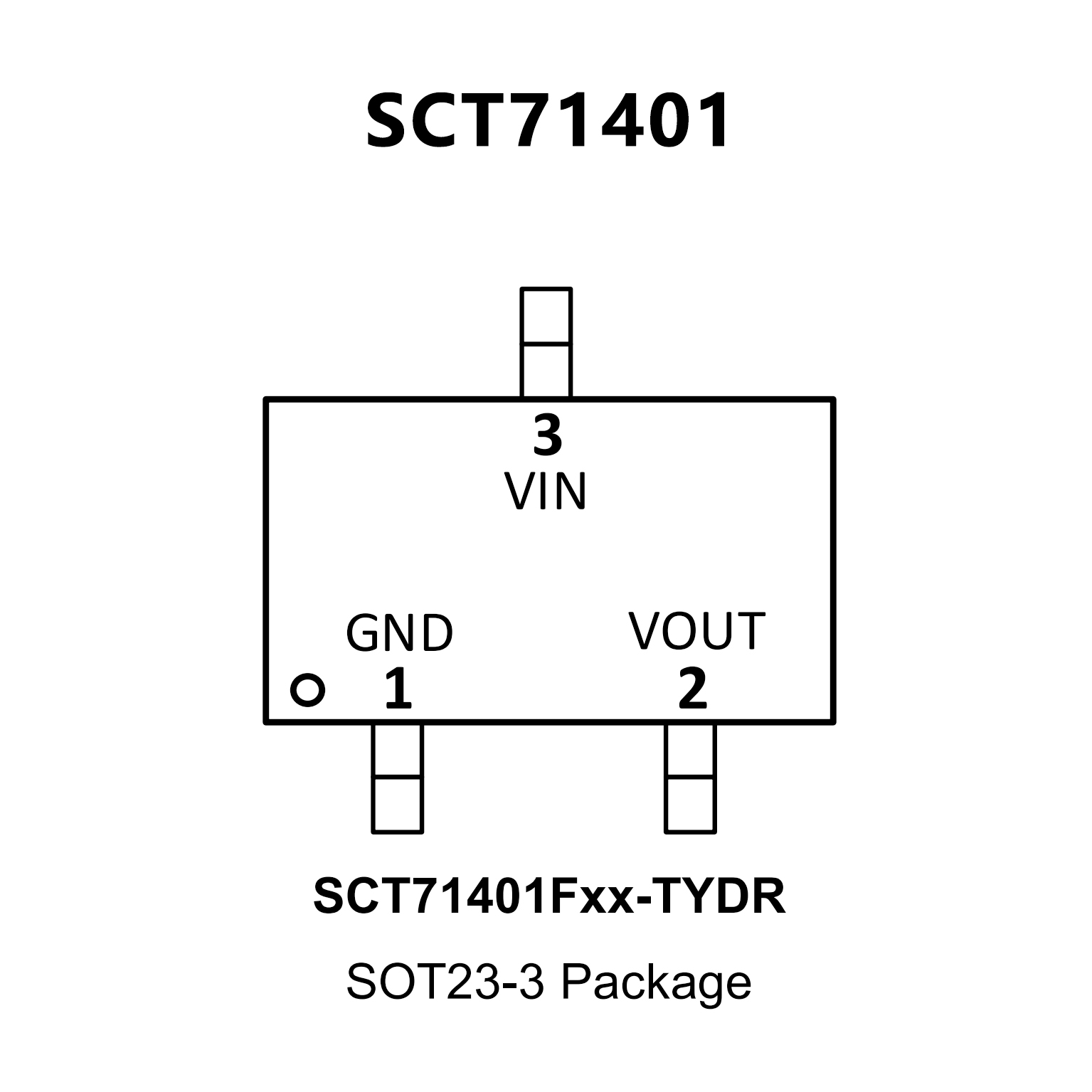

PIN CONFIGUTION

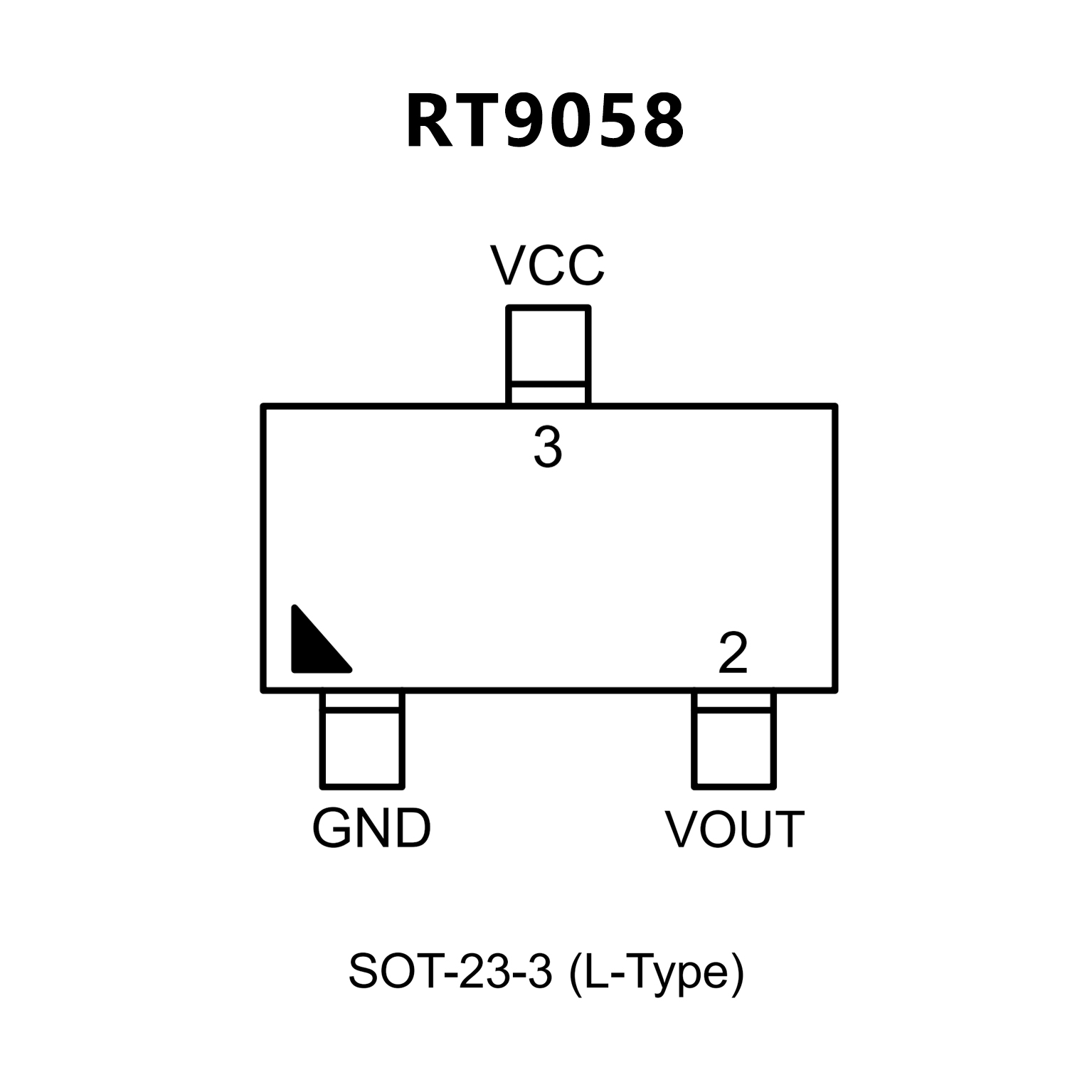

優勢替代
FEATURES
? 2μA Quiescent Current
? ±2% Output Accuracy
? 100mA Output Current
? 3.5V to 36V Input Voltage Range
? Dropout Voltage : 0.35V at 10mA/VCC 5V
0.5V at 10mA/VCC 3.5V
? Fixed Output Voltage : 2.5V, 3V, 3.3V, 5V, 6V, 9V,12V
? Stable with Ceramic or Tantalum Capacitors
? Current Limit Protection
? Over Temperature Protection
? SOT-23-3, SOT-89-3 Packages
? RoHS Compliant and Halogen Free
PIN CONFIGUTION
