Automotive Grade Start Stop Non Synchronous Boost Controller, SCT81420 Replace NCV887711D1R2G.
SCT81420.pdf優勢替代
FEATURES
? Automatic Enable Below Wake Up Threshold Voltage (Factory
Programmable)
? Override Disable Function
? Boost Mode Operation at Regulation Set Point
? 2% Output Accuracy Over Temperature Range
? Peak Current Mode Control with Internal Slope Compensation
? Externally Adjustable Frequency Operation
? Wide Input Voltage Range of 2 V to 40 V, 45 V Load Dump
? Low Quiescent Current in Sleep Mode (<12 A Typical)
? Cycle?by?Cycle Current Limit Protection
? Hiccup?Mode Overcurrent Protection (OCP)
? Thermal Shutdown (TSD)
? This is a Pb?Free Device
? NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC?Q100

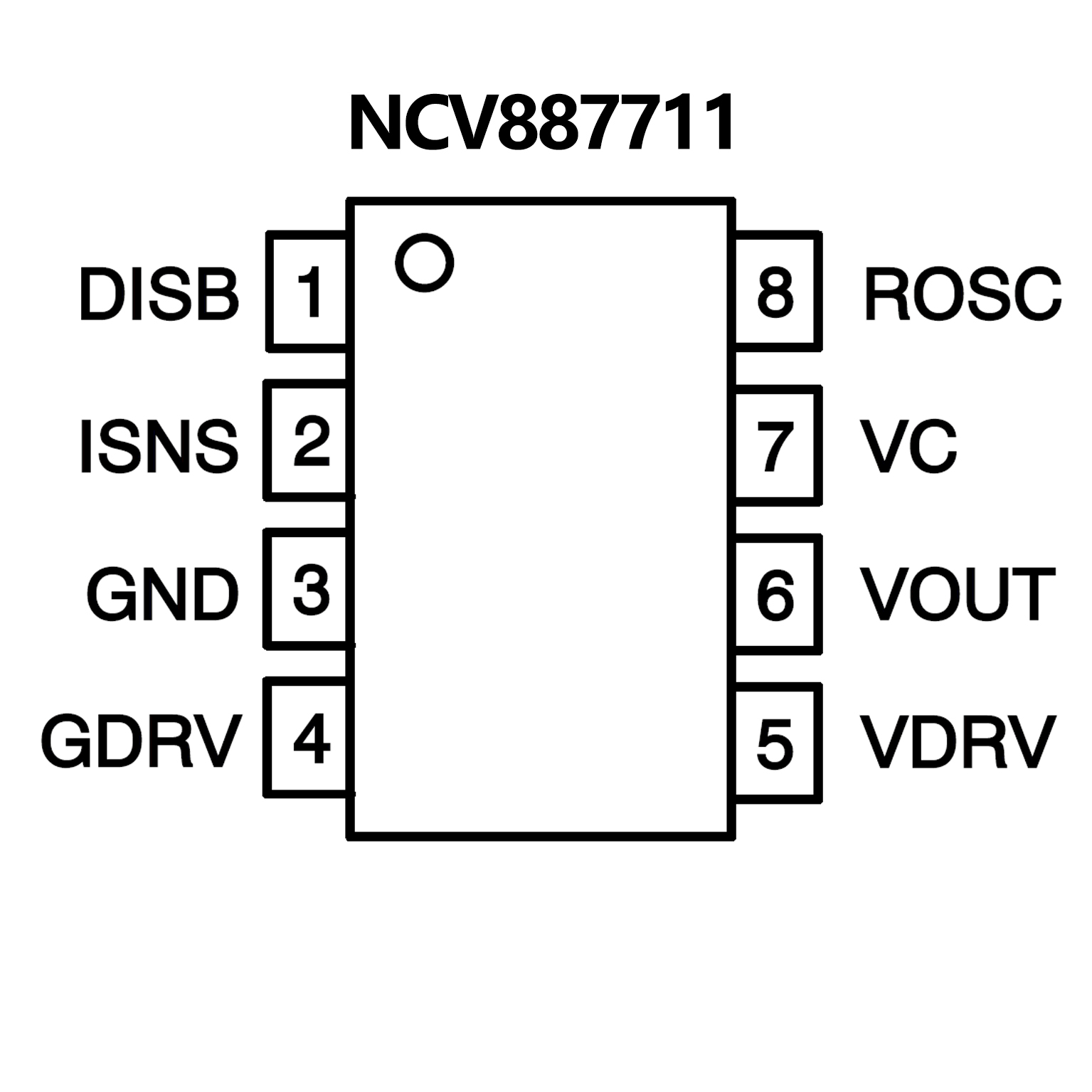

PIN CONFIGUTION
