Wide Vin 65V Non-synchronous Boost/Flyback/SEPIC Controller, SCT81621 Replace LM3481.
SCT81621
SCT81621.pdf
SCT81621.pdfFEATURES
? Wide Input Voltage Range: 2.92V-60V
? Low Shutdown Current 3.9uA
? Low Quiescent Operating Current: 470uA
? +/- 1.5% Feedback Reference Voltage
? Adjustable Switching Frequency: 100KHz to 2.2MHz
? Integrated Frequency Dither for EMI Mitigation
? External Frequency Synchronic
? External Compensation
? Pulse Skipping Mode
? Supports additional Slope Compensation
? 14ms Internal Soft-start Time
? Integrated Protection Feature
–Constant Peak-Current Protection Threshold
Over Input Voltage
–Output Overvoltage Protection
–Adjustable Under-voltage Lockout
–Hiccup Over Load Protection
–Thermal Shutdown Protection:165°C
? MSOP-10L(3mm*3mm)
PIN CONFIGUTION
優勢替代
FEATURES
? LM3481QMM are Automotive-Grade Products
That are AEC-Q100 Grade 1 Qualified (–40°C to
+125°C Operating Junction Temperature)
? 10-Lead VSSOP Package
? Internal Push-Pull Driver With 1-A Peak Current
Capability
? Current Limit and Thermal Shutdown
? Frequency Compensation Optimized With a
Capacitor and a Resistor
? Internal Softstart
? Current Mode Operation
? Adjustable Undervoltage Lockout With Hysteresis
? Pulse Skipping at Light Loads
? Key Specifications
– Wide Supply Voltage Range of 2.97 V to 48 V
– 100-kHz to 1-MHz Adjustable and
Synchronizable Clock Frequency
– ±1.5% (Over Temperature) Internal Reference
– 10-μA Shutdown Current (Over Temperature)
? Create a Custom Design Using the LM3481 with
the WEBENCH Power Designer

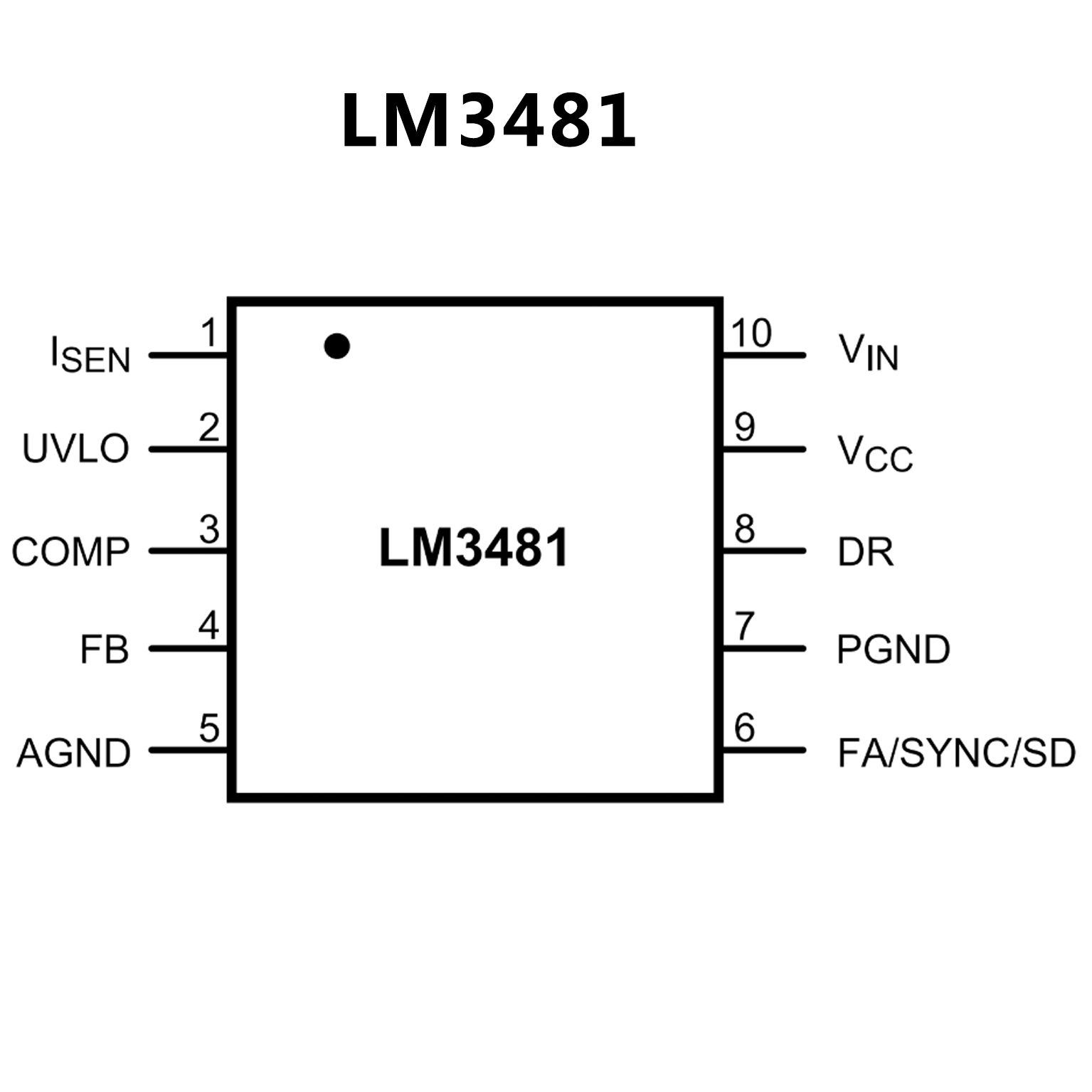

PIN CONFIGUTION
