Ultra Small RClamp? 2-Line ESD Protection,SGM05FB1E2 Replace Rclamp0542.
SGM05FB1E2
SGM05FB1E2.pdf
SGM05FB1E2.pdfFEATURES
? High ESD Withstand Voltage:
IEC 61000-4-2: ±12kV (Air)
IEC 61000-4-2: ±12kV (Contact)
? Low Profile Packages: XTDFN-0.6×0.3-2L and
UTDFN-1×0.6-2L
? Working Voltage: 5V and Below
? Rated Peak Pulse Current: 2.4A
? Low Channel Input Capacitance: 0.3pF (TYP)

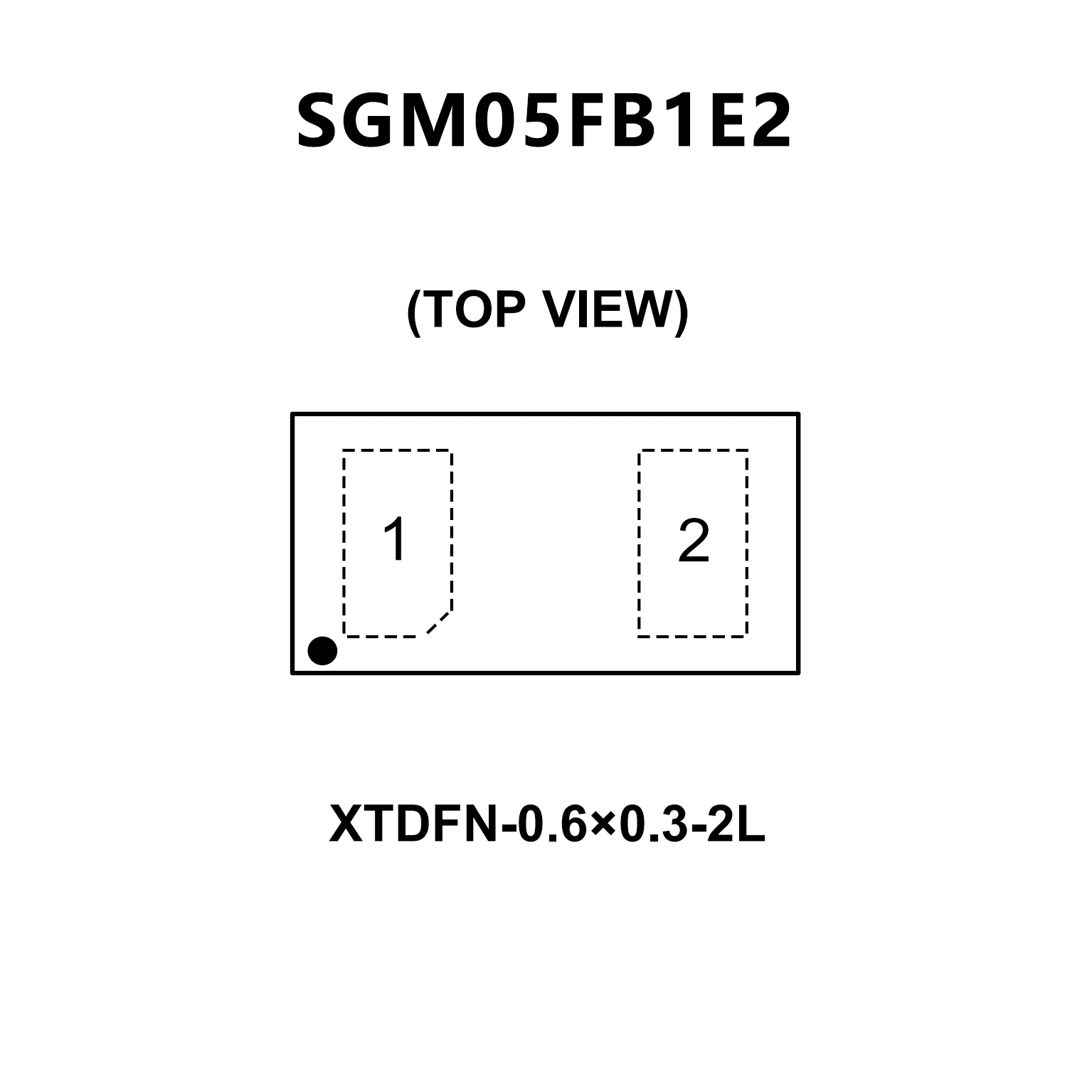

PIN CONFIGUTION
優勢替代
FEATURES
? High ESD withstand Voltage: +/-10kV (Contact)
and +/- 15kV (Air) per IEC 61000-4-2
? Able to withstand over 1000 ESD strikes per IEC
61000-4-2 Level 4
? Ultra-small 0201 package
? Protects two high-speed data lines
? Low reverse current: <1nA typical (VR=5V)
? Working voltage: 5V
? Low capacitance: 0.30pF maximum
? Dynamic resistance: 0.67 Ohms (Typ)
? Solid-state silicon-avalanche technology

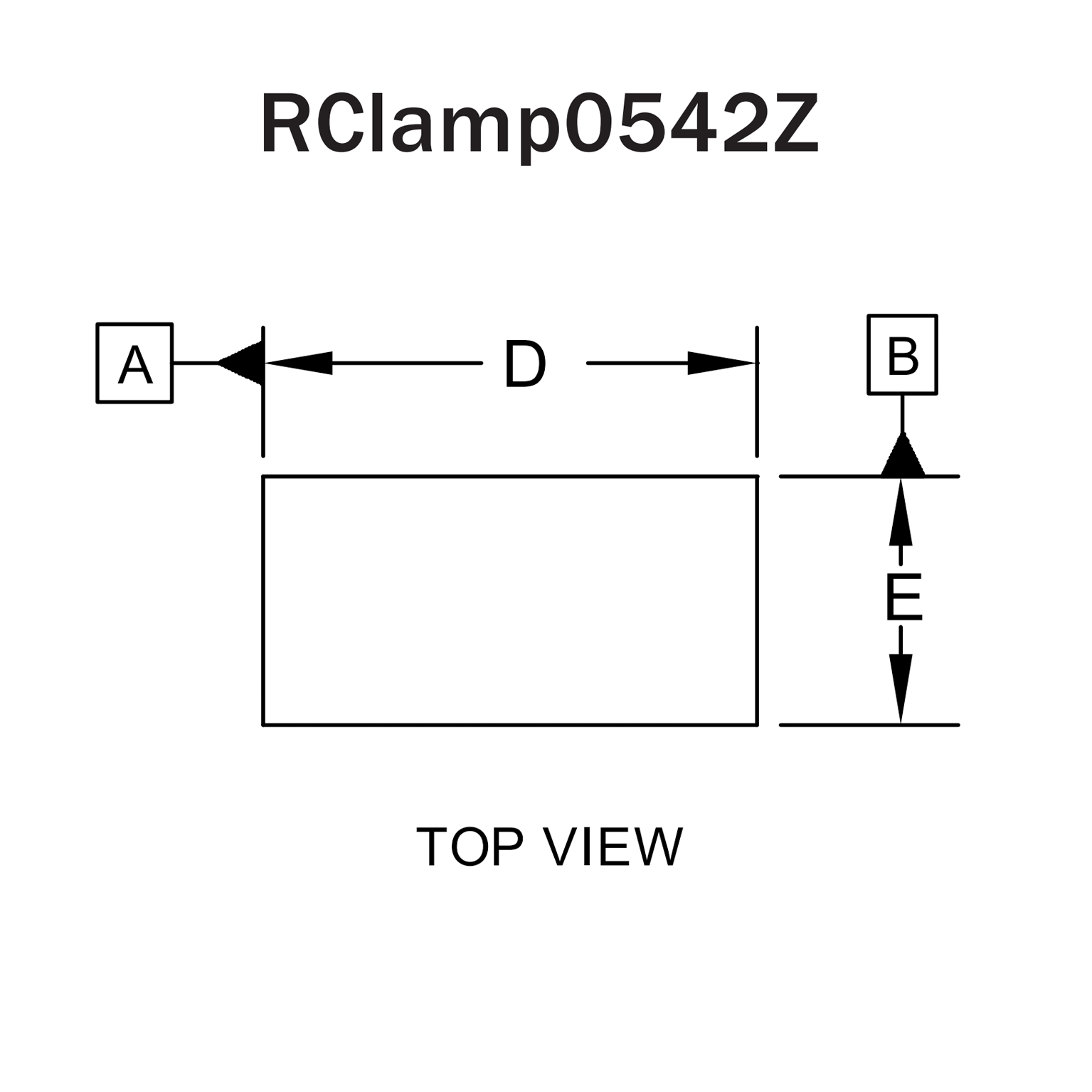

PIN CONFIGUTION
