Femto-Farad Capacitance 2-Channel ESD Protection, SGM05FB2E2 P2P ESD5V3U2U.
SGM05FB2E2
SGM05FB2E2.pdf
SGM05FB2E2.pdfFEATURES
? High ESD Withstand Voltage:
IEC 61000-4-2: ±18kV (Air)
IEC 61000-4-2: ±16kV (Contact)
? Rated Peak Pulse Current: 2.5A
? 0.3pF (TYP) Channel Input Capacitance
? Low Profile Package: UTDFN-1×0.6-3L
? Working Voltage: 5.0V and Below

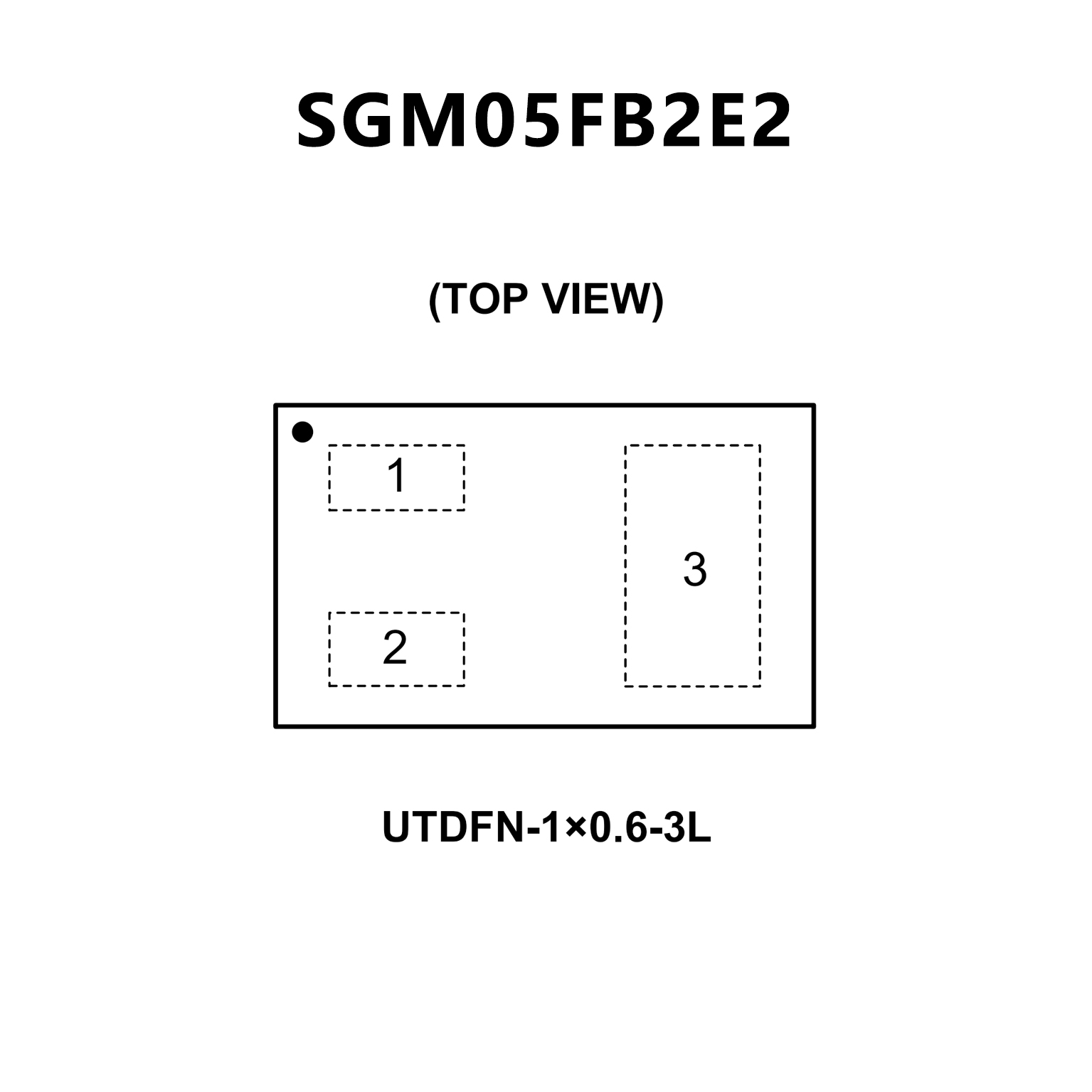

PIN CONFIGUTION
優(yōu)勢(shì)替代
FEATURES
? ESD / Transient protection of High-Speed data lines
exceeding
– IEC61000-4-2 (ESD): ± 20 kV (air / contact)
– IEC61000-4-4 (EFT): ±50 A (5/50 ns)
– IEC61000-4-5 (surge): ±3 A (8/20 μs)
? Maximum working voltage: VRWM 5.3 V
? Extremely low capacitance: down to 0.4 pF
? Very low reverse current: IR < 1 nA typical
? Pb-free package (RoHS compliant) and halogen free
package

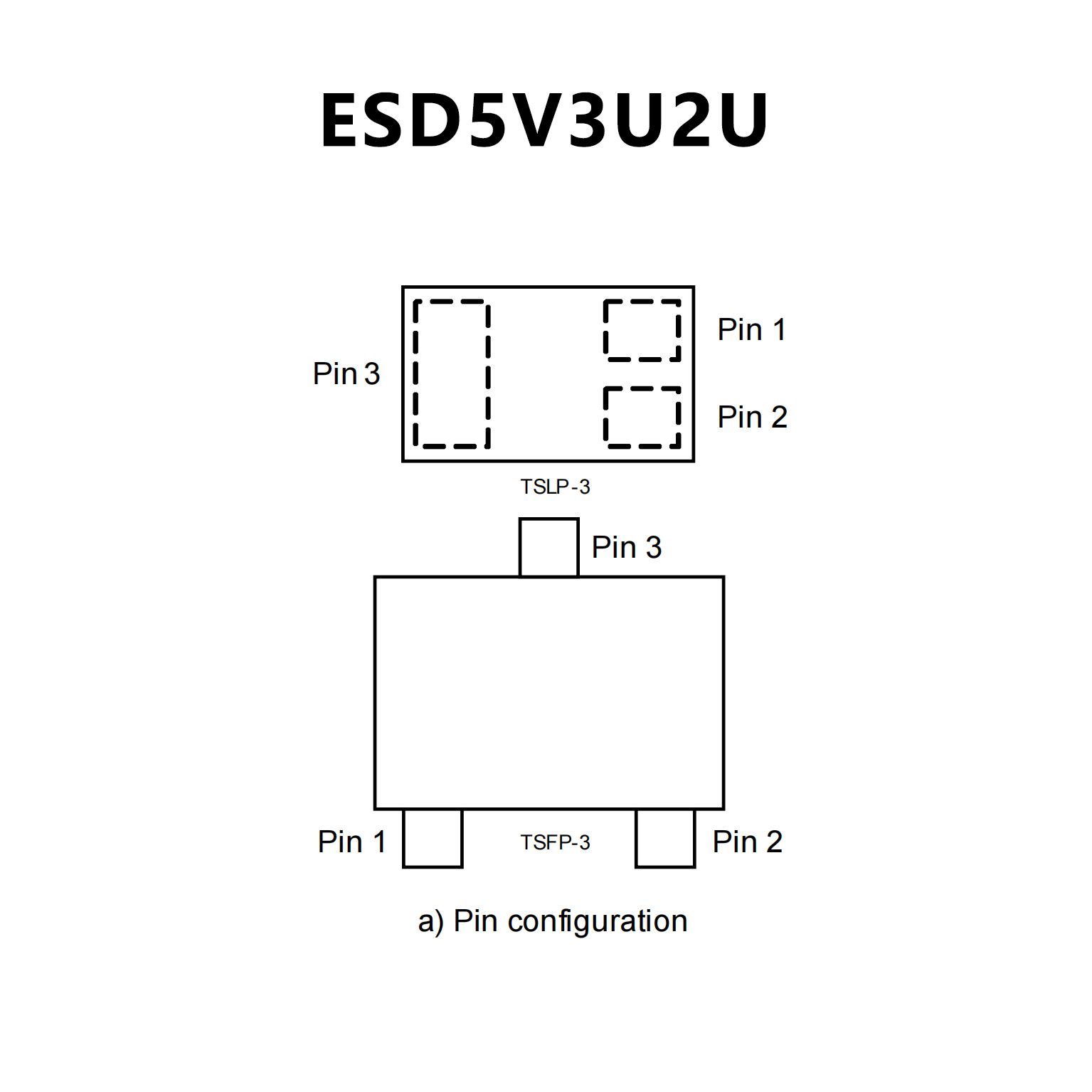

PIN CONFIGUTION
