SGM11103F.pdf? Supply Voltage Range: 2.4V to 3V
? GPIO Controller
? Operating Frequency Range: 0.1GHz to 6GHz
? Low Insertion Loss: 0.5dB (TYP) at 2.7GHz
? High Isolation: 20dB (MIN) at 2.7GHz
? Advanced Silicon-On-Insulator (SOI) Process
? No External DC Blocking Capacitors Required

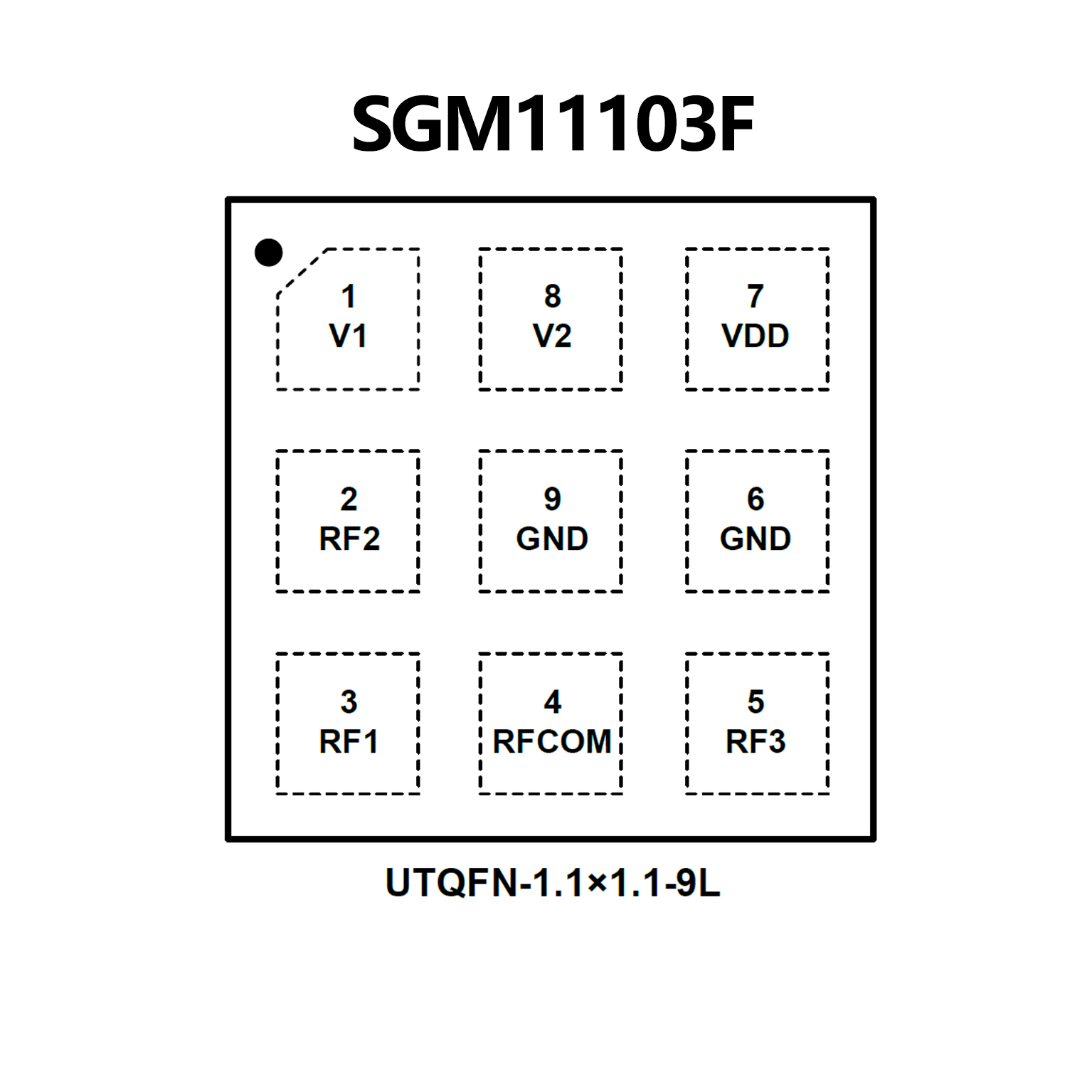

? Available in a Green UTQFN-1.1×1.1-9L Package

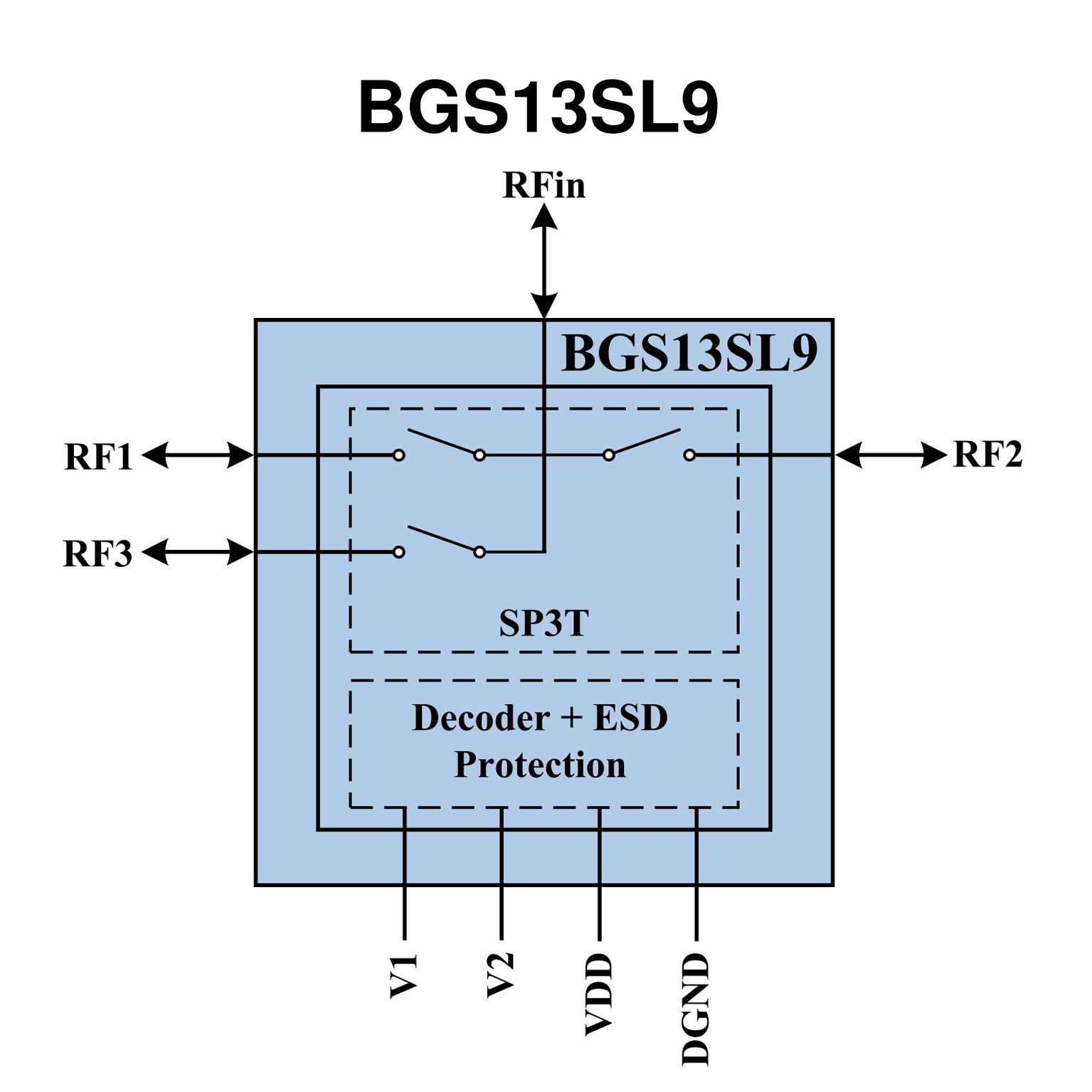

? 3 high-linearity TRx paths with power handling
capability of up to 30 dBm
? High switching speed, ideal for WLAN and
Bluetooth applications
? All ports fully bi-directional
? No decoupling capacitors required if no DC applied
on RF lines
? Low insertion loss
? Low harmonic generation
? High port-to-port-isolation
? 0.1 to 3 GHz coverage
? High ESD robustness
? On-chip control logic
? Very small leadless and halogen free package TSLP-9-3
(1.15x1.15mm2) with super low height of 0.31mm
? RoHS compliant package
