High Linearity SP3T RF Switch,SGM11103F Replace MXD8631L.
SGM11103F
SGM11103F.pdf
SGM11103F.pdfFEATURES
? Supply Voltage Range: 2.4V to 3V
? GPIO Controller
? Operating Frequency Range: 0.1GHz to 6GHz
? Low Insertion Loss: 0.5dB (TYP) at 2.7GHz
? High Isolation: 20dB (MIN) at 2.7GHz
? Advanced Silicon-On-Insulator (SOI) Process
? No External DC Blocking Capacitors Required
? Available in a Green UTQFN-1.1×1.1-9L Package

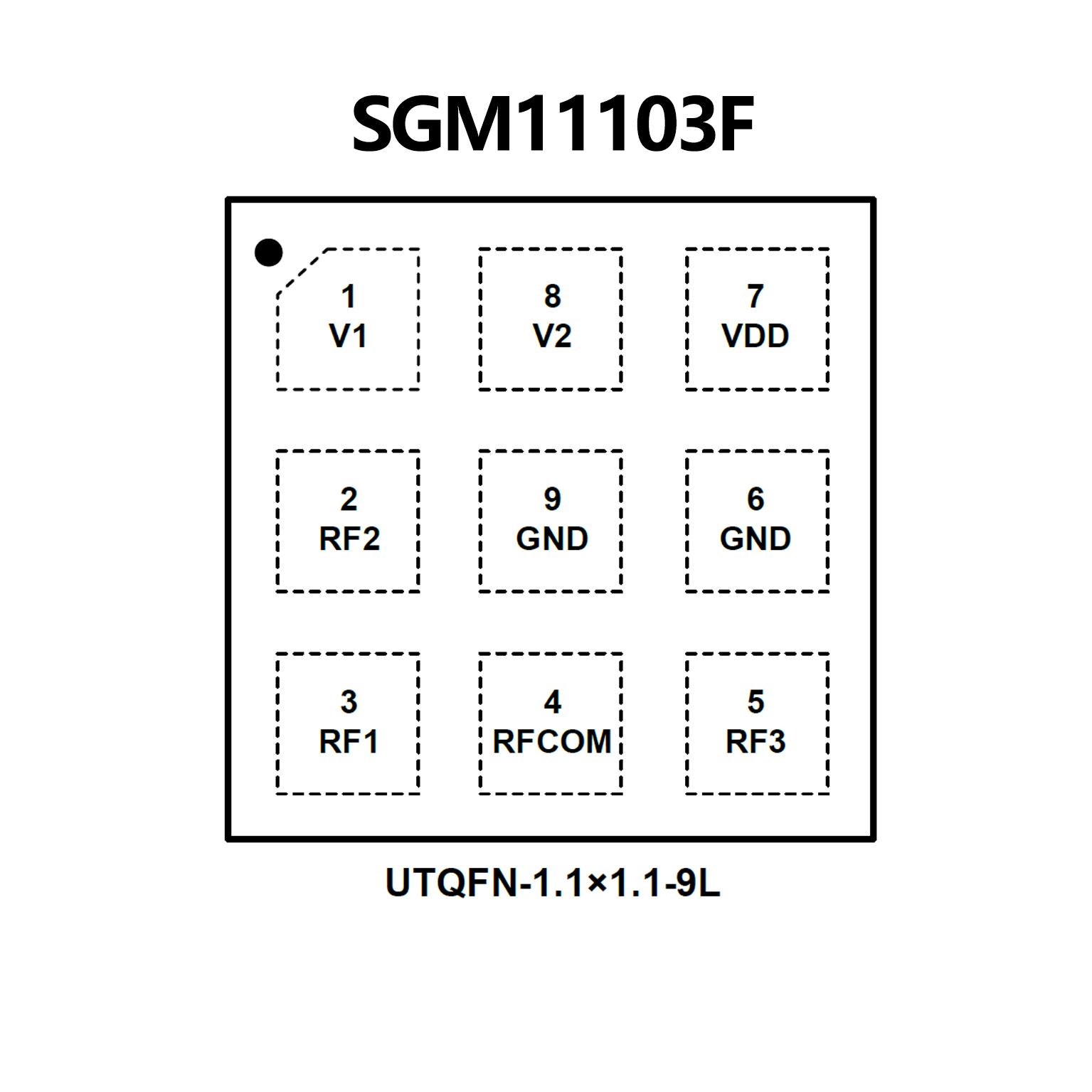

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Broadband frequency range: 0.1 to 3.0 GHz
? Low insertion: 0.50 dB @ 2.7 GHz
? High isolation: 25 dB up to 2.7 GHz
? No external DC blocking capacitors required
? Positive low voltage control: VC = 1.6 to 3.00
V, VDD = 2.5 to 3.0 V
? Small, QFN (9-pin, 1.15mm x 1.15mm x
0.55mm) package

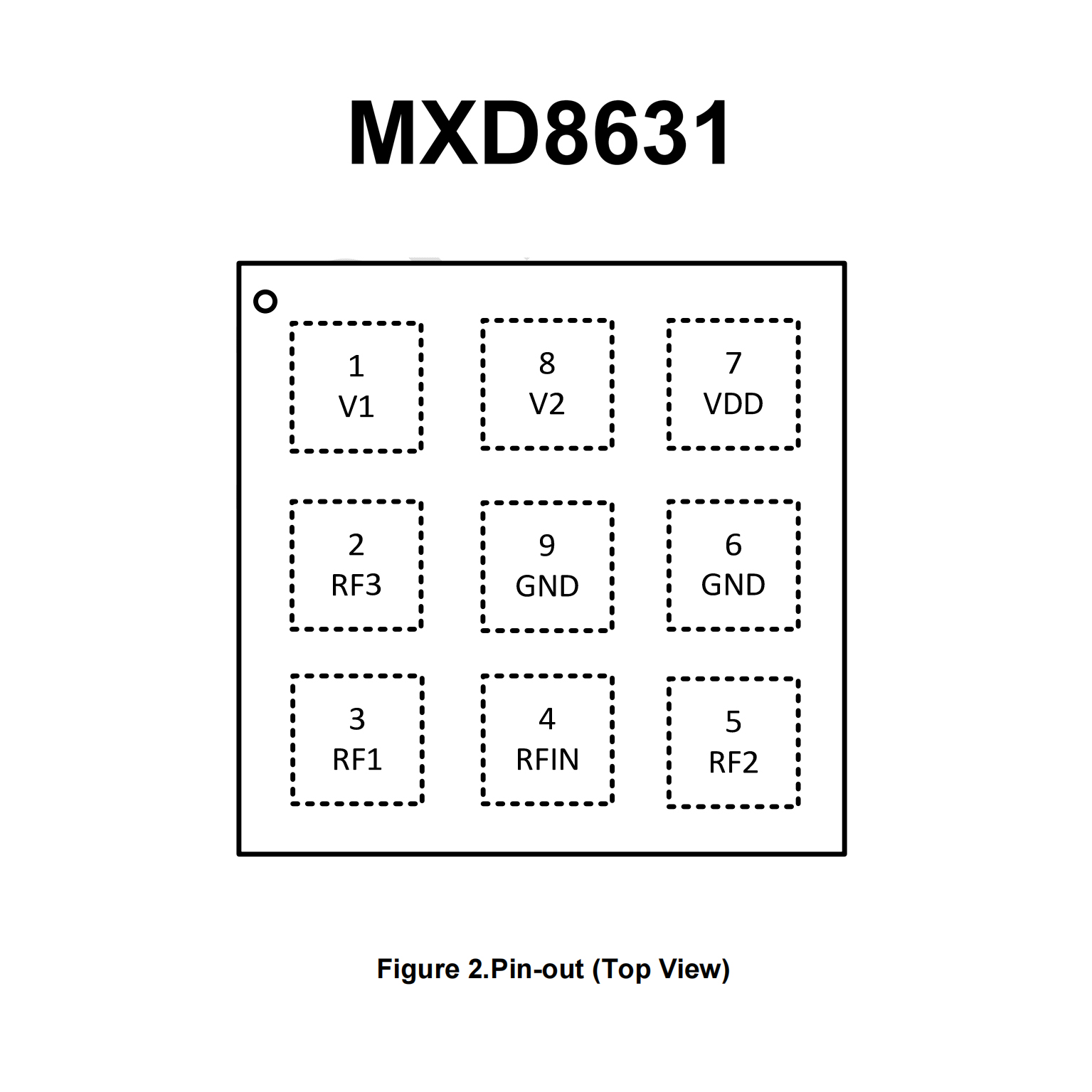

PIN CONFIGUTION
