Broadband High Linearity DP4T Routing Switch, SGM12024A Replace QM11024.
SGM12024A
SGM12024A.pdf
SGM12024A.pdfFEATURES
? Operating Frequency Range: 0.4GHz to 5.0GHz
? Low Insertion Loss
? Input 0.1dB Compression Point: 38dBm
? High Isolation
? MIPI RFFE V2.1 Interface Compatible
? No External DC Blocking Capacitors Required
? Available in a Green UTQFN-2×2-16AL Package

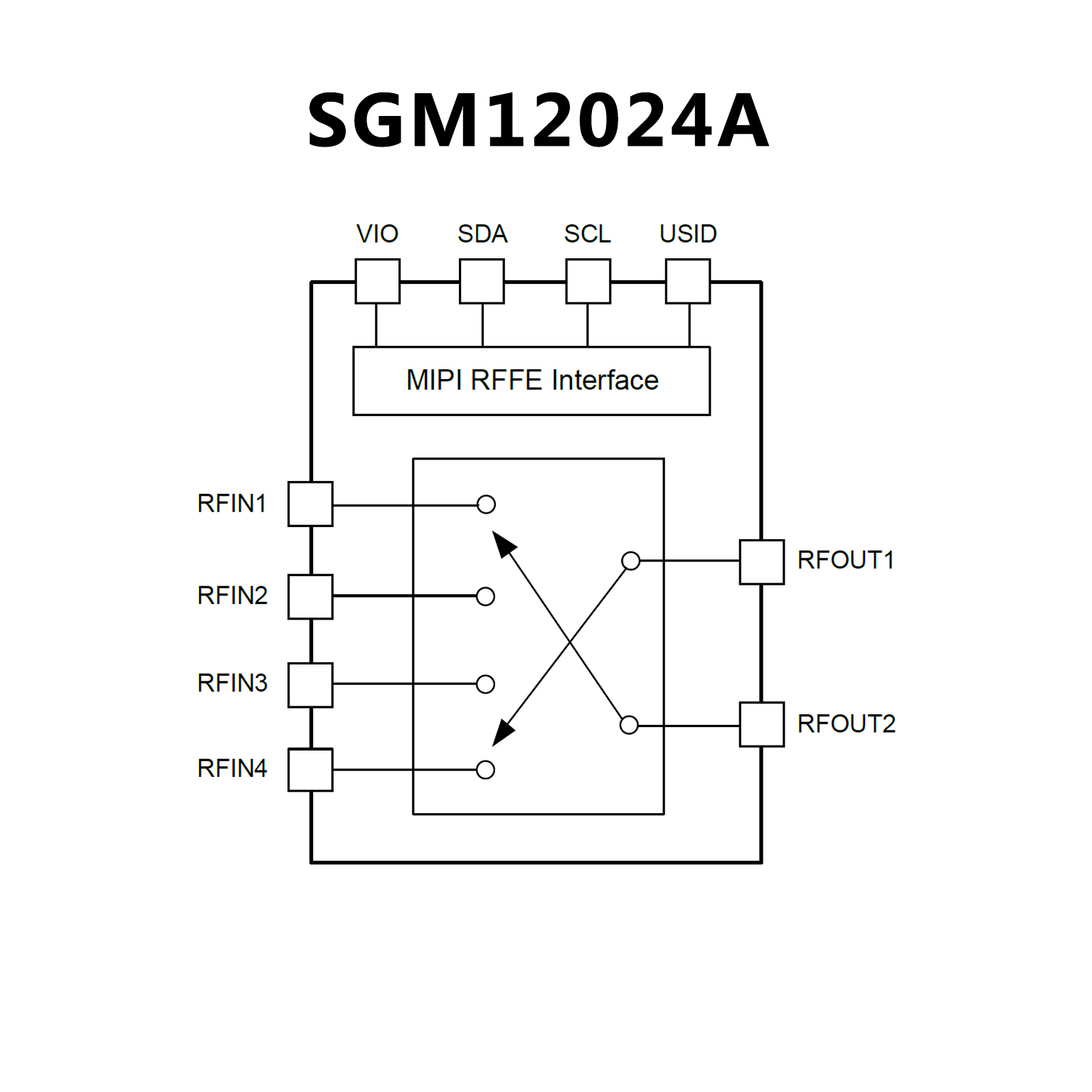

PIN CONFIGUTION
優勢替代
FEATURES
? Excellent Insertion Loss and Isolation performance
? High Linearity
? RFFE 2.1 Control Interface
o UDR Mask write capable (R/WM)
? Broadband Performance Suitable for Multiple Air
Interfaces including 5G applications.
? Slave ID for Multiple Placements on the Same Board
? Very Low Current Consumption
? DC blocking capacitors are not required in typical
applications
? Single VIO supply
PIN CONFIGUTION
