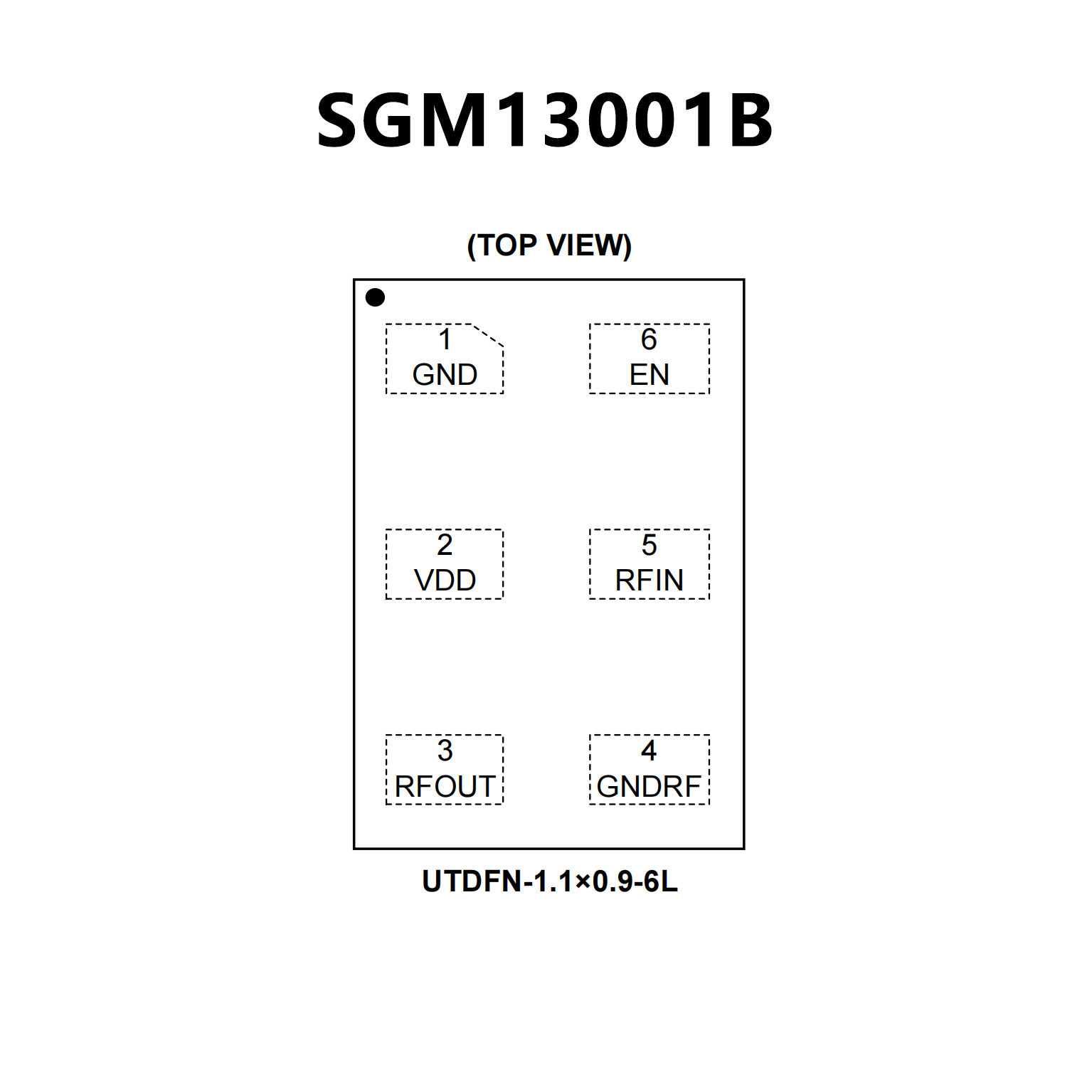

SGM13001B.pdf? High Gain: 18.3dB at 1575.42MHz
? Covers full GNSS L1 band, from 1559 MHz to 1610 MHz
and LTE band 32 from 1452 MHz to 1496 MHz
? GNSS:
Noise figure = 0.65 dB
Gain 18 dB
High input 1 dB compression point of -7 dBm
High out of band IP3i of 6 dBm
? LTE B32:
Noise figure = 0.65 dB
Gain 20 dB
High input 1 dB compression point of -8.5 dBm
? Supply voltage 1.5 V to 3.1 V
? Optimized performance at low supply current
of 4.2 mA
? Power-down mode current consumption < 1 μA
? Integrated temperature stabilized bias for easy design
? Requires only one input matching inductor and one
supply decoupling capacitor
? Input and output DC decoupled
? ESD protection on all pins (HBM > 2 kV)
? Integrated matching for the output

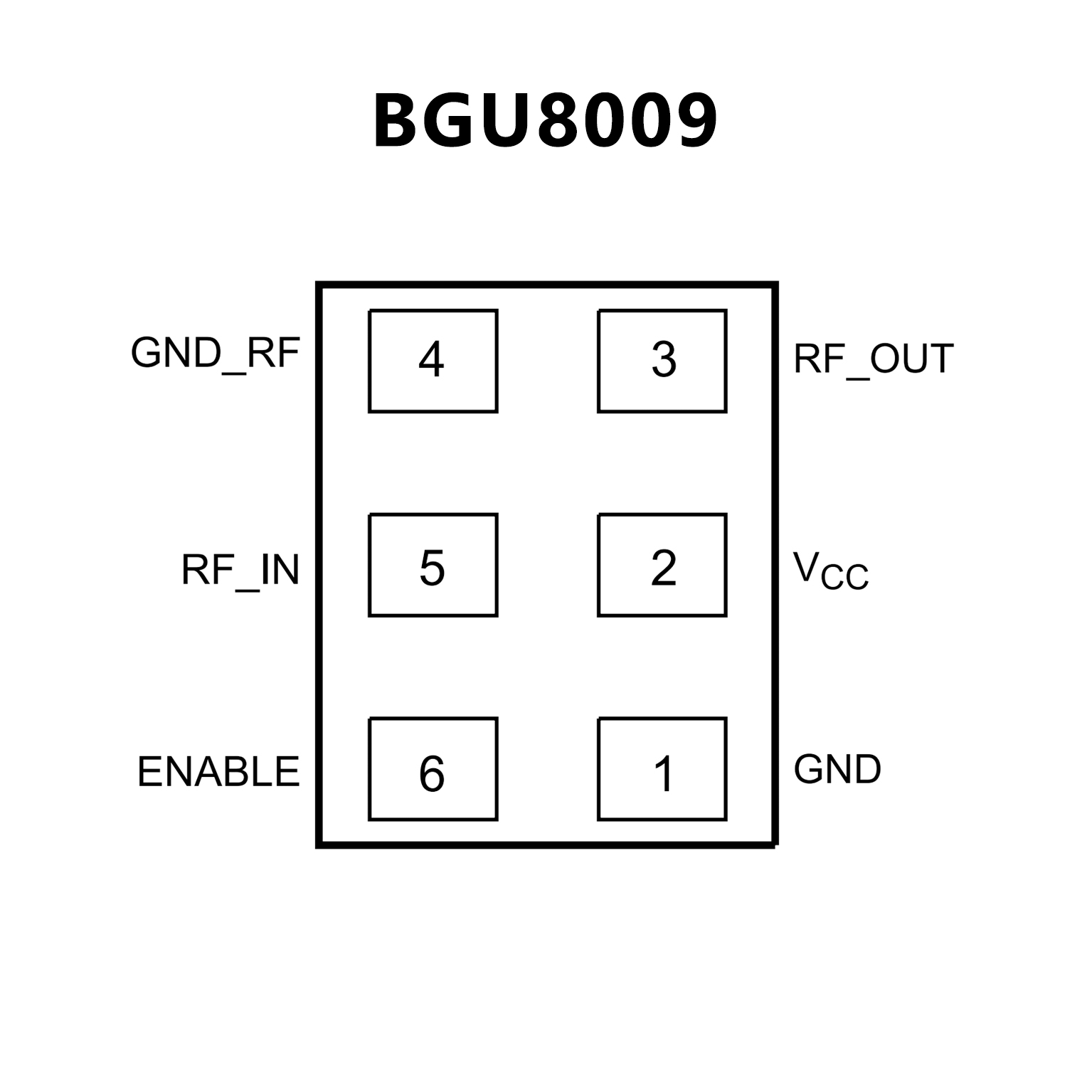

? Available in a 6-pins leadless package 1.1 mm × 0.9 mm
× 0.47 mm; 0.4 mm pitch:
SOT1230
? 180 GHz transit frequency - SiGe:C technology
? Moisture sensitivity level 1
