MXDLN16U GPS Low Noise Amplifier Datasheet,SGM13001B Replace MXDLN16U.
SGM13001B
SGM13001B.pdf
SGM13001B.pdfFEATURES
? High Gain: 18.3dB at 1575.42MHz
? Low Noise Figure: 0.90dB at 1575.42MHz
? Low Operation Current: 6.5mA
? Current Less than 1μA in Power Down Mode
? Operating Frequency Range:
1550MHz to 1615MHz
? Single Supply Voltage Range: 1.6V to 3.1V
? Low Cost BOM
? Lead-Free and RoHS Compliant
? Available in a Green UTDFN-1.1×0.9-6L Package

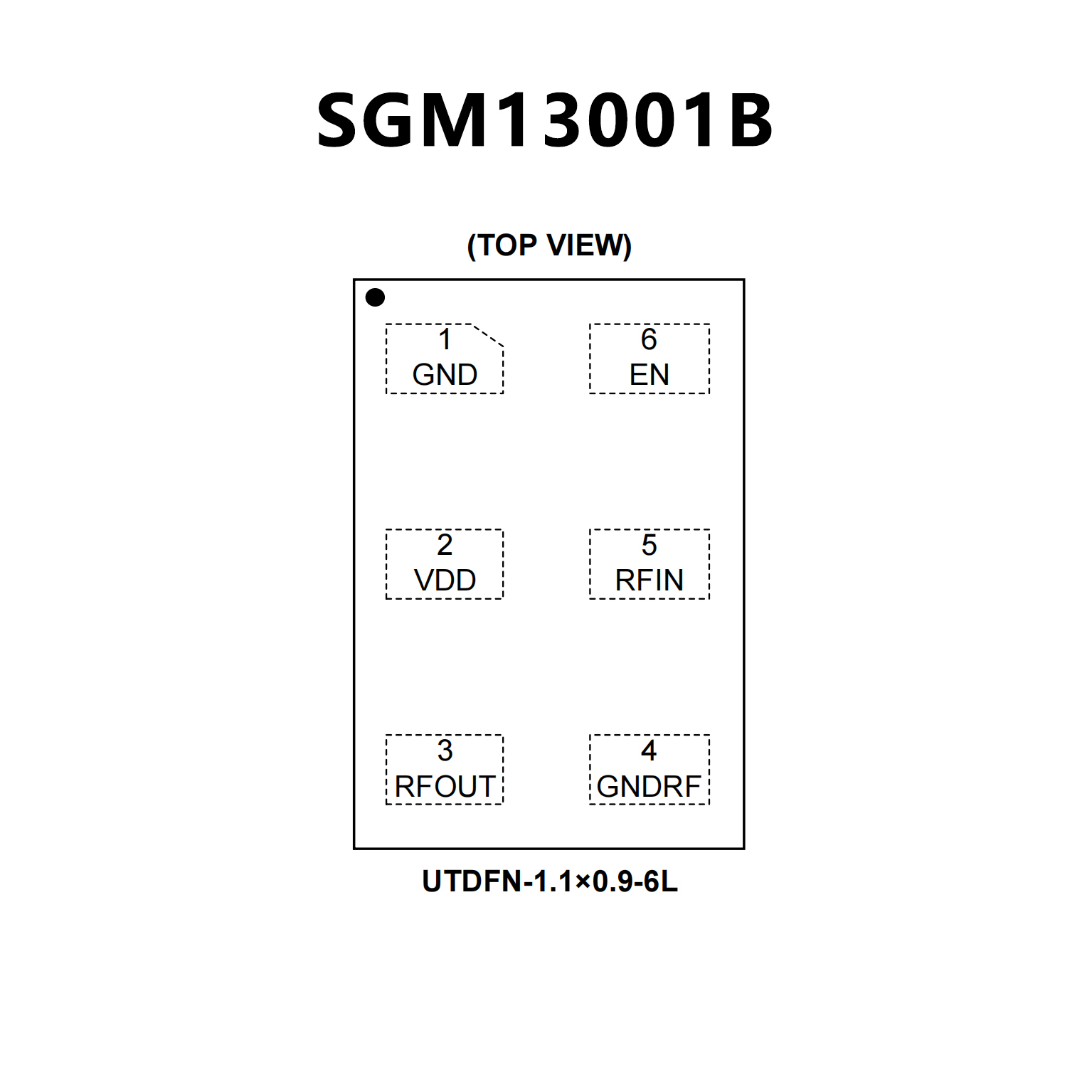

PIN CONFIGUTION
優勢替代
FEATURES
? High Gain: 19dB
? Low noise figure 0.7dB @ 1575.42MHz
? Low operation current 6mA & PD current less
than 1uA
? 3.6mA current under 1.2V power supply
? Single supply voltage range 1.2V to 2.85V
? Small package 1.1mmx0.9 mmx0.45mm
? Low cost BOM
? Lead-Free and RoHS-Compliant

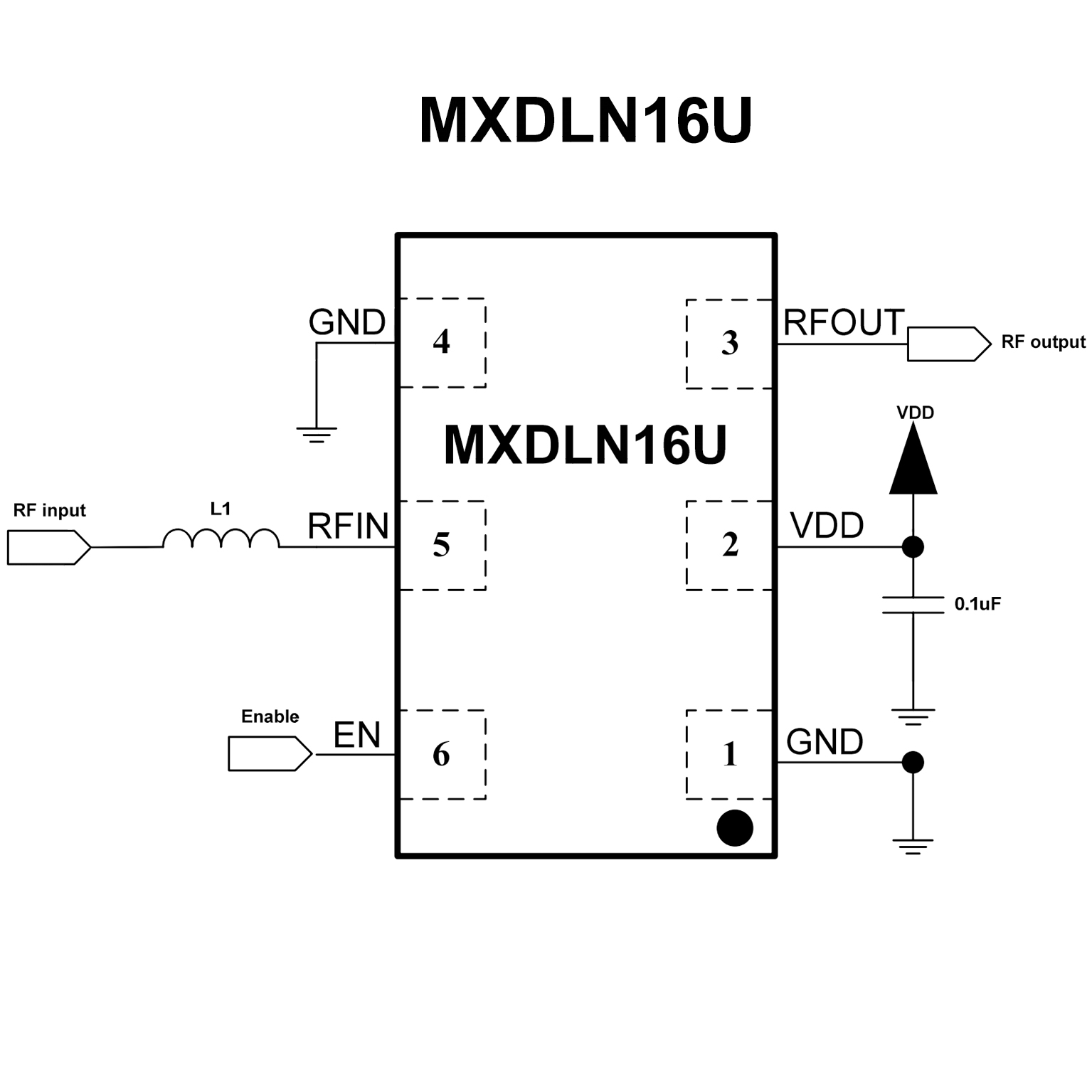

PIN CONFIGUTION
