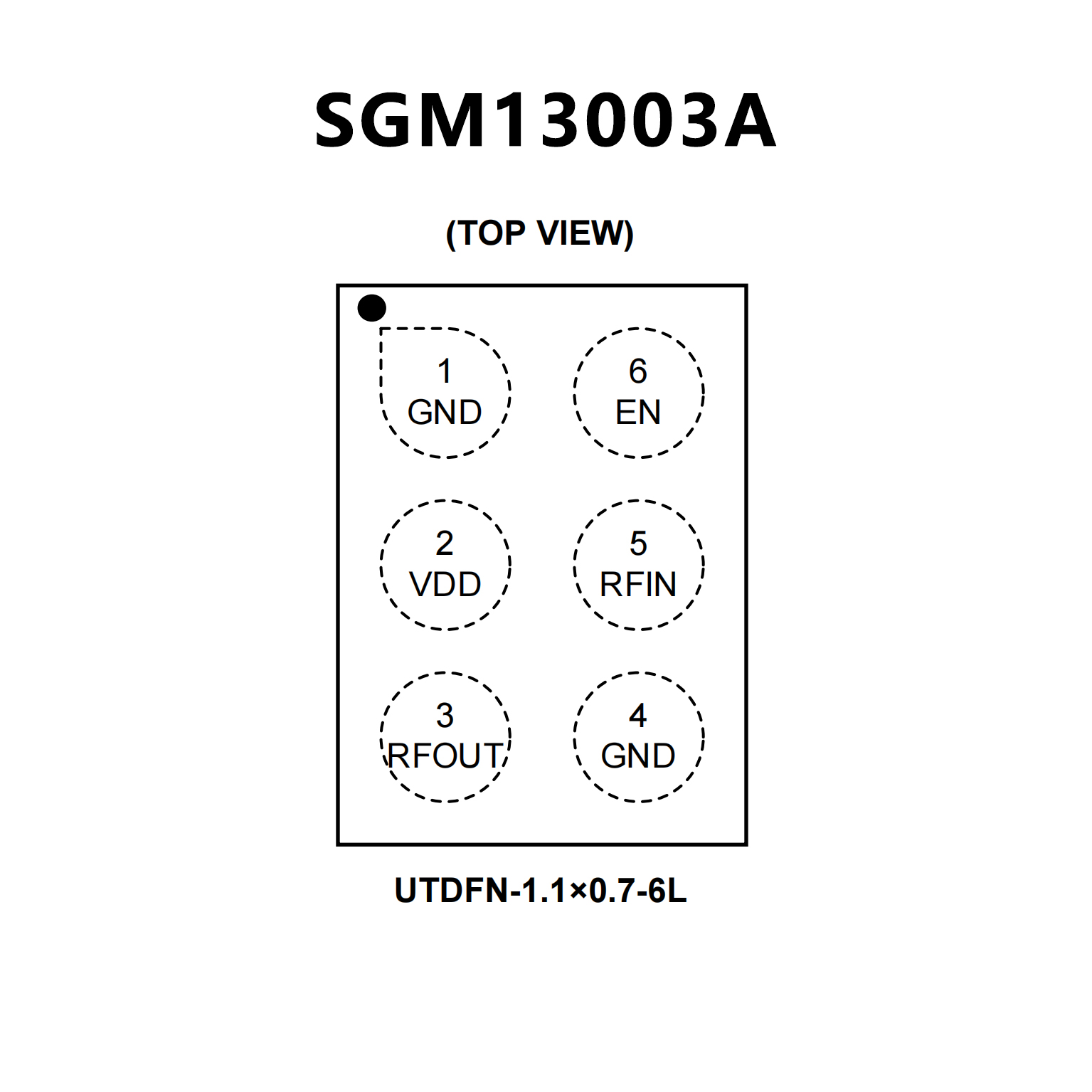

SGM13003A.pdf
? Optimized performance at a low supply current of 1.2 mA
? Covers full GNSS L1 band, from 1559 MHz to 1610 MHz
? Noise figure = 0.80 dB
? Gain 17.5 dB
? Input 1 dB compression point of -16 dBm
? Out of band IP3i of -8 dBm
? Supply voltage 1.5 V to 3.1 V
? Self-shielding package concept
? Integrated supply decoupling capacitor
? Power-down mode current consumption < 1 mA
? Integrated temperature stabilized bias for easy design
? Requires only one input matching inductor
? Integrated DC blocking at both RF input and output
? ESD protection on all pins (HBM > 2 kV)
? Integrated matching for the output

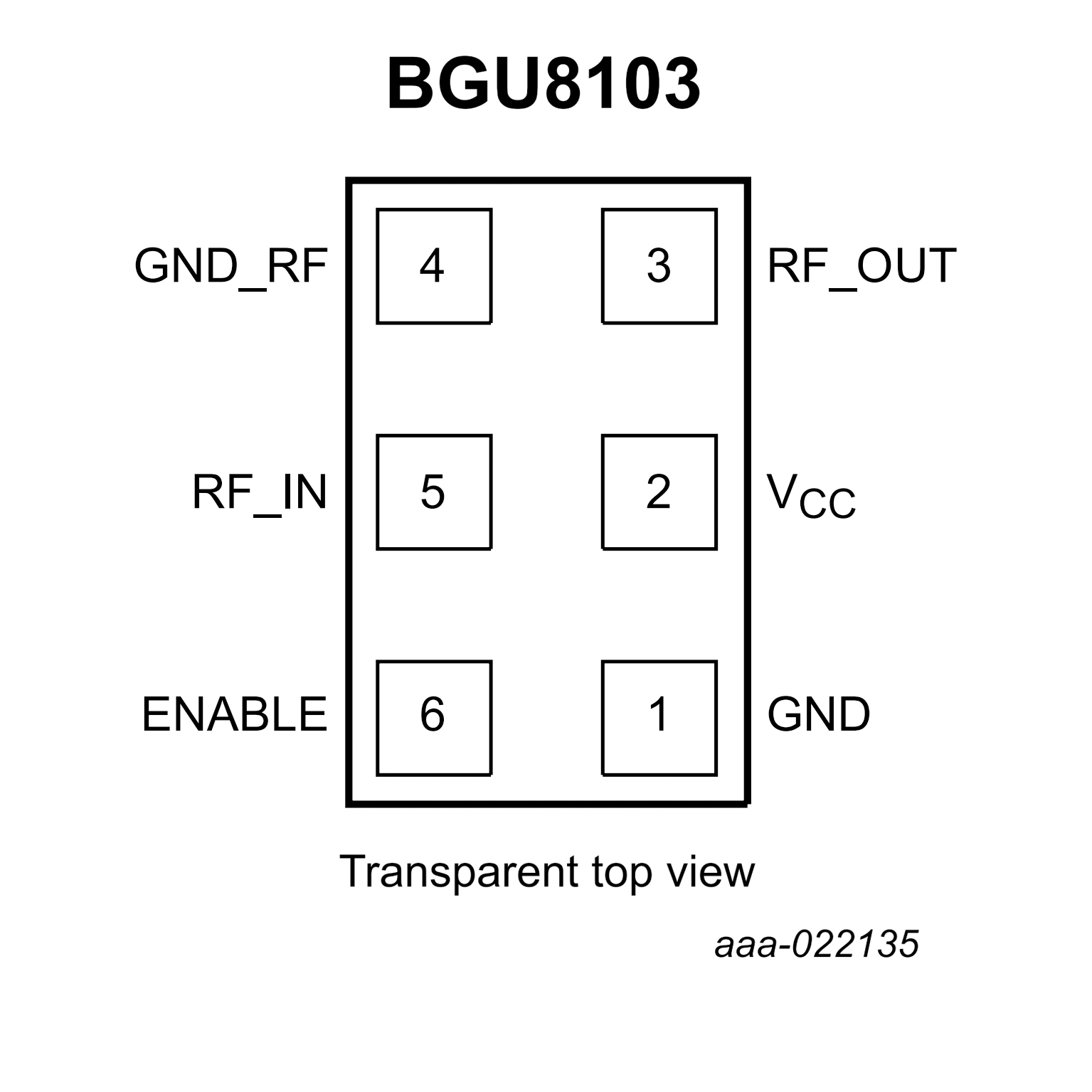

? Available in a 6-pin leadless package 1.1 mmx0.7 mm
x0.37 mm; 0.4 mm pitch: SOT1232
? 180 GHz transit frequency - SiGe:C technology
? Moisture sensitivity level 1
