SiGe Low Noise Amplifier for Dual-Band GNSS Applications Rev 1.2, SGM13003A P2P MXDLN14TP.
SGM13003A
SGM13003A.pdf
SGM13003A.pdfFEATURES
? High Gain:
17.0dB at 1176.45MHz
18.0dB at 1227.60MHz
17.4dB at 1575.42MHz
? Low Noise Figure:
0.96dB at 1176.45MHz
0.93dB at 1227.60MHz
1.00dB at 1575.42MHz
? Low Operation Current: 2.2mA
? Current Less than 1μA in Power Down Mode
? Operating Frequency Range:
1160MHz to 1300MHz
1550MHz to 1615MHz
? Single Supply Voltage Range: 1.5V to 3.6V
? Low Cost BOM
? Lead-Free and RoHS Compliant
? Available in a Green UTDFN-1.1×0.7-6L Package

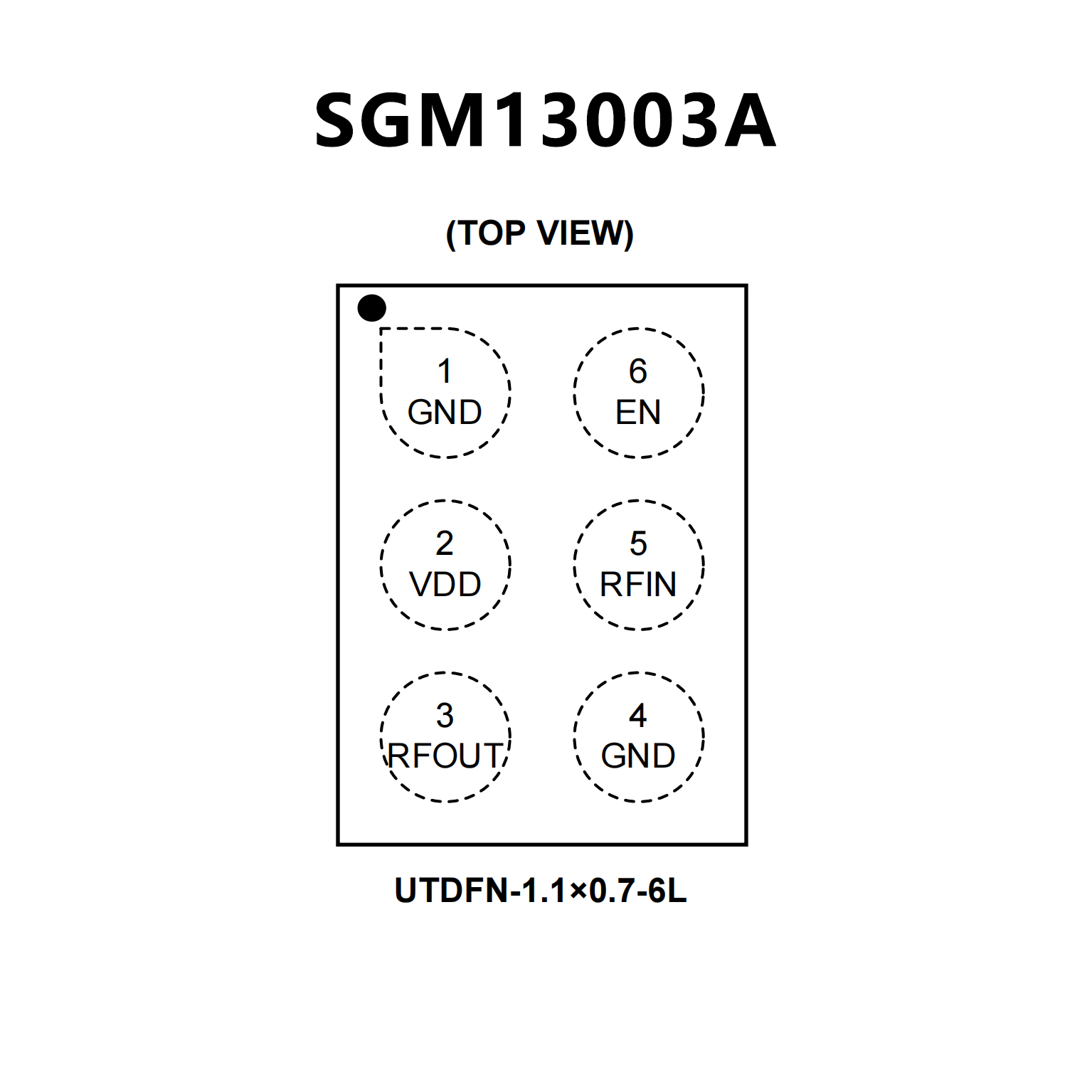

PIN CONFIGUTION
優勢替代
FEATURES
? High Gain:
18.0dB @ 1176.45MHz
18.2dB @ 1227.6MHz
17.5dB @ 1575.42MHz
? Low noise figure:
0.60dB @ 1176.45MHz
0.60dB @ 1227.6MHz
0.50dB @ 1575.42MHz
? Low operation current 3.3mA & PD current
less than 1uA
? Single supply voltage range 1.6V to 3.6V
? Small package 1.1mmx0.7mmx0.45mm,MSL1
? Low cost BOM
? Lead-Free and RoHS-Compliant

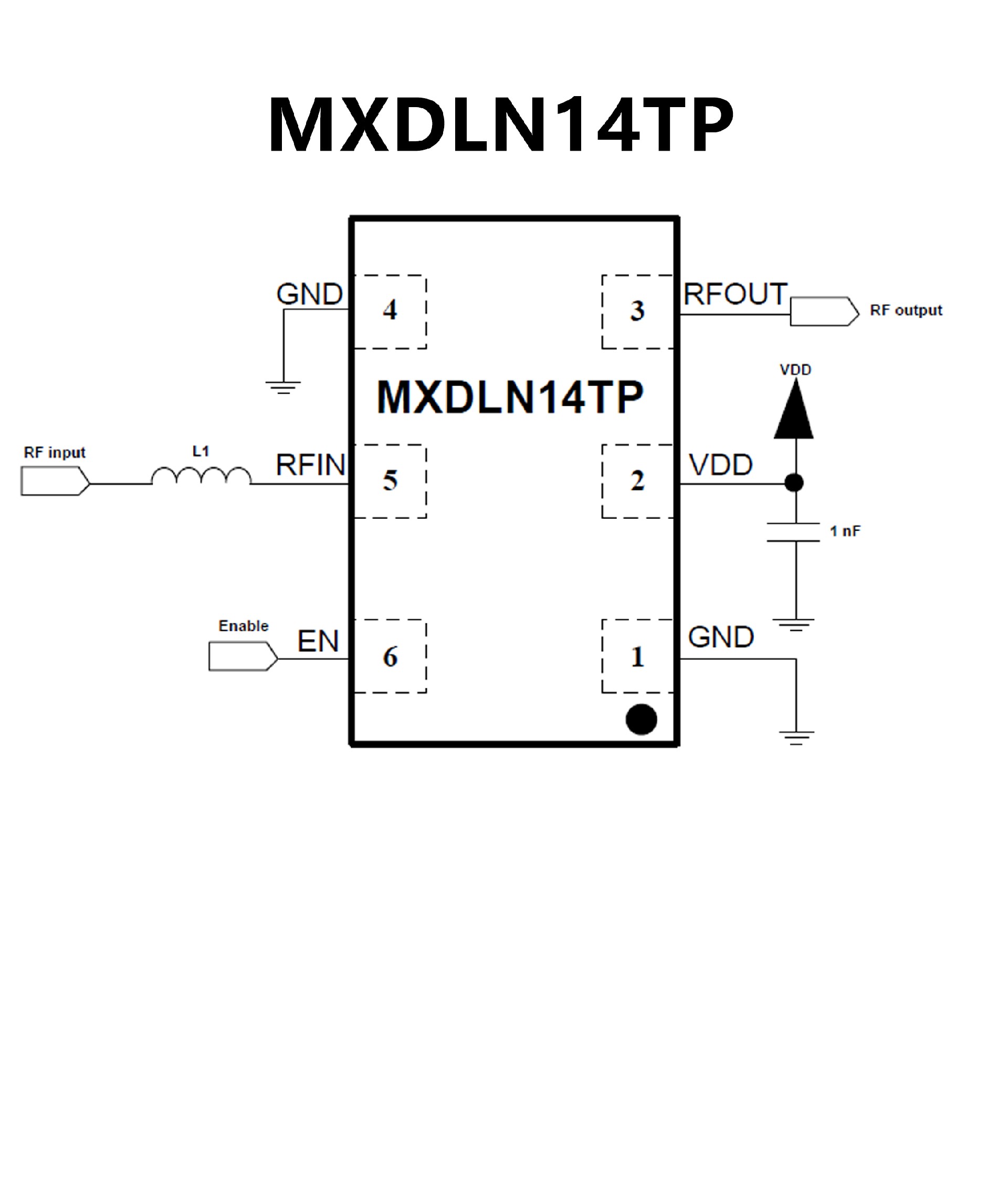

PIN CONFIGUTION
