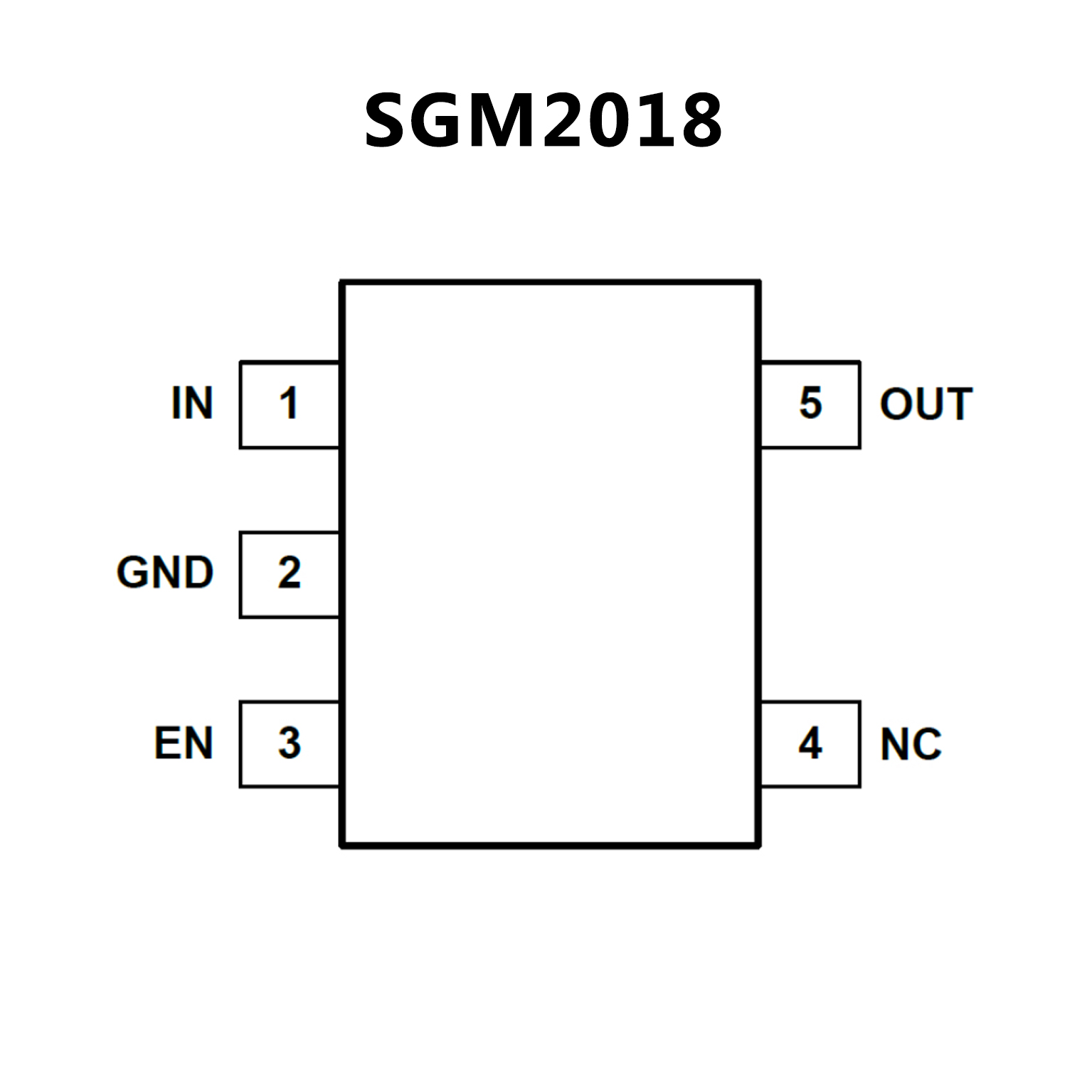

SGM2018.pdf? Fixed Output Voltage Versions:
1.8V, 2.8V, 3.0V and 3.3V
? Input Voltage Range: 1.7V to 5V
? Output Voltage Accuracy: ±1.2% at +25℃
? Low Dropout Voltage: 70mV (TYP) at 100mA
? Ultra-Low Current Consumption: 1μA (TYP)
? 250mA Nominal Output Current
? Low Reverse Leakage Current:
0.4μA (TYP) when VOUT > VIN
? Built-In Over-Temperature Protection
? Built-In Over-Current Protection Circuit
? Supports 1.8V Logic for EN Pin
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5 and UTDFN-1×1-4AL Packages

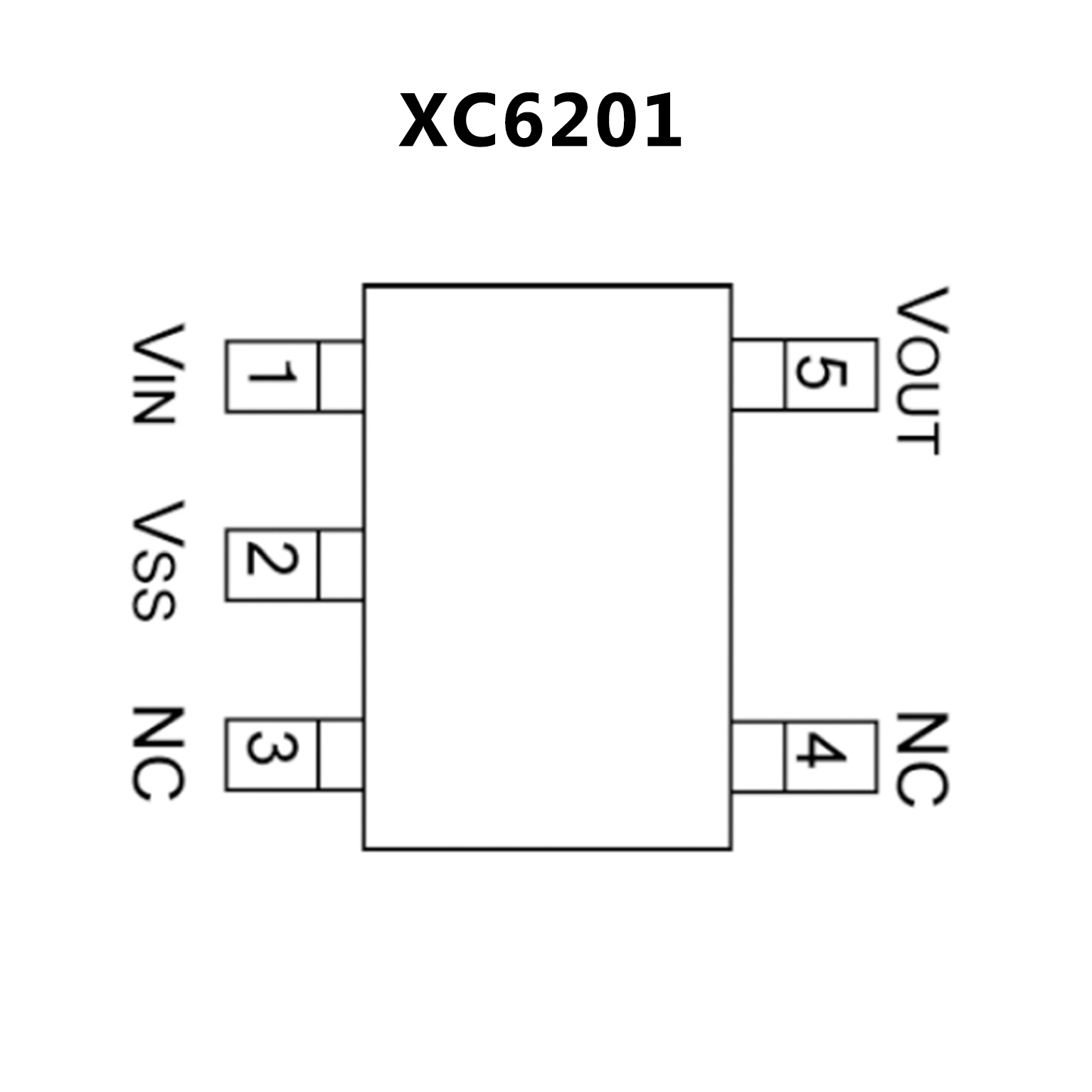

? Maximum Output Current Dropout Voltage
250mA (TYP.) : 0.16V @ 100mA : 0.40V @ 200mA
? Maximum Operating Voltage Output Voltage
Range Fixed Voltage Accuracy
10V 1.3V ~ 6.0V (0.1V increments) : ±1% (VOUT(T)>2.0V)
? Low Power Consumption
±2% : 2.0μA (TYP.)
? Operating Ambient Temperature: -40℃ ~ 85℃ : SOT-25,
? Packages,SOT-89 USP-6B
? Environmentally Friendly : EU RoHS Compliant, Pb Free
Tantalum or Ceramic Capacitor compatible
