SGM2033-3.3XUDH4G.pdf? Operating Input Voltage Range: 1.8V to 5.5V
? Fixed Output Voltage Range: 1.2V to 5.0V
? Adjustable Output Voltage Range: 1.2V to 5.0V
? Output Current Limit: 500mA (TYP)
? Ultra-Low Quiescent Current: 13.5μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? High PSRR: 94dB (TYP) at 1kHz
? Low Dropout Voltage:
175mV (TYP) at 250mA when VOUT = 1.8V
(SOT-23-5)
145mV (TYP) at 250mA when VOUT = 1.8V
(UTDFN-1×1-4AL)
? Output Short-Circuit Protection
? Thermal Shutdown Protection
? Fast Load Transient Response
? Stable with 1μF Small Case Size Ceramic
Capacitors
-40℃ to +125℃ Operating Temperature Range

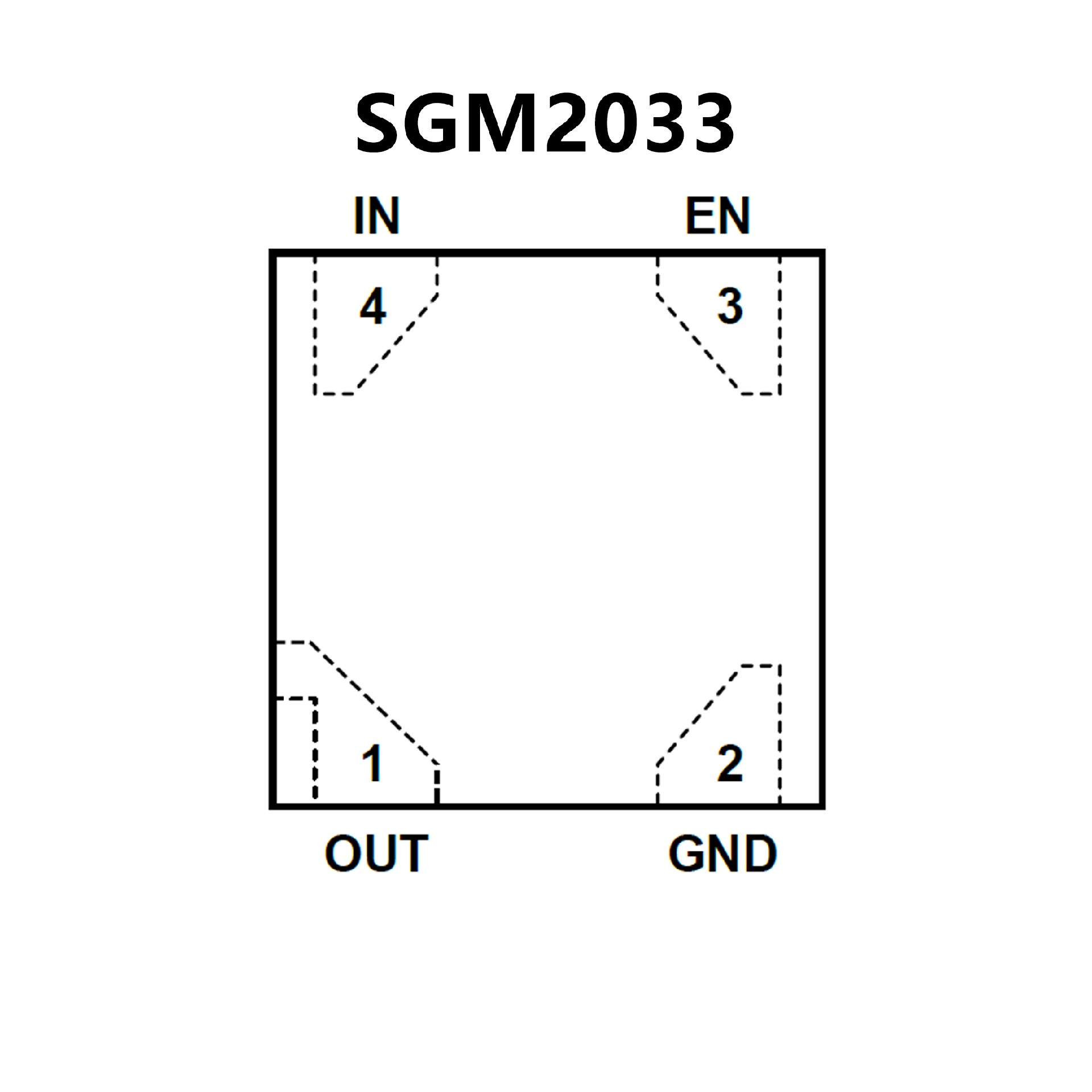

Available in Green SOT-23-5 and UTDFN-1×1-4AL
Packages
? 0.5% Typical Accuracy
? Supports 200-mA Output
? Low IQ: 25 μA
? Fixed-Output Voltage Combinations Possible from
0.85 V to 5.0 V(1)
? High PSRR:
70 dB at 100 Hz
50 dB at 1 MHz
? Stable With Effective Capacitance of 0.1 μF(2)
? Thermal Shutdown and Overcurrent Protection

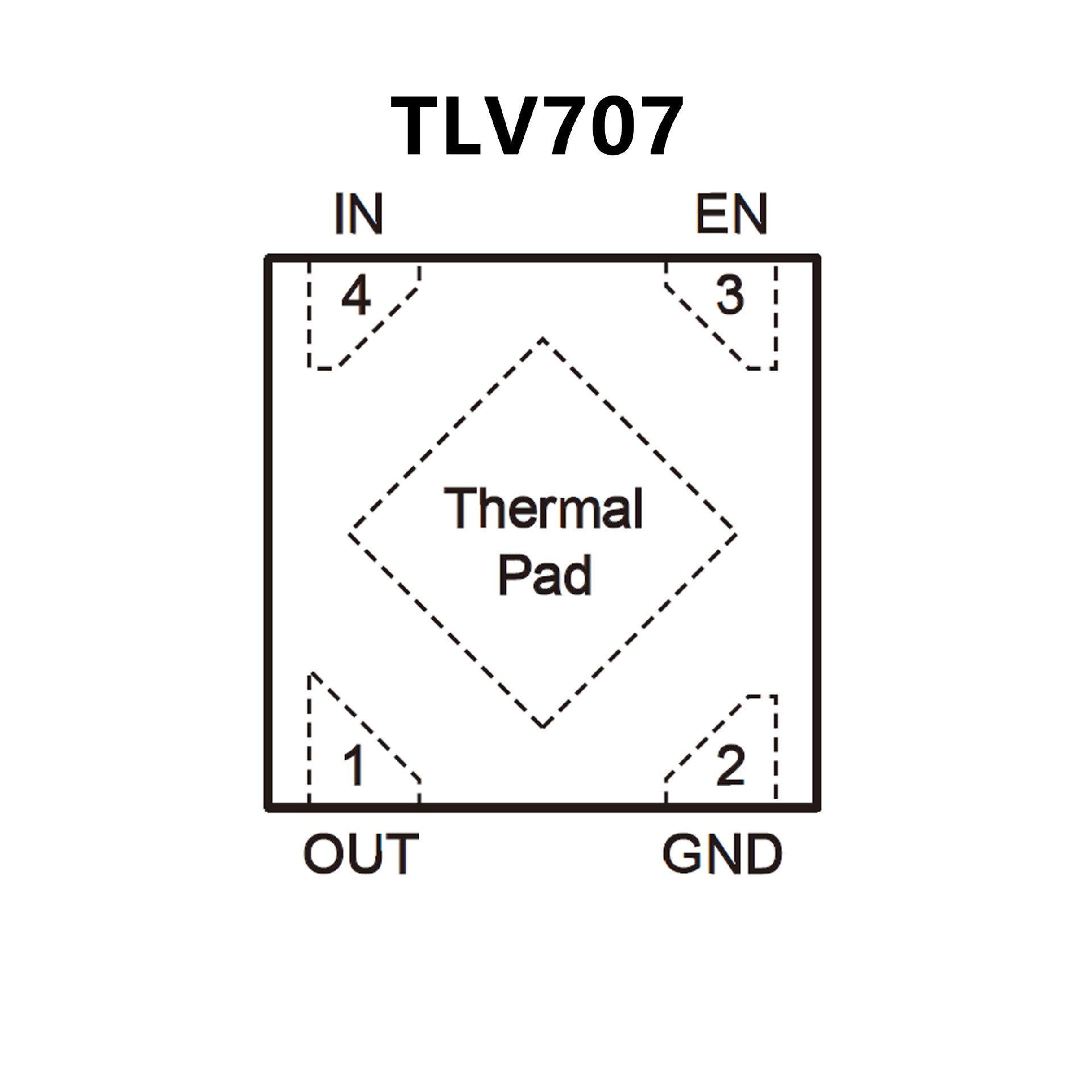

? Package: 1-mm × 1-mm DQN (X2SON)
? For all available voltage options, see the package option
addendum at the end of the data sheet.
? See the Mechanical, Packaging, and Orderable
Information section for more details.
