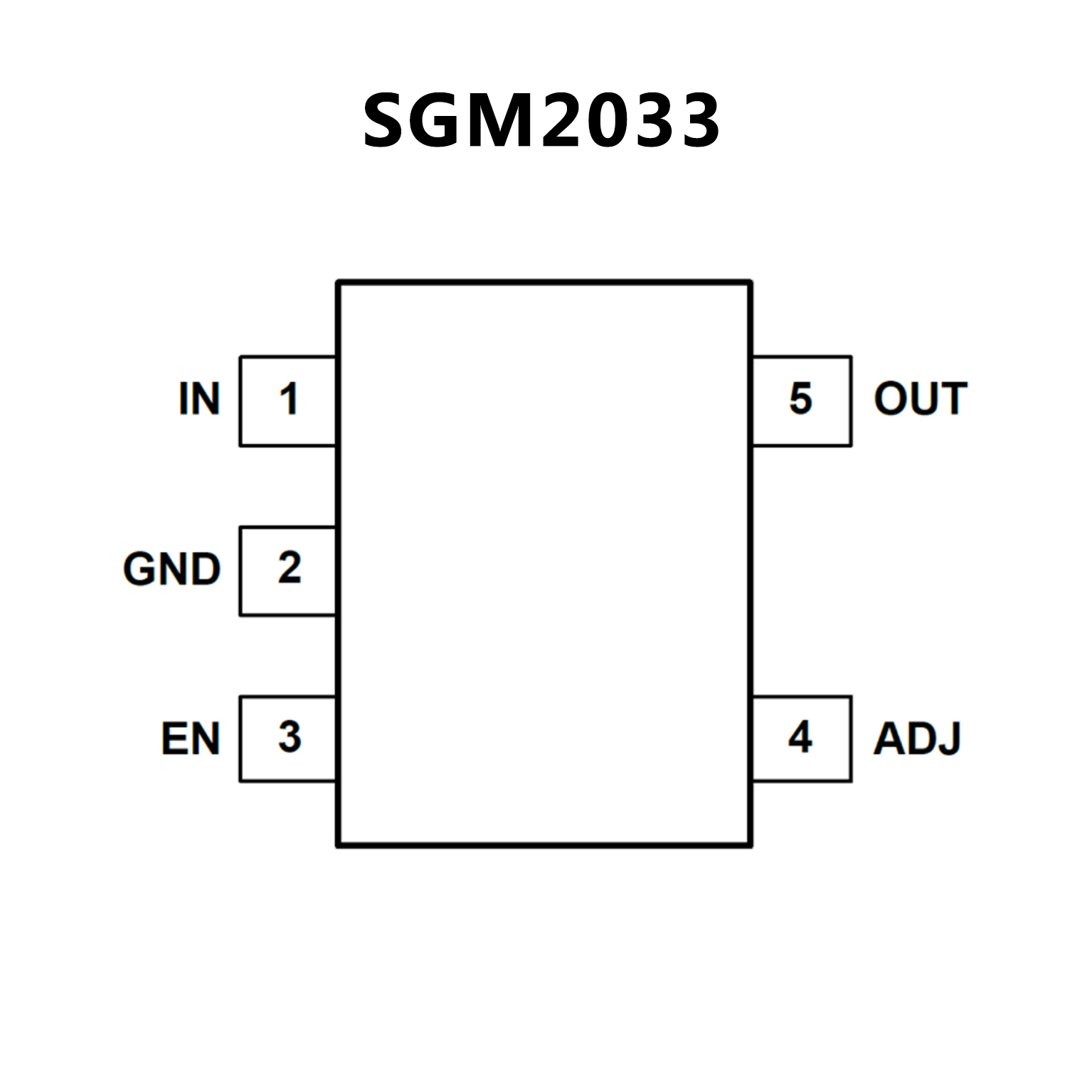

SGM2033-3.3XN5G.pdf? Operating Input Voltage Range: 1.8V to 5.5V
? Fixed Output Voltage Range: 1.2V to 5.0V
? Adjustable Output Voltage Range: 1.2V to 5.0V
? Output Current Limit: 500mA (TYP)
? Ultra-Low Quiescent Current: 13.5μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? High PSRR: 94dB (TYP) at 1kHz
? Low Dropout Voltage:
175mV (TYP) at 250mA when VOUT = 1.8V
(SOT-23-5)
145mV (TYP) at 250mA when VOUT = 1.8V
(UTDFN-1×1-4AL)
? Output Short-Circuit Protection
? Thermal Shutdown Protection
? Fast Load Transient Response
? Stable with 1μF Small Case Size Ceramic
Capacitors
-40℃ to +125℃ Operating Temperature Range
Available in Green SOT-23-5 and UTDFN-1×1-

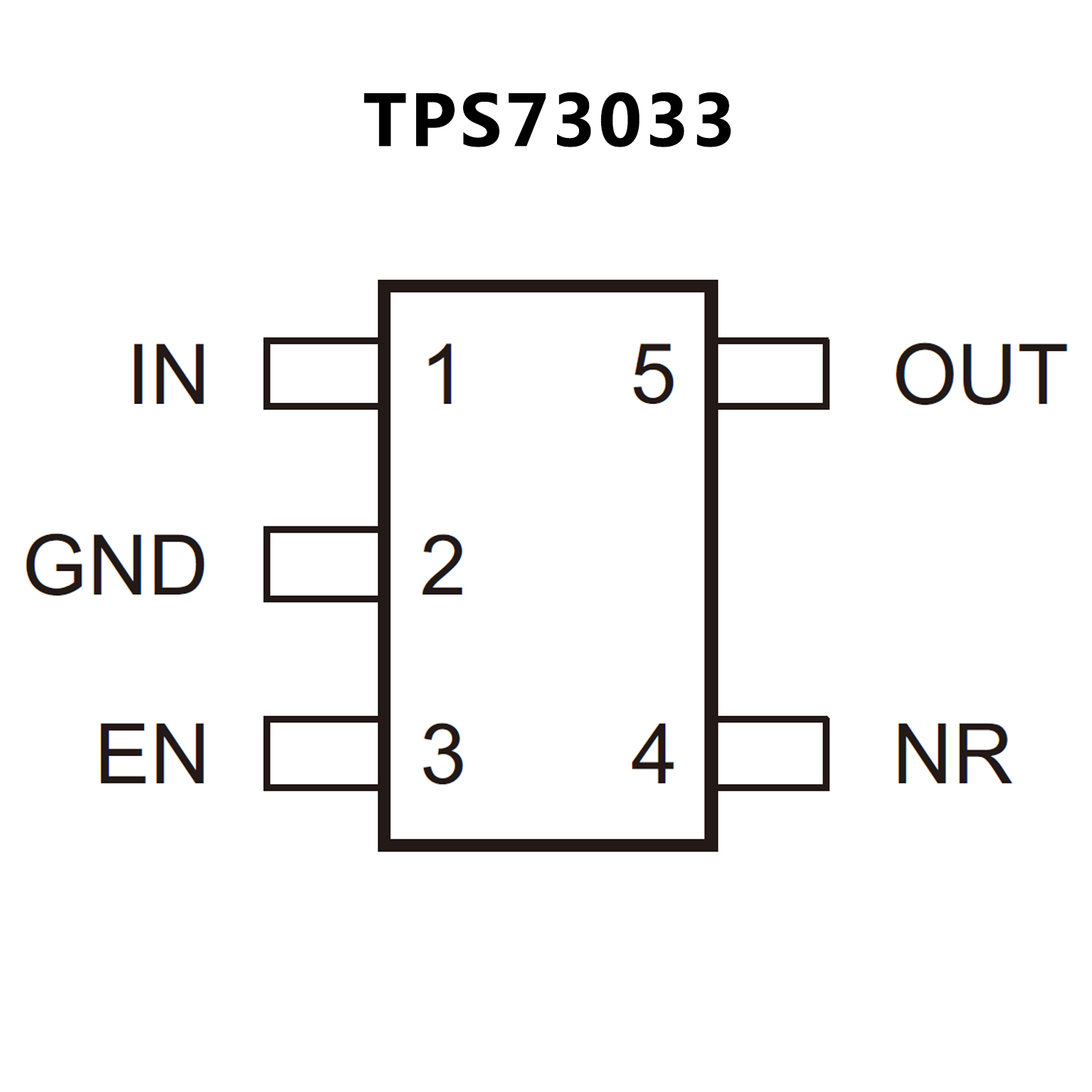

? 200-mA RF Low-Dropout Regulator With Enable
? Available in Fixed Voltages from 1.8 V to 3.3 V and Adjustable Voltages (1.22 V to 5.5 V)
? High PSRR (68 dB at 100 Hz)
? Low Noise (33 μVRMS, TPS73018)
? Fast Start-Up Time (50 μs)
? Stable With a 2.2-μF Ceramic Capacitor
? Excellent Load/Line Transient Response
? Very Low Dropout Voltage (120 mV at 200 mA)
? 5- and 6-Pin SOT-23 (DBV), and Wafer Chip Scale (YZQ) Packages
