300mA, Low Powerand Low Dropout RF Linear Regulator, SGM2036-ADJ Replace AP2127K.
SGM2036-ADJ
SGM2036-ADJ.pdf
SGM2036-ADJ.pdfFEATURES
? Low Dropout Voltage
? Thermal Overload Protection
? Built-In Fold Back Protection Circuit
? 20μA Low Supply Current
? 10nA Logic-Controlled Shutdown
? 1.6V to 5.5V Input Voltage Range
? Fixed Outputs of 0.8V, 0.9V, 1.0V, 1.05V, 1.1V,
1.2V, 1.3V, 1.35V, 1.5V, 1.8V, 1.85V, 2.1V, 2.2V,
2.3V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 2.9V, 3.0V, 3.1V,
3.3V, 3.6V, 4.2V, 4.4V and 5.0V
? Adjustable Output from 0.8V to 5.0V
? Short Auto-Discharge Function
? 300mA Output Current
? High Output Voltage Accuracy
? Short Start-Up Time
? -40℃ to +85℃ Operating Temperature Range
? Available in Green UTDFN-1×1-4L, SOT-23-5 and
SC70-5 Packages

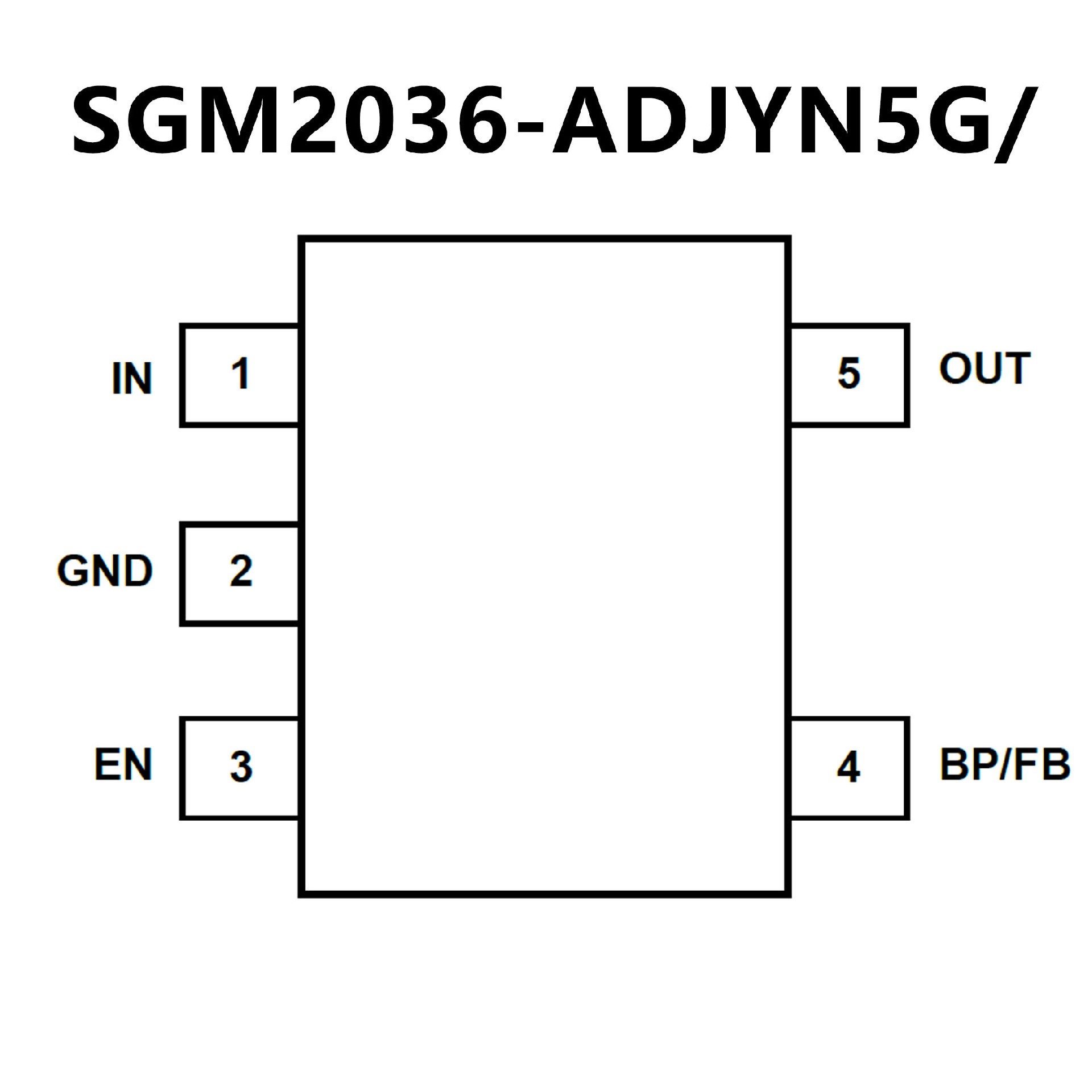

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Wide Operating Voltage: 2.5V to 6V
? High Output Voltage Accuracy: ±2%
? High Ripple Rejection:68dB
@ f = 1kHz, 54dB @ f = 10kHz
? Low Standby Current: 0.1μA
? Low Dropout Voltage: 170mV
@ 300mA for VOUT = 3.3V, 140mV
@ 300mA for VOUT = 4.75V
? Low Quiescent Current: 60μA Typical
? Low Output Noise: 60μVRMS @VOUT = 0.8V
? Short Current Limit: 50mA
? Over Temperature Protection
? Compatible with Low ESR Ceramic
Capacitor:1μF for CIN and COUT
? Excellent Line/Load Regulation
? Soft Start Time: 50μs
? Auto Discharge Resistance: RDS(ON) = 60Ω
? Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
? Halogen and Antimony Free. “Green” Device (Note 3)

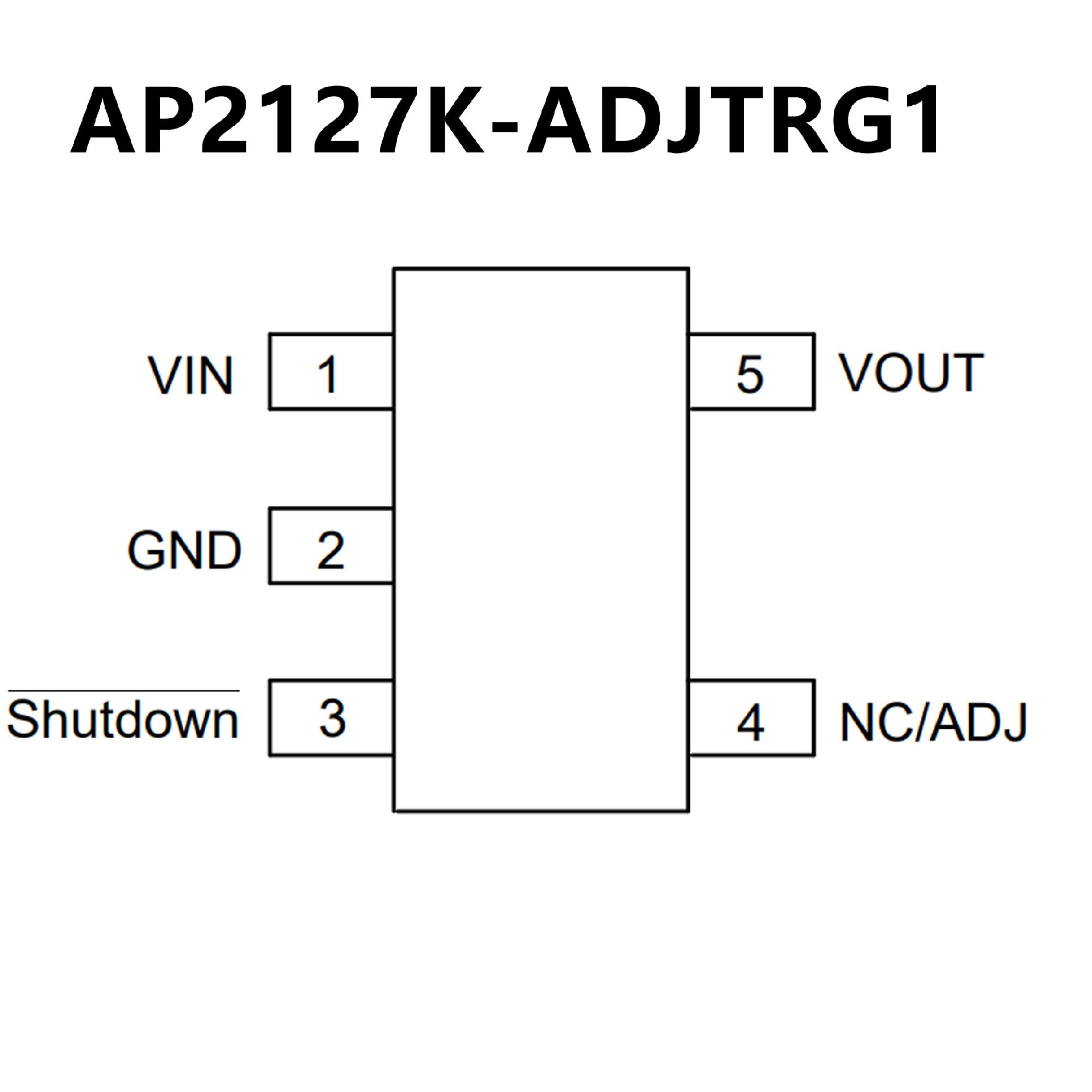

PIN CONFIGUTION
