1μA Ultra-Low Current Consumption and Low Dropout CMOS Voltage Regulator,SGM2040 Replace TLV70233DBVR.
SGM2040-3.3YN5G
SGM2040-3.3YN5G.pdf
SGM2040-3.3YN5G.pdfFEATURES
? Operating Input Voltage Range: 1.7V to 7.5V
? Fixed Outputs of 1.2V, 1.5V, 1.8V, 2.5V, 2.8V,
3.0V, 3.3V, 3.6V, 4.0V, 4.2V and 5.0V
? 250mA Output Current
? High Output Voltage Accuracy: ±1.2% at +25℃
? Ultra-Low Quiescent Current: 1μA (TYP)
? Low Dropout Voltage: 60mV (TYP) at 100mA
? Low Reverse Leakage Current:
0.4μA (TYP) when VOUT > VIN
? Current Limiting and Thermal Protection
? With Output Automatic Discharge
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5 and
UTDFN-1×1-4AL Packages

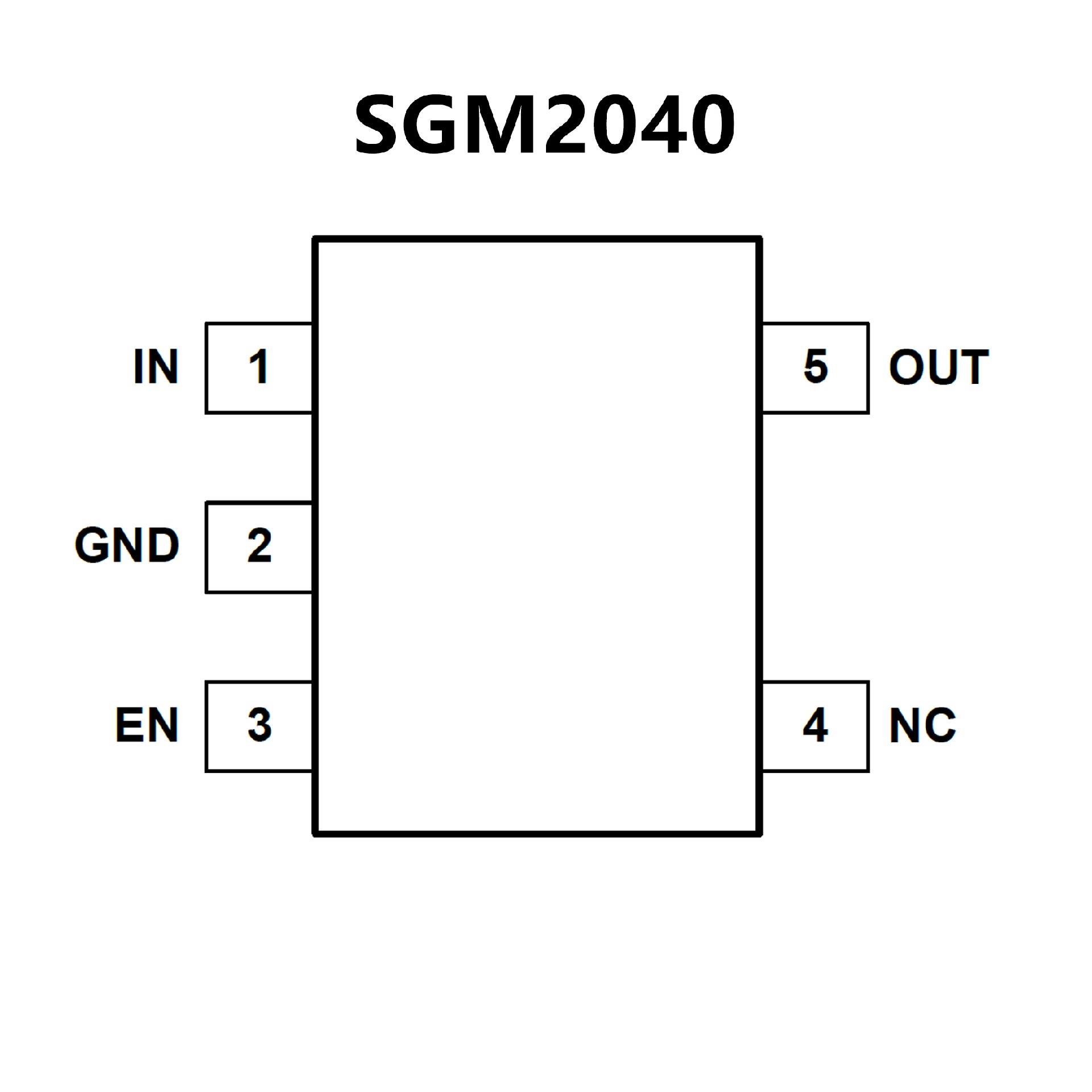

PIN CONFIGUTION
