300mA, Low VIN, Ultra-Low Noise and High PSRR Linear Regulator,SGM2045 Replace G9103.
SGM2045
SGM2045.pdf
SGM2045.pdfFEATURES
? Operating Input Voltage Range: 1.1V to 5.5V
? Fixed Output Voltage Option: 0.6V to 4.2V
? Ultra-Low Noise: 9.5μVRMS (TYP)
? Ultra-Low Quiescent Current: 15μA (TYP)
? Standby Current: 0.03μA (TYP)
? High PSRR: 92dB (TYP) at 1kHz
? Low Dropout Voltage:
100mV (TYP) at 300mA when
VOUT = 1.8V(XTDFN-1×1-4L)
80mV (TYP) at 300mA when
VOUT = 1.8V(WLCSP-0.64×0.64-4B-A)
? Output Short-Circuit Protection
? Over-Temperature Protection
? Fast Load Transient Response
? Stable with 1μF Small Case Size CeramicCapacitors
? -40℃ to +125℃ Operating Temperature Range
? Available in Green XTDFN-1×1-4L and
WLCSP-0.64×0.64-4B-A Packages

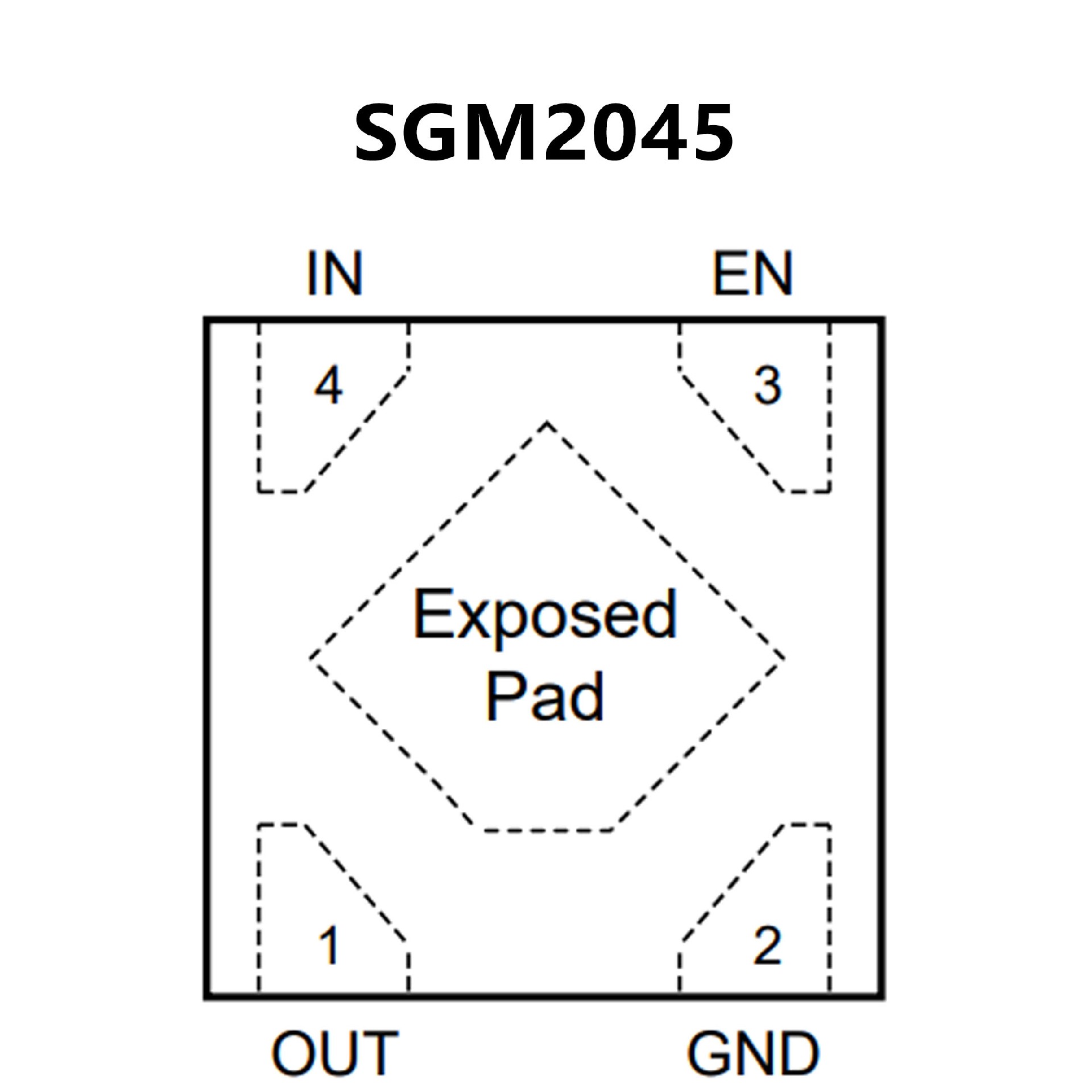

PIN CONFIGUTION
