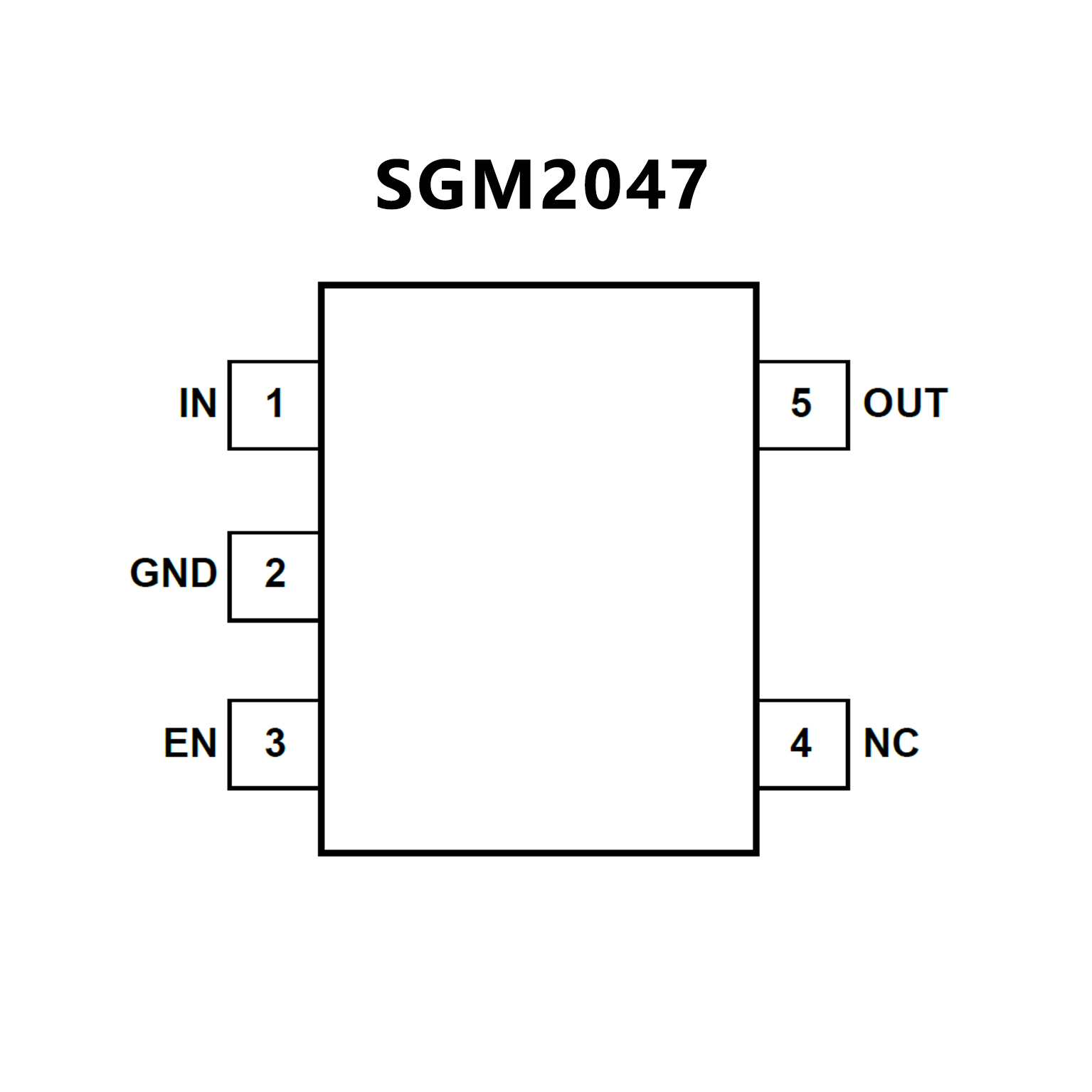

SGM2047.pdf? Input Voltage Range: 1.7V to 5.5V
? Output Voltage Range: 0.6V to 3.6V
? Output Voltage Accuracy: ±1% (TYP) at +25℃
? Low Dropout: 200mV (TYP) at 200mA
? Ultra-Low Quiescent Current: 0.6μA (TYP)
? Stable with Small Case Size Ceramic Capacitors
? Over-Current Protection
? Thermal Shutdown Protection
? SGM2047A: With Output Active Discharge
? SGM2047B: Without Output Active Discharge
? -40℃ to +125℃ Operating Temperature Range
? Available in Green XTDFN-1×1-4L and SOT-23-5 Packages
? Input voltage from VOUT to 5.5 V
? Input bias supply pin from 3.0 V to 5.5 V
? Ultra low-dropout voltage (40 mV typ. at 1 A load)
? Low ground current (35 μA typ. at no load)
? Output voltage tolerance: ±1% all over
temperature range, ±0.5% at 25 °C
? 1 A guaranteed output current
? 50 mV output voltage step available from 0.4 V to 1.8 V
? 100 mV output voltage step available from 1.9 V to 3.6 V
? Adjustable version from 0.5 V to 3.0 V
? Logic-controlled electronic shutdown
? Internal current limit
? Output active discharge function
? Available in Flip Chip6 (0.8x1.2 mm) package
? Temperature range: -40 °C to 85 °C
