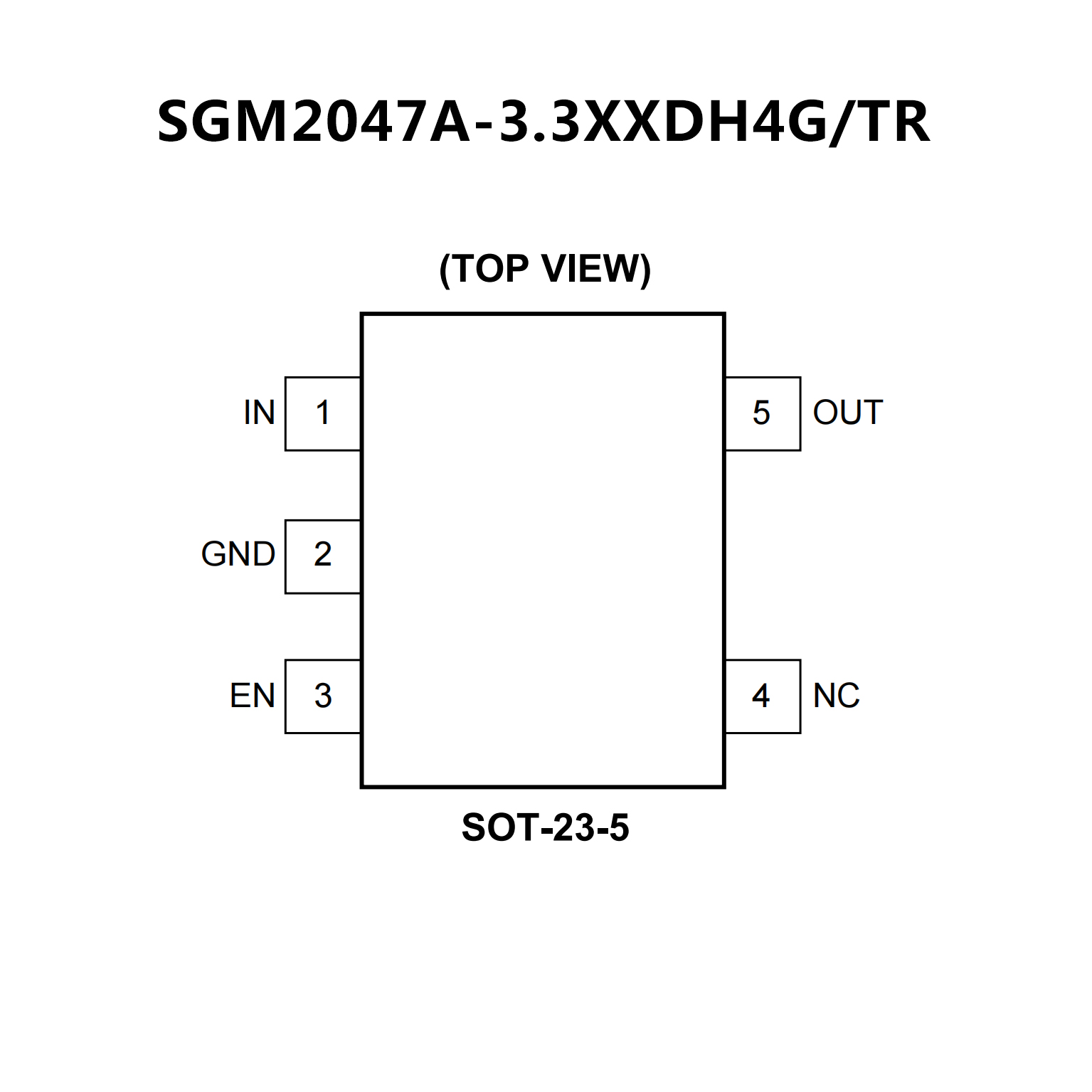

SGM2047A-3.3.pdf? Input Voltage Range: 1.7V to 5.5V
? Output Voltage Range: 0.6V to 3.6V
? Output Voltage Accuracy: ±1% (TYP) at +25℃
? Low Dropout: 200mV (TYP) at 200mA
? Ultra-Low Quiescent Current: 0.6μA (TYP)
? Stable with Small Case Size Ceramic Capacitors
? Over-Current Protection
? Thermal Shutdown Protection
? SGM2047A: With Output Active Discharge
? SGM2047B: Without Output Active Discharge
? -40℃ to +125℃ Operating Temperature Range
? Available in Green XTDFN-1×1-4L and SOT-23-5
Packages
? Operating Input Voltage Range: 2.2 V to 5.5 V
? Output Voltage Range: 1.2 V to 3.6 V (0.1 V Steps)
? Ultra-Low Quiescent Current Typ. 0.5μA
? Low Dropout: 170 mV Typ. at 150 mA
? High Output Voltage Accuracy ±1%
? Stable with Ceramic Capacitors 1μF
? Over-Current Protection
? Thermal Shutdown Protection

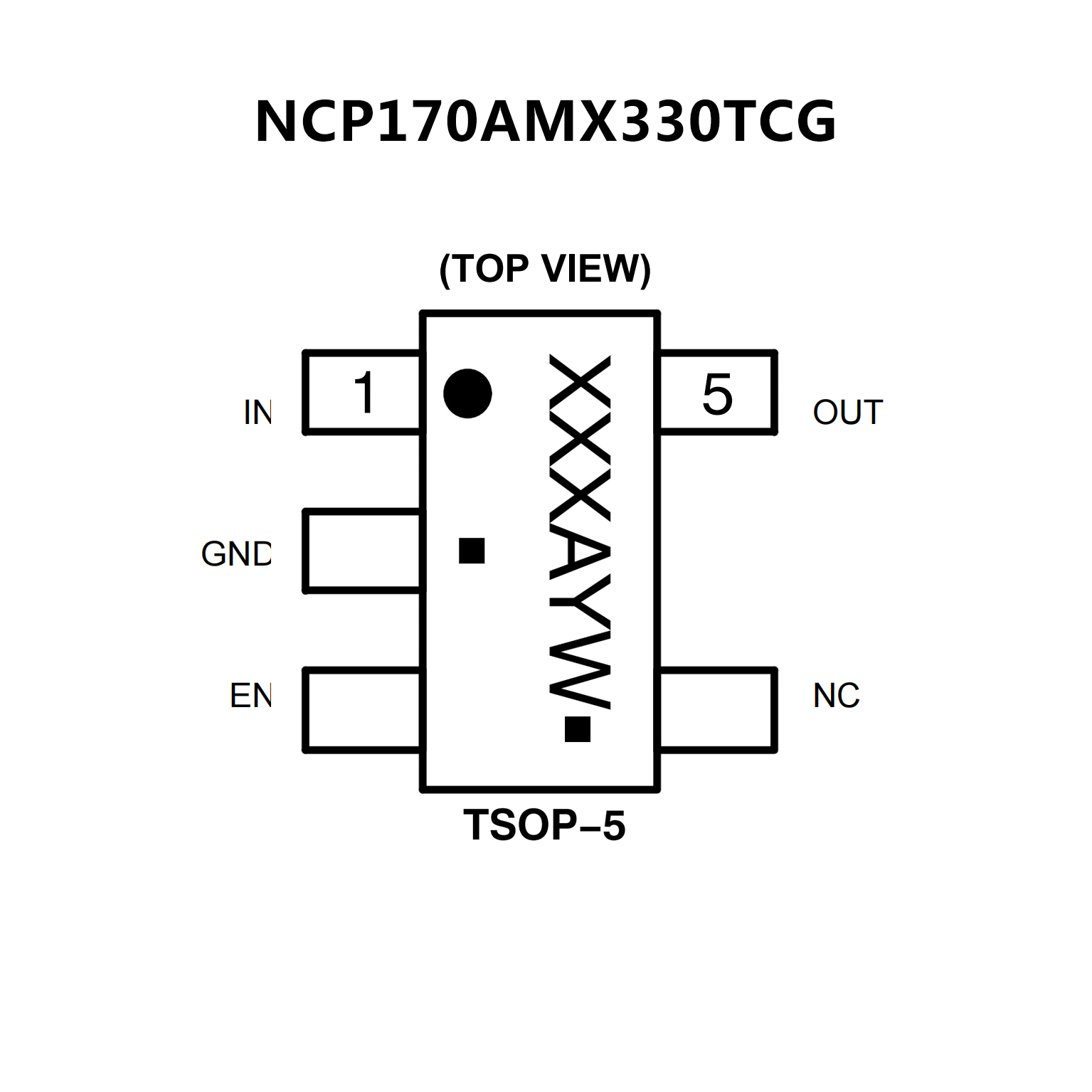

? NCP170A for Active Discharge Option
? Available in Small 1 × 1 mm XDFN4, SOT?563 and
TSOP-5 Packages
? These Devices are Pb?Free, Halogen Free/BFR Free
and are RoHS Compliant
