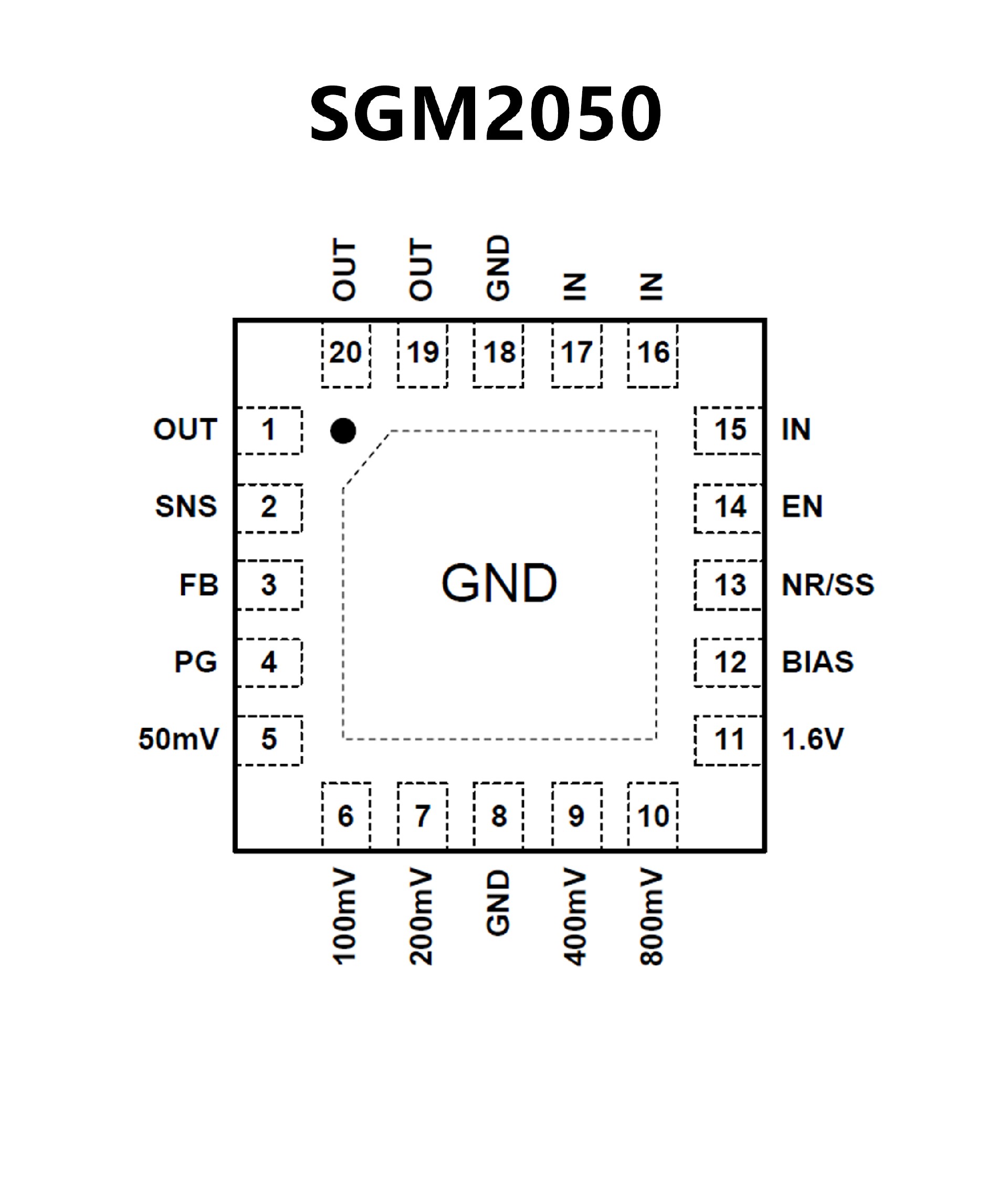

SGM2050.pdf? Input Voltage Range:
Without BIAS: 1.4V to 7V
With BIAS: 1.1V to 7V
? Output Voltage Range:
Adjustable Operation: 0.8V to 5.2V
Pin-Selectable Operation: 0.8V to 3.95V
? Output Voltage Accuracy: ±1% at +25℃
? Low Dropout Voltage: 99mV (TYP) at 3A
? Low Noise: 5μVRMS (TYP) with BIAS
? Excellent Load Transient Response
? Adjustable Soft-Start Inrush Control
? Open-Drain Power-Good (PG) Output
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TQFN-3.5×3.5-20L Package
? Low dropout: 180 mV (max) at 3 A
? 1% (max) accuracy over line, load, and
temperature
? Output voltage noise:
4.4 μVRMS at 0.8-V output
7.7 μVRMS at 5.0-V output
? Input voltage range:
Without BIAS: 1.4 V to 6.5 V
With BIAS: 1.1 V to 6.5 V
? ANY-OUT? operation:
Output voltage range: 0.8 V to 3.95 V
? Adjustable operation:
Output voltage range: 0.8 V to 5.0 V
? Power-supply ripple rejection:
40 dB at 500 kHz
? Excellent load transient response
? Adjustable soft-start in-rush control
? Open-drain power-good (PG) output
? Stable with a 47-μF or larger ceramic output
capacitor
? 3.5-mm × 3.5-mm, 20-pin VQFN
