SGM2053-2.8.pdf? Input Supply Voltage Range: 1.5V to 5.5V
? Fixed Output Voltages:
1.0V, 1.05V, 1.1V, 1.8V, 2.8V, 3.0V and 3.3V
? Adjustable Output Voltage Range: 0.8V to 5.0V
? 500mA Guaranteed Output Current
? Ultra-Low Dropout Voltage:
95mV (TYP) at VOUT = 5.0V
? High PSRR: 93dB (TYP) at 1kHz
? Turn-On Time: 70μs (TYP)
? Low Output Noise: 20μVRMS (TYP)
? Fast Load Transient Response
? Thermal Shutdown Protection
? Output Current Limit
? Output Auto-Discharge in Shutdown
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-6 Package
? 200-mA RF Low-Dropout Regulator With Enable
? Available in Fixed-Voltage Versions from 1.8 V to 4.75 V and Adjustable (1.22 V to 5.5 V)
? High PSRR (70 dB at 10 kHz)
? Low Noise (32 μVRMS, TPS79328)
? Fast Start-Up Time (50 μs)
? Stable With a 2.2-μF Ceramic Capacitor
? Excellent Load and Line Transient Response
? Very Low Dropout Voltage (112 mV at 200 mA, TPS79330)

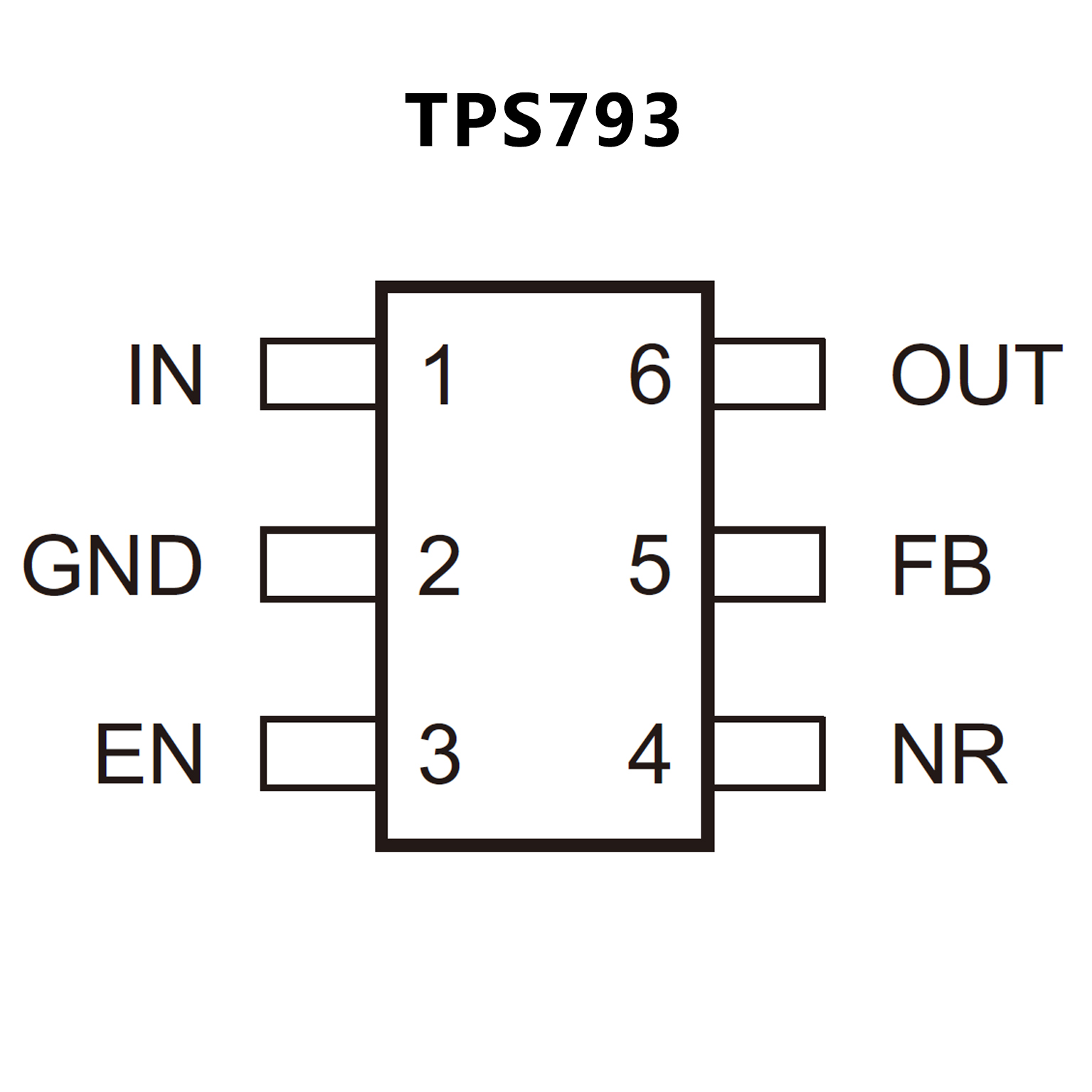

? 5- and 6-Pin SOT23 (DBV) and NanoStar Wafer Chip Scale (YZQ) Packages
