SGM2207.pdf? Wide Input Voltage Range: 2.5V to 20V
? Output Voltage Range: 1.8V to 12V
? Guaranteed 800mA Output Current over the Full
Operating Temperature Range
? Low Dropout Voltage: 400mV (TYP) at Full Load
? Extremely Tight Load and Line Regulations
? Fast Load Transient
? Low Output Voltage Temperature Coefficient
? Output Short Circuit Protection
? Current and Thermal Limiting
? No-Load Stability
? -40℃ to +125℃ Operating Temperature Range
? Thermally-Efficient Surface-Mount Package

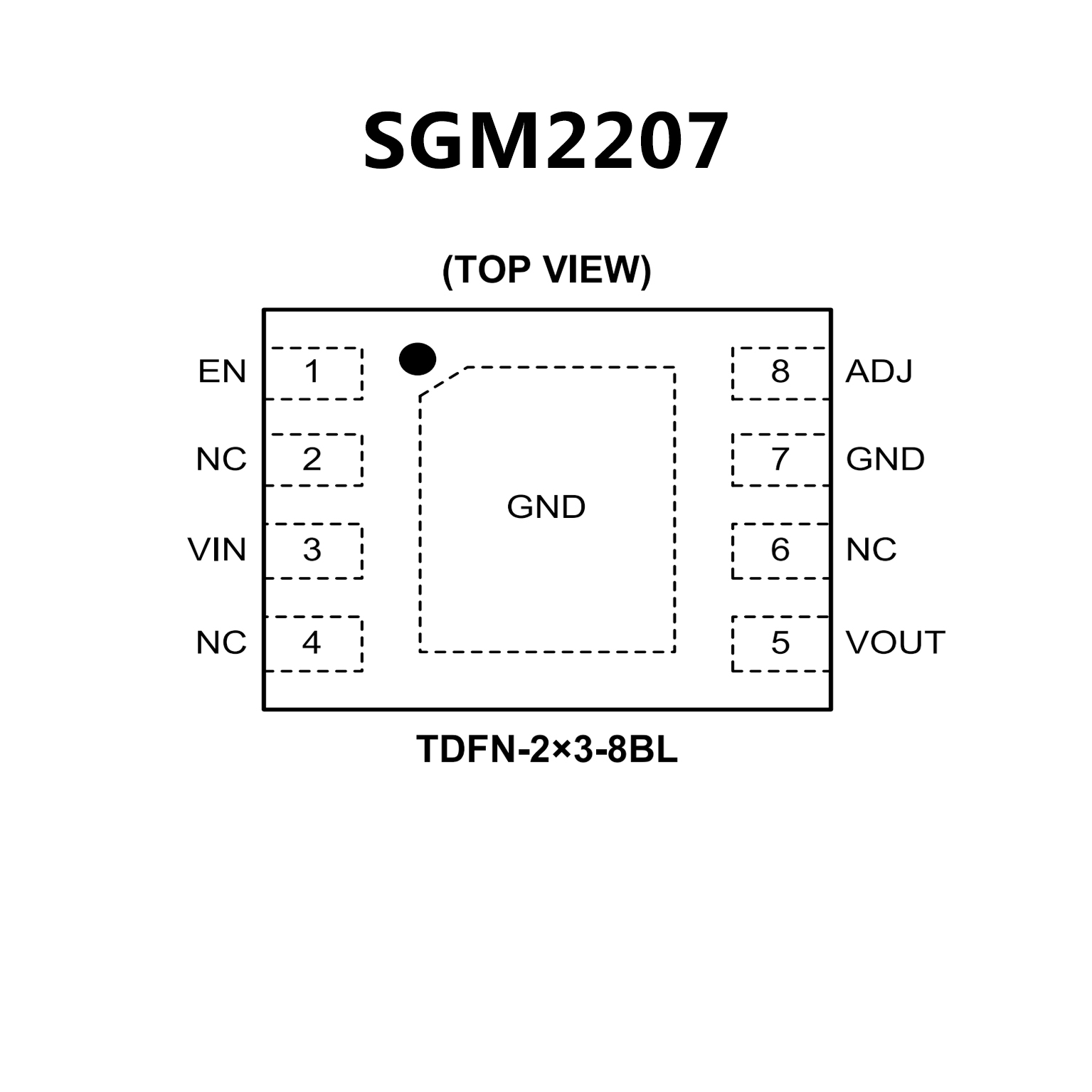

? Available in a Green TDFN-2×3-8BL Package
? Low Noise: 40μV Possible
? High Accuracy: 1%
? Reverse Battery Protection
? Low Dropout: 340mV at Full Load
? Low Quiescent Current: 90μA
? Zero Off-Mode Current
? Fixed & Adjustable Output Voltages:
? 1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.3V & 5.0V Fixed
Output Voltages
? ≥1.235V Adjustable Output Voltages
