3A, Low Noise, Adjustable Output with Single Resistor and Low Dropout Regulator, SGM2208 Replace SPX29302.
SGM2208
SGM2208.pdf
SGM2208.pdfFEATURES
? Power Input Voltage Range (Relative to OUT): 0V to 24V
? Bias Supply Voltage Range (Relative to OUT): 2.7V to 25V
? Single Resistor Programs Output Voltage
? SET Pin Current: 50μA (TYP)
? Output Adjustable to 0V
? Low Output Noise: 32μVRMS (10Hz to 100kHz)
? Low Dropout Voltage: 155mV (TYP) at 3A
? Current Limit with Foldback
? Over-Temperature Protection
? Outputs May be Paralleled for Higher Current and
Heat Spreading

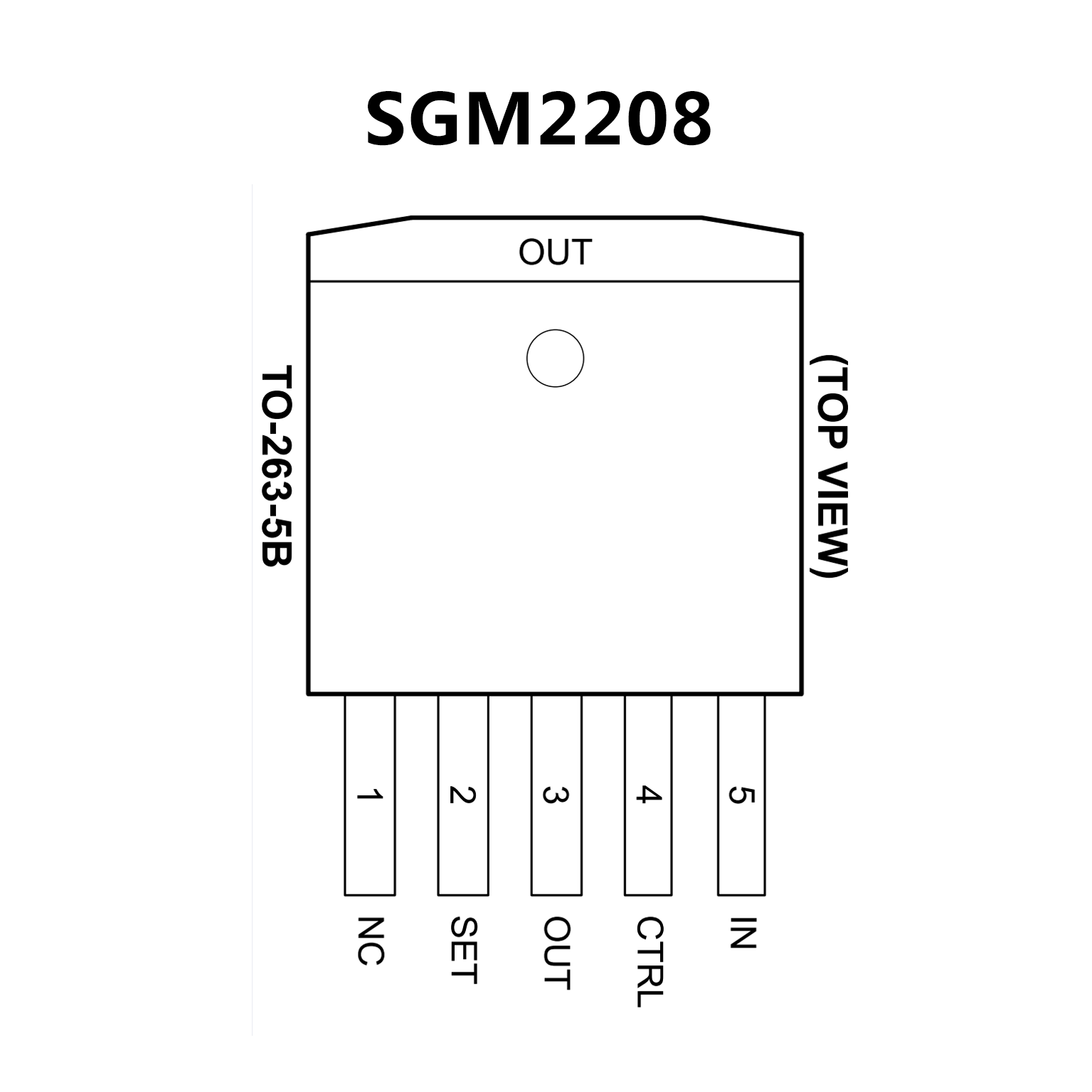

PIN CONFIGUTION
優勢替代
FEATURES
? 3A Guaranteed Output Current
? Low Dropout Voltage of 600mV @ 3A
? Adjustable Output down to 1.25V
? 1% Output Accuracy
? Tight Load and Line Regulation
? Fast Transient Response
? Reverse Battery Protection
? Zero Current Shutdown (SPX29301/02)
? Power Good Flag (SPX29301)
? Lead Free 3-Pin TO-263 and 5-pin TO-
263 Packages

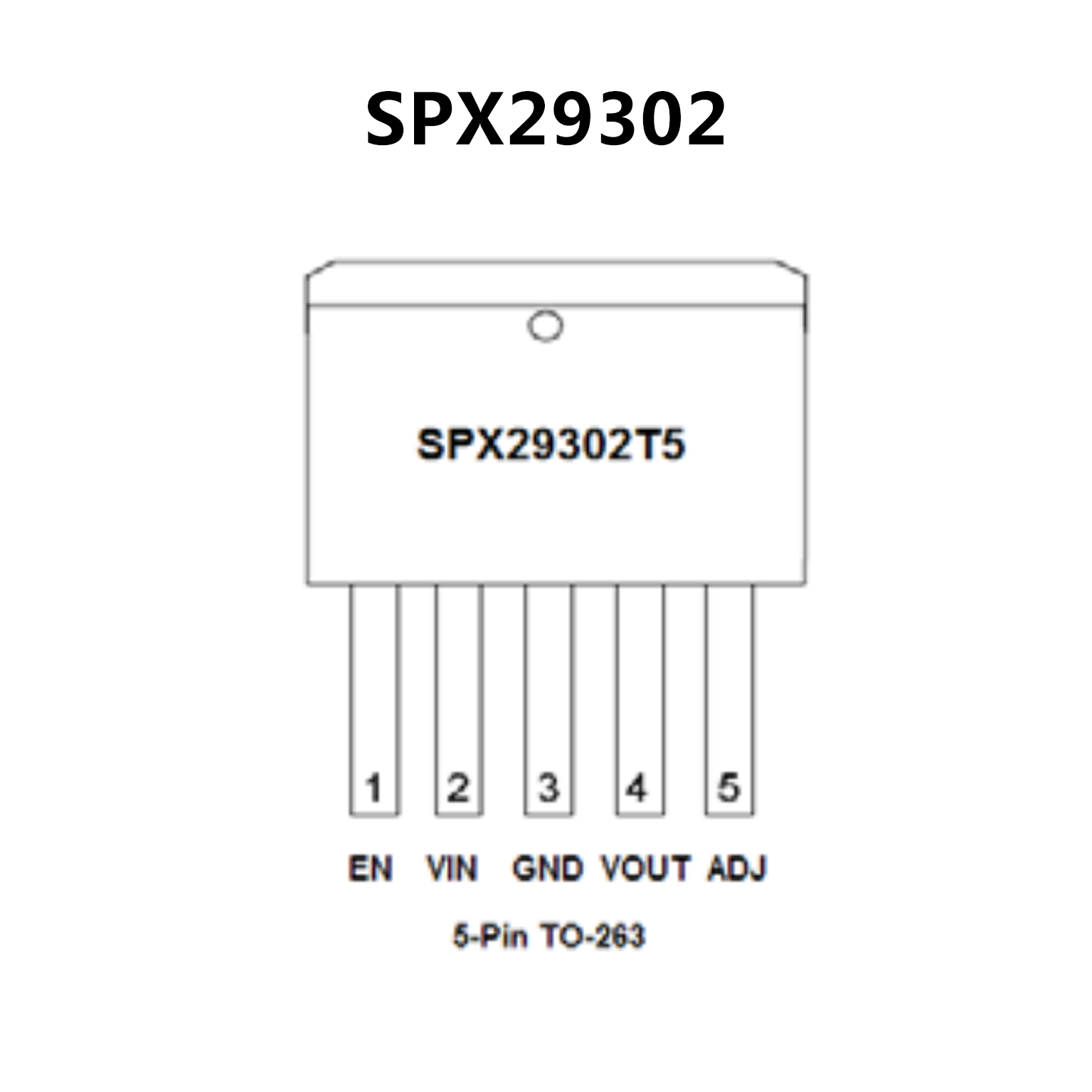

PIN CONFIGUTION
