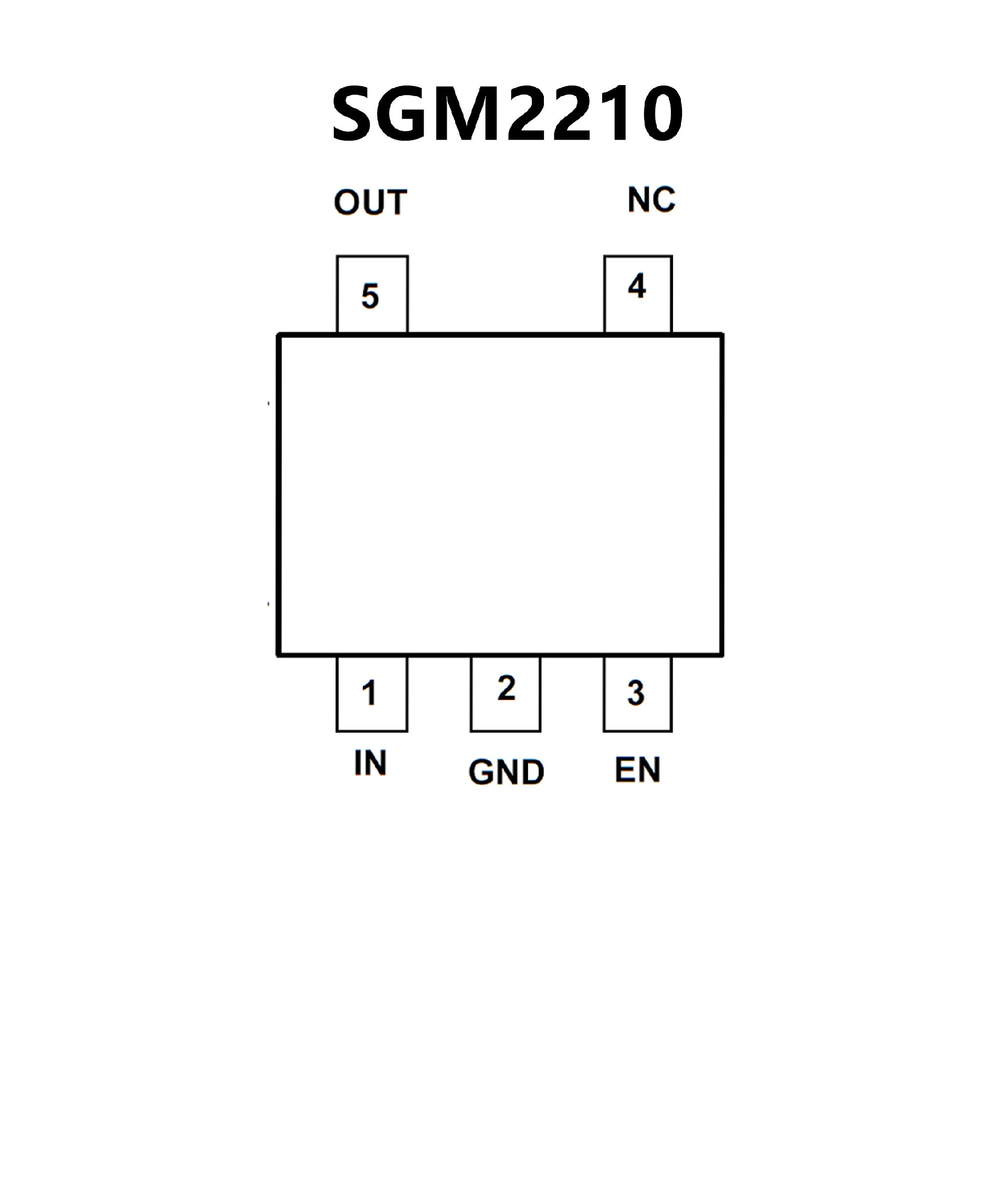

SGM2210-5.0.pdf? Input Voltage Range: 2.5V to 20V
? Low Dropout Voltage: 80mV (TYP) at 100mA Load
? Low Quiescent Current: 36μA (TYP)
? Shutdown Current: 0.5μA (TYP)
? Output Voltage Accuracy: ±1% at +25℃
? 300mA Guaranteed Output Current
? Fixed Output Voltage Versions:
1.2V to 5.0V with 100mV per Step
? Adjustable Output Voltages: 1.2V to 12V
? Logic-Controlled Shutdown
? Output Short-Circuit Constant
Current Limitingand Thermal Protection
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package

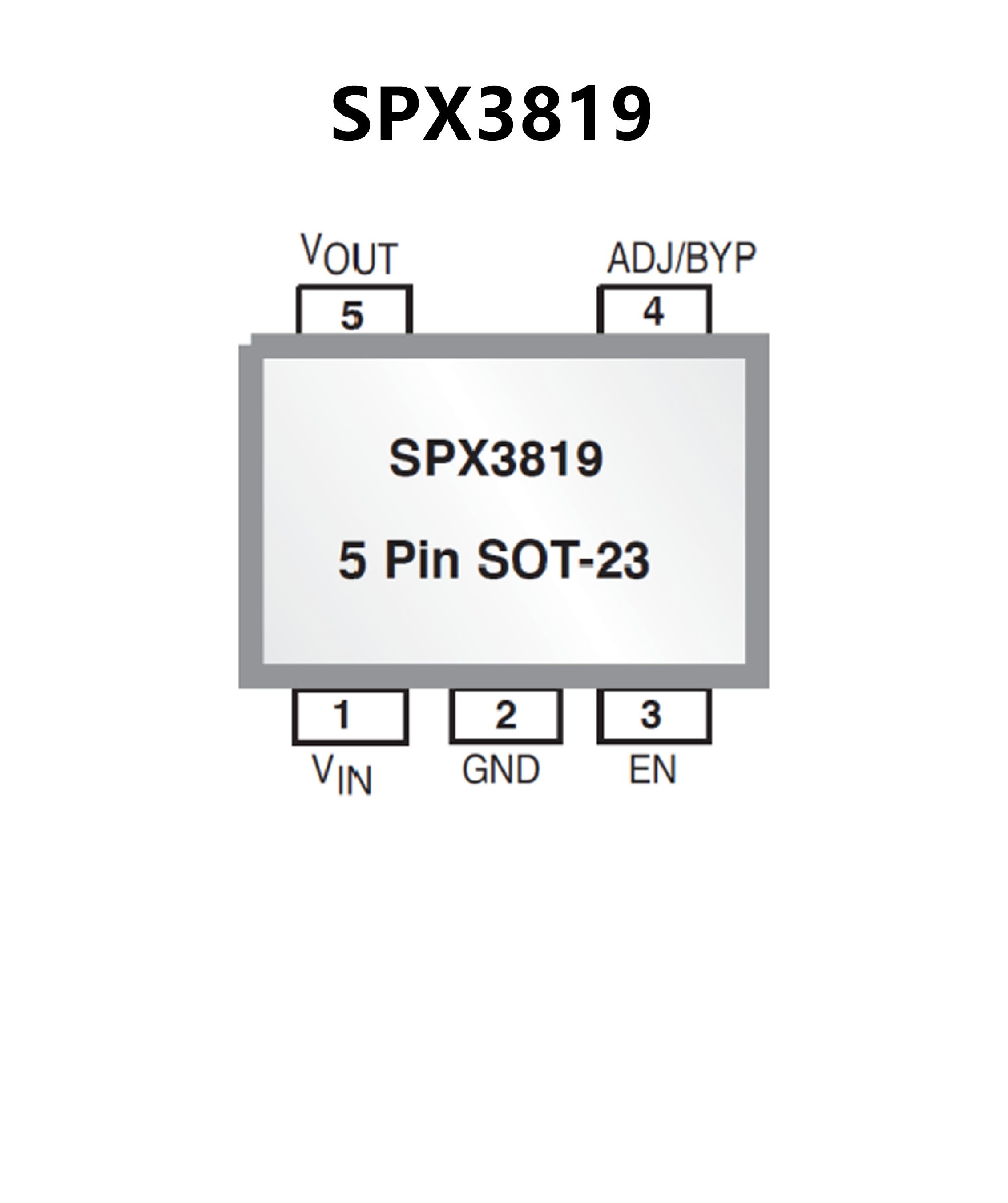

? Low Noise: 40μV Possible
? High Accuracy: 1%
? Reverse Battery Protection
? Low Dropout: 340mV at Full Load
? Low Quiescent Current: 90μA
? Zero Off-Mode Current
? Fixed & Adjustable Output Voltages:
1.2V, 1.5V, 1.8V, 2.5V, 3.0V, 3.3V & 5.0V
Fixed Output Voltages
≥1.235V Adjustable Output Voltages
? Available in RoHS Compliant, Lead Free
Packages:
5-pin SOT-23, 8-pin SOIC and 8-pin DFN
