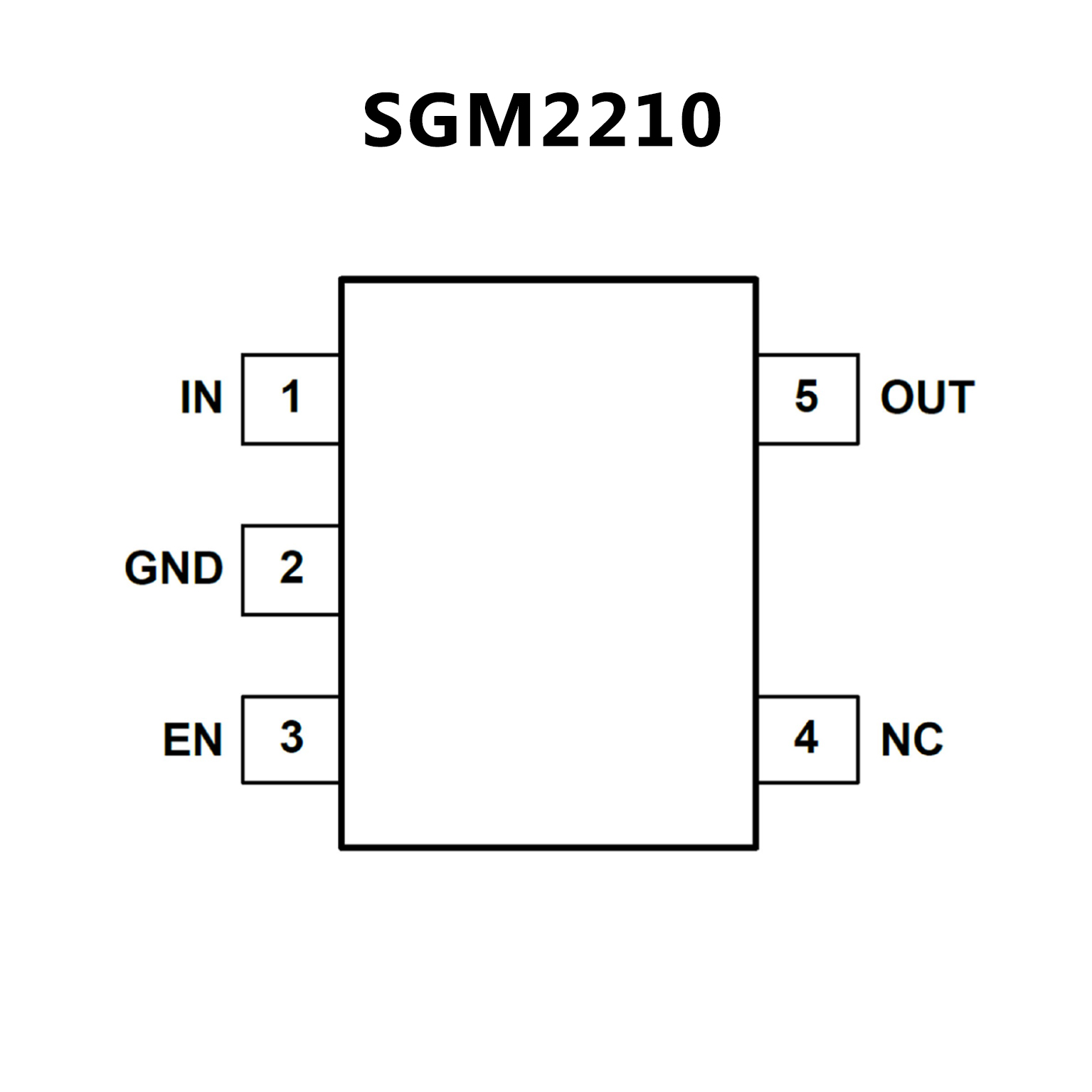

SGM2210.pdf? Input Voltage Range: 2.5V to 20V
? Low Dropout Voltage: 80mV (TYP) at 100mA Load
? Low Quiescent Current: 36μA (TYP)
? Shutdown Current: 0.5μA (TYP)
? Output Voltage Accuracy: ±1% at +25℃
? 300mA Guaranteed Output Current
? Fixed Output Voltage Versions:
1.2V to 5.0V with 100mV per Step
? Adjustable Output Voltages: 1.2V to 12V
? Logic-Controlled Shutdown
? Output Short-Circuit Constant Current L
imiting
and Thermal Protection
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package

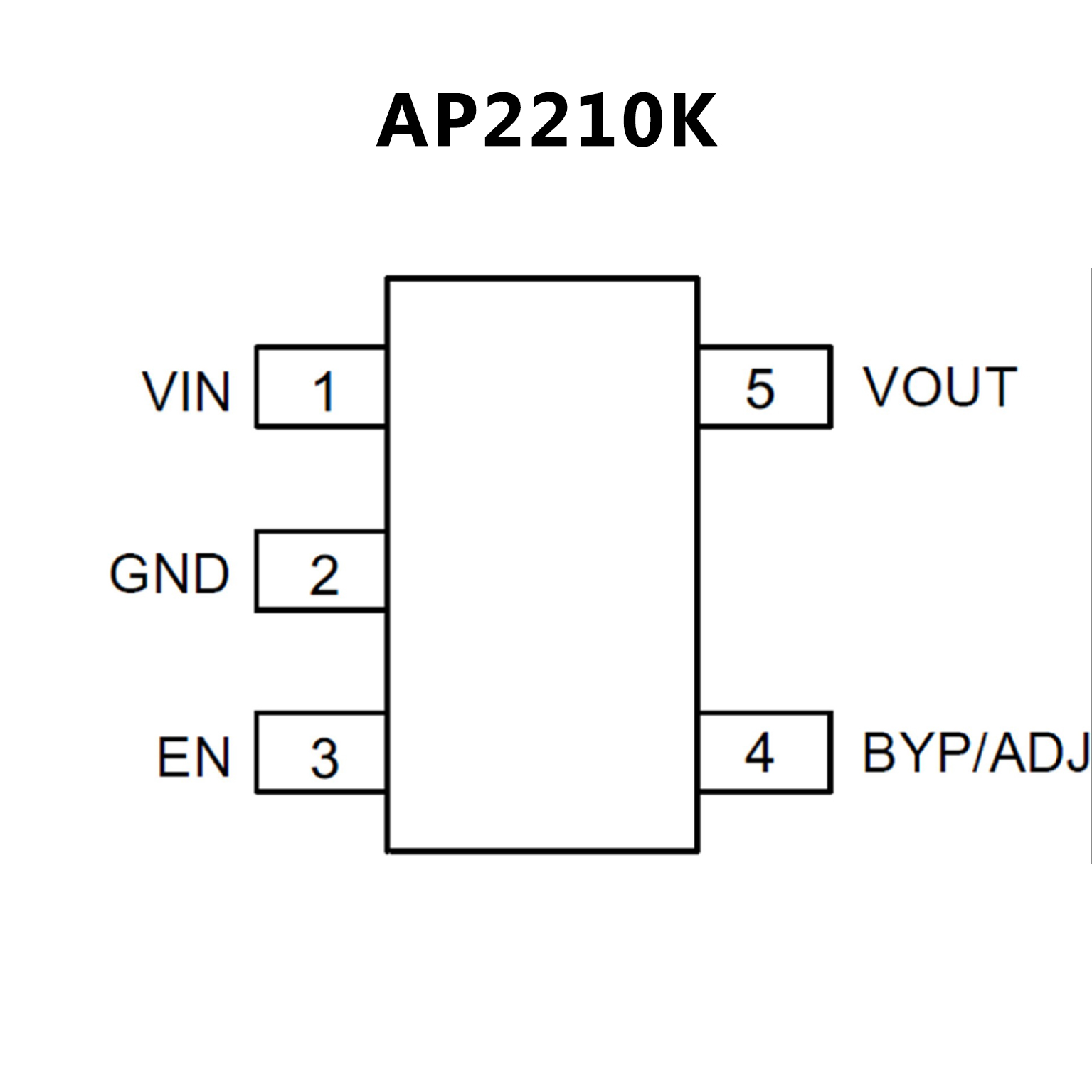

? Up to 300mA Output Current
? Excellent ESR Stability
? Low Standby Current
? Low Dropout Voltage:
VDROP = 250mV at 300mA
? High Output Accuracy: ±1%
? Good Ripple Rejection Ability:
75dB at 100Hz and IOUT = 100μA
? Tight Load and Line Regulation
? Low Temperature Coefficient
? Over Current Protection
? Thermal Protection
? Reverse-battery Protection
? Logic-controlled Enable
? Lead-Free Packages: SOT-23-3, SOT-23-5
