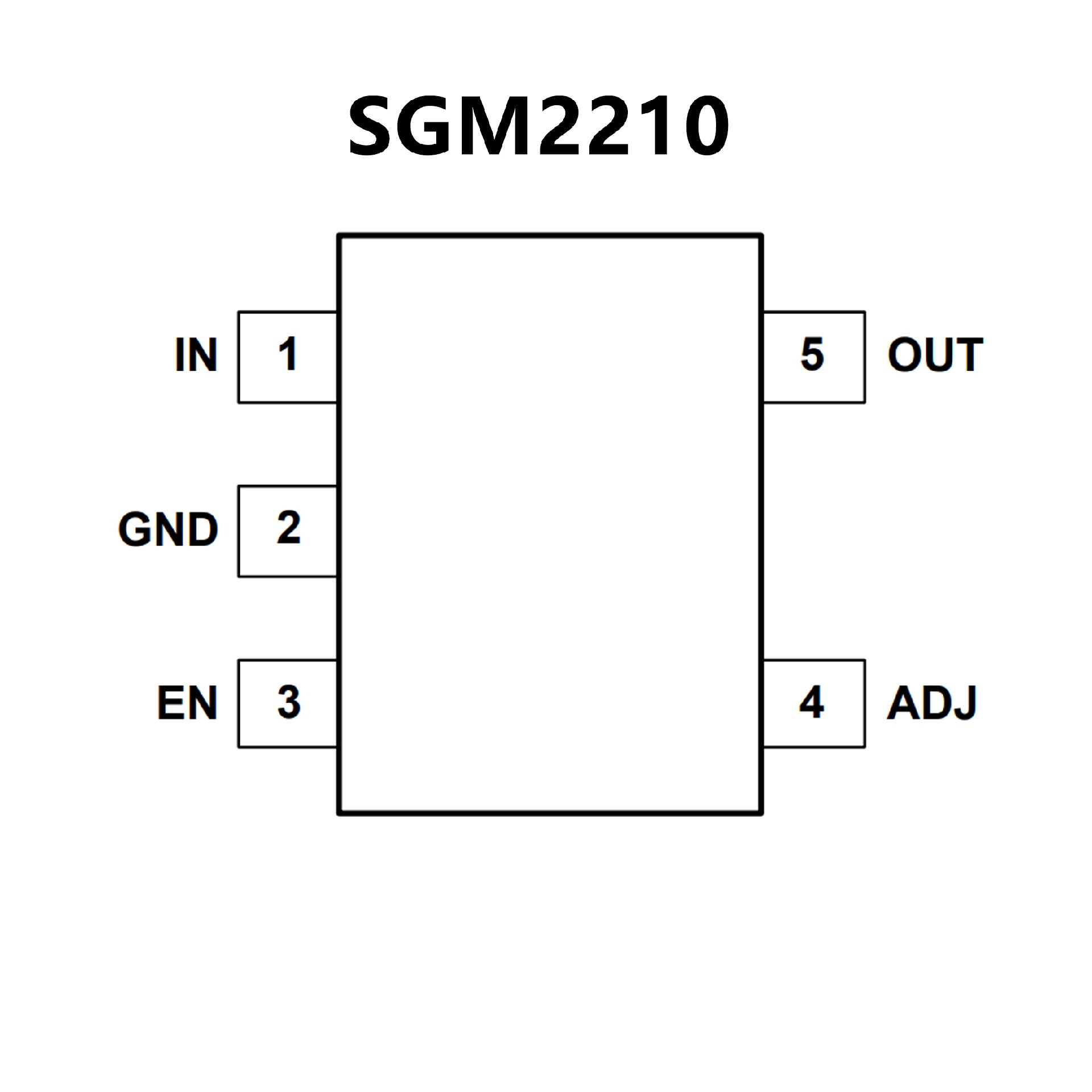

SGM2210-2.5XN5G.pdf? Operating Input Voltage Range: 2.5V to 20V
? Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V
? Adjustable Output from 1.2V to 12V
? 300mA Output Current
? Output Voltage Accuracy: ±1% at +25℃
? Quiescent Current: 36μA (TYP)
? Low Dropout: 80mV (TYP) at 100mA, VOUT = 3.3V
? Low Noise: 48μVRMS (TYP) at VOUT = 3.3V
? High PSRR: 100dB (TYP) at 1kHz
? Current Limiting and Thermal Protection
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? Shutdown Supply Current: 0.5μA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package

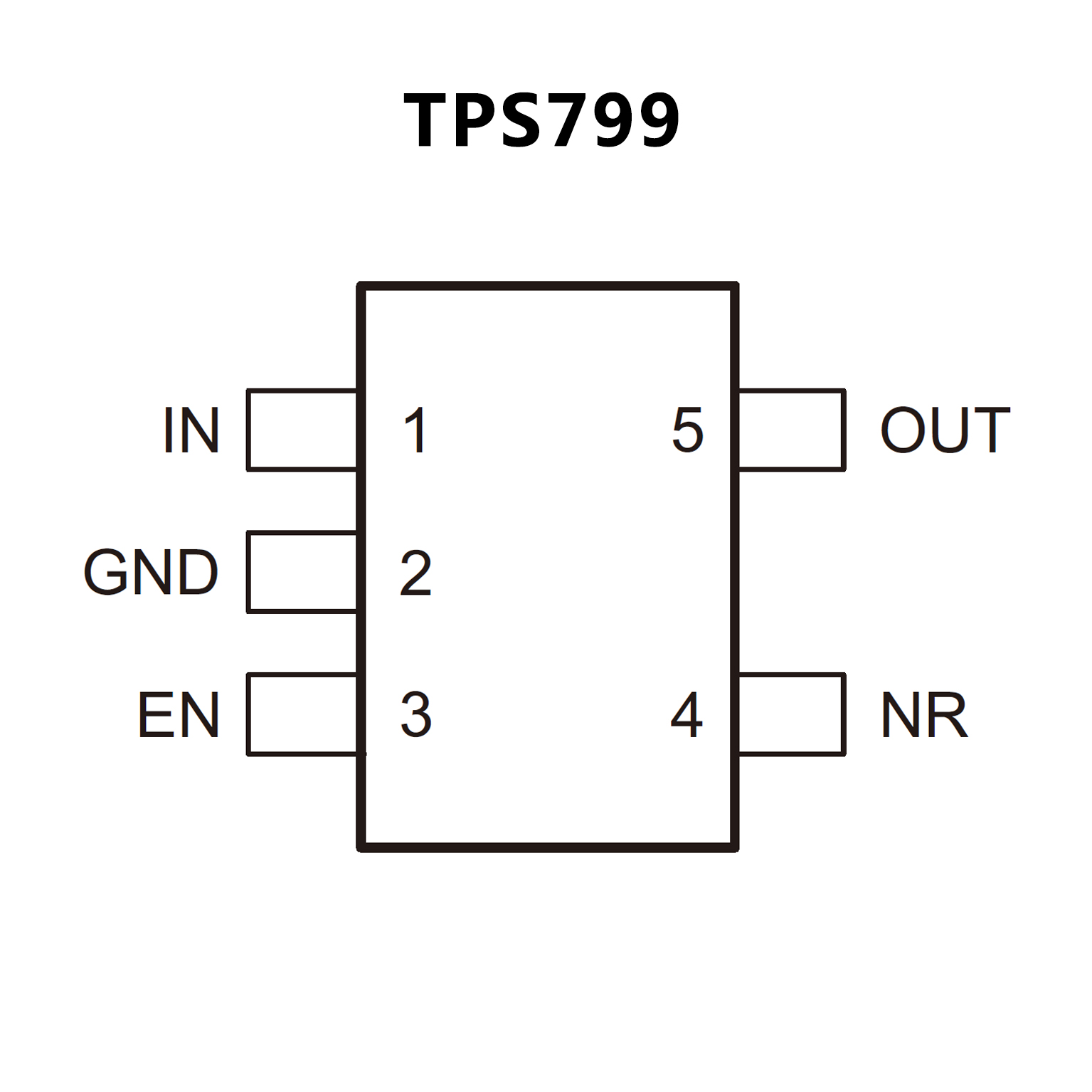

? 200-mA Low-Dropout Regulator With EN
? Multiple Output Voltage Versions Available:
Fixed Outputs of 1.2 V to 4.5 V Using Innovative Factory EEPROM Programming
Adjustable Outputs from 1.20 V to 6.5 V
? Inrush Current Protection with EN Toggle
? Low IQ: 40 μA
? High PSRR: 66 dB at 1 kHz
? Stable with a Low-ESR, 2-μF Typical Output Capacitance
? Excellent Load and Line Transient Response
? 2% Overall Accuracy (Load, Line, and Temperature)
? Very Low Dropout: 100 mV
? Package: 5-Bump, Thin, 1-mm × 1.37-mm DSBGA
