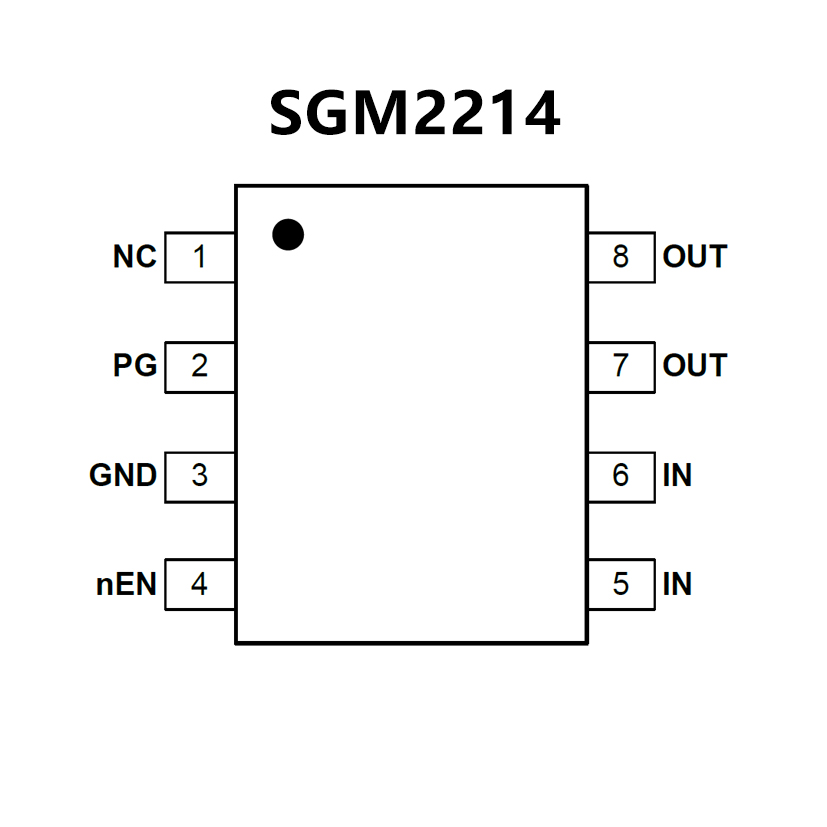

SGM2214.pdf? lnput Voltage Range: 2.7V to 16V
? Output Voltage Accuracy: 士1% at +25℃
? Low Dropout Voltage: 235mV (TYP) at 300mA
? Low Quiescent Current: 40uA(TYP)
Available in Multiple Output Voltage Versions
? Fixed Outputs of 1.5V,1.8V,2.5V,2.7V,2.8V,3.0V,
3.3V and 5.ov
? Adjustable Output Voltage Range: 1
? 2V to 12V. Power Supply Rejection Ratio:
85dB (TYP) at 1kHzOpen-Drain Power-Good Function
? Thermal Shutdown Protection
-40℃ to +125℃ Operating Temperature
? Range Available in a Green soIC-8 Package

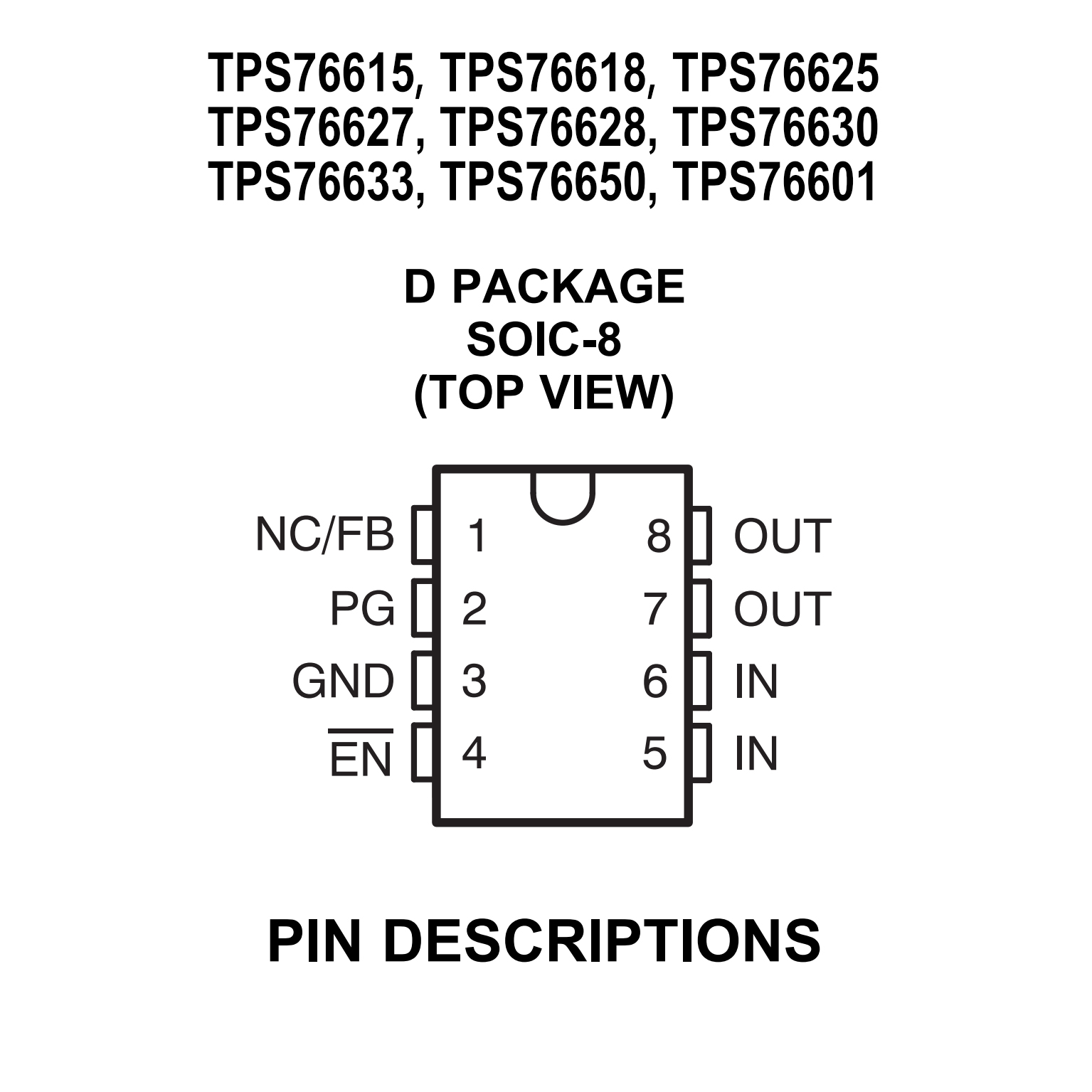

? 250-mA Low Dropout Voltage Regulator
? Available in 1.5 V, 1.8 V, 2.5 V, 2.7 V, 2.8 V, 3.0 V,
3.3 V, 5.0 V Fixed Output and Adjustable Versions
? Dropout Voltage to 140 mV (Typ) at 250 mA (TPS76650)
? Ultralow 35-μA Typical Quiescent Current
? 3% Tolerance Over Specified Conditions for Fixed
Output Versions
? Open-Drain Power Good
? 8-Pin SOIC Package
? Thermal Shutdown Protection
