SGM2217-3.3.pdf? Wide Input Voltage Range: 2.8V to 30V
? Adjustable Output from 1.25V to 26V
? Fixed Outputs of 1.8V, 2.5V,
2.8V, 3.0V, 3.3V, 5.0Vand 12V
? 1.5A Maximum Output Current
? Low Dropout Voltage: 1.3V (TYP) at 1.5A
? Line Regulation: 0.04% (TYP)
? Load Regulation: 0.04% (TYP)
? Current Limiting and Thermal Protection
? Excellent Load and Line Transient Responses
? Stable with Small Case Size Ceramic Capacitors
? -40℃ to +125℃ Operating Temperature Range
? Available in Green TO-263-3A

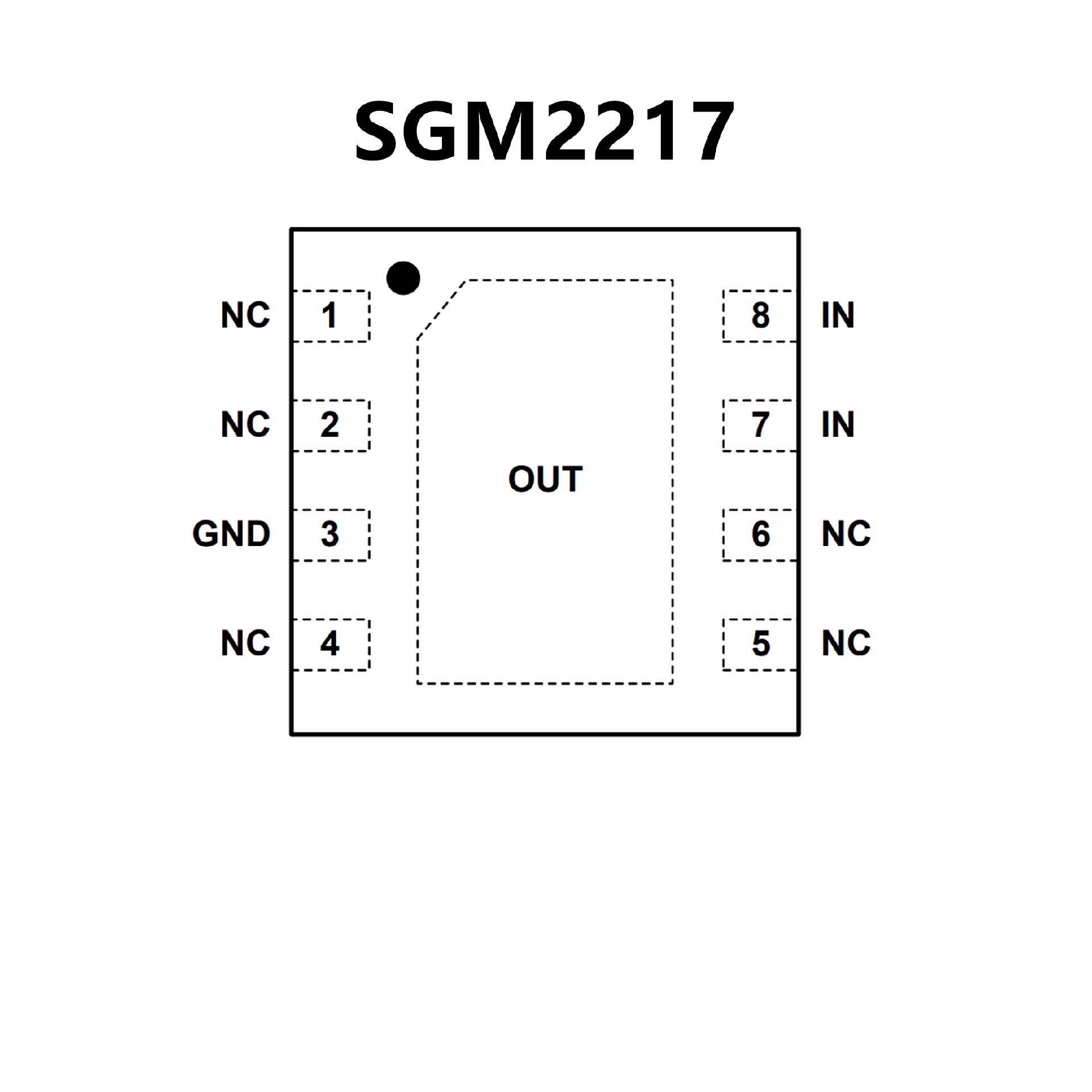

and TDFN-4×4-8LPackages
? Typical dropout: 1.3 V at 1.5 A
? Three-terminal adjustable or
fixed output voltage: 1.8 V, 2.5 V,
3.3 V, 5 V, 12 V
? Automotive grade
(adjustable VOUT in TO-220 and DPAK packages only)
? Output current guaranteed up to 1.5 A
? Output tolerance: ± 1% at 25 °C and ± 2%
in full temperature range
? Internal power and thermal limit
? Wide operating temperature range - 40 °C to 125 °C
? Package available: TO-220, D2PAK,

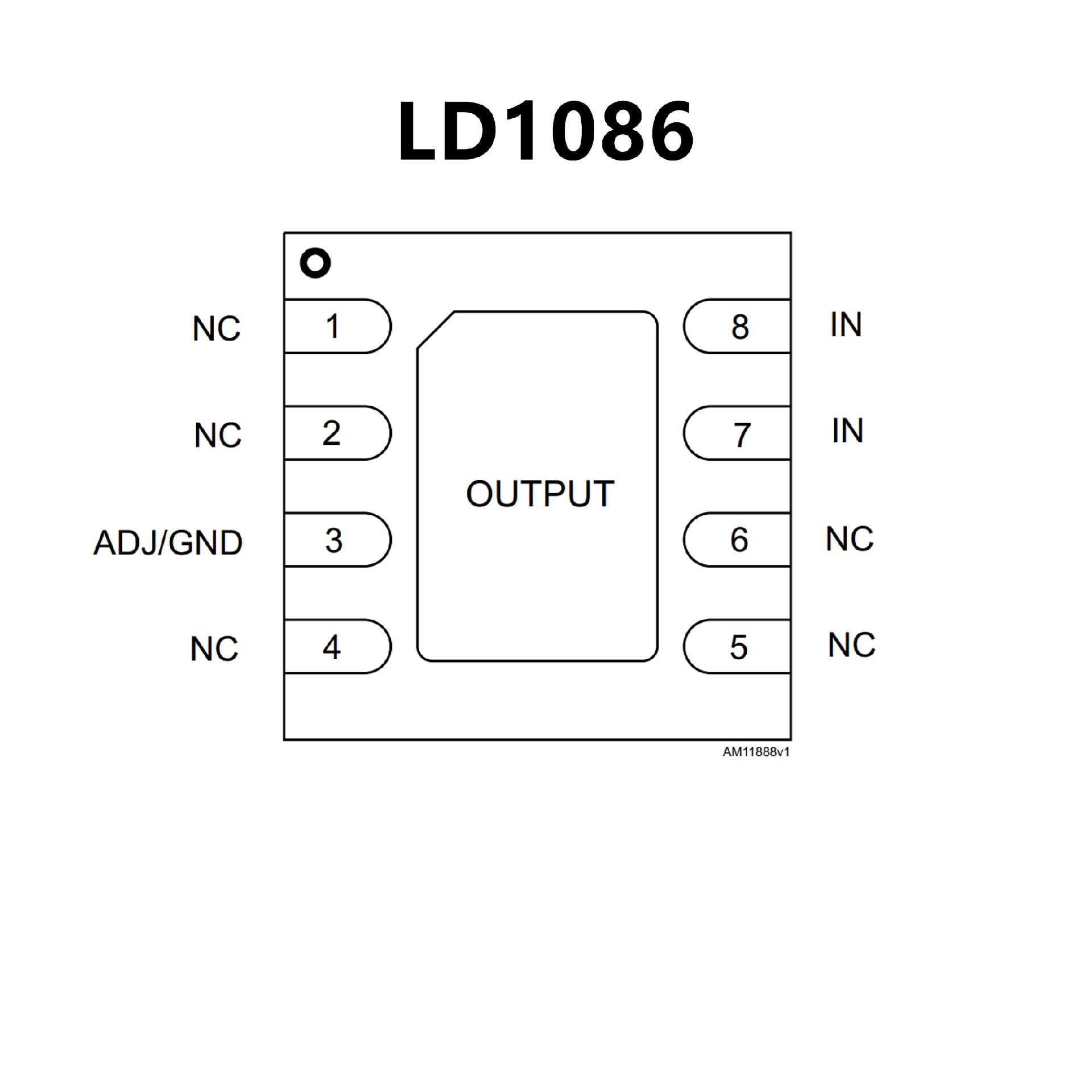

D2PAK/A, DPAK and DFN8 (4x4)
? Pinout compatibility with standard
adjustable voltage regulators
