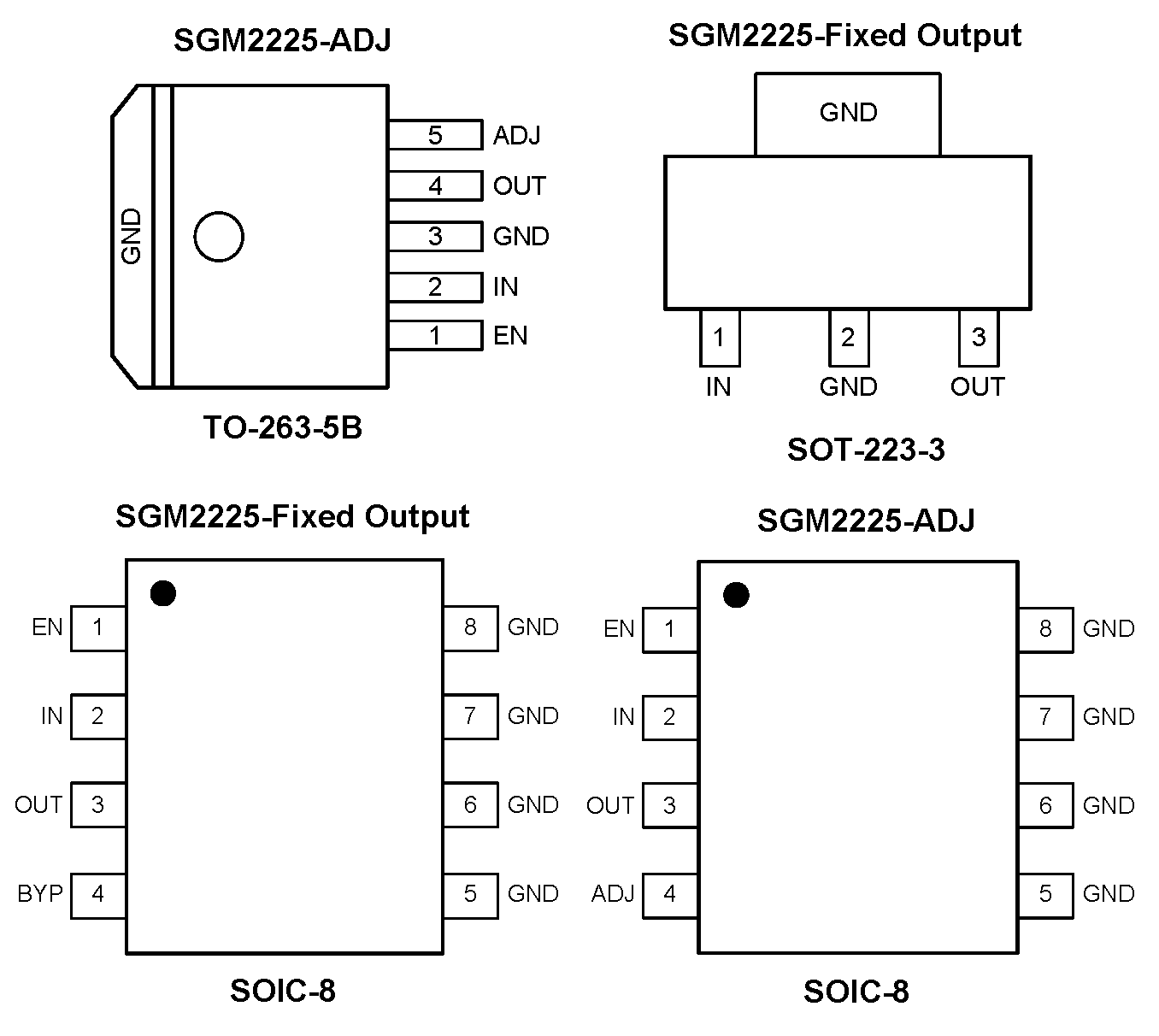

SGM2225.pdf? 3.6V to 36V Wide Input Voltage Range
? Output Voltage Range: 1.8V to 12V
? Guaranteed 800mA Output over the Full Operating
Temperature Range
? Low 480mV (TYP) Dropout Voltage at Full Load
? Extremely Tight Load and Line Regulation
? Fast Load Transient
? Low Temperature Coefficient
? Output Shorted to GND Protection
? Current and Thermal Limiting
? No-Load Stability
? Output Voltage Accuracy: ±2%

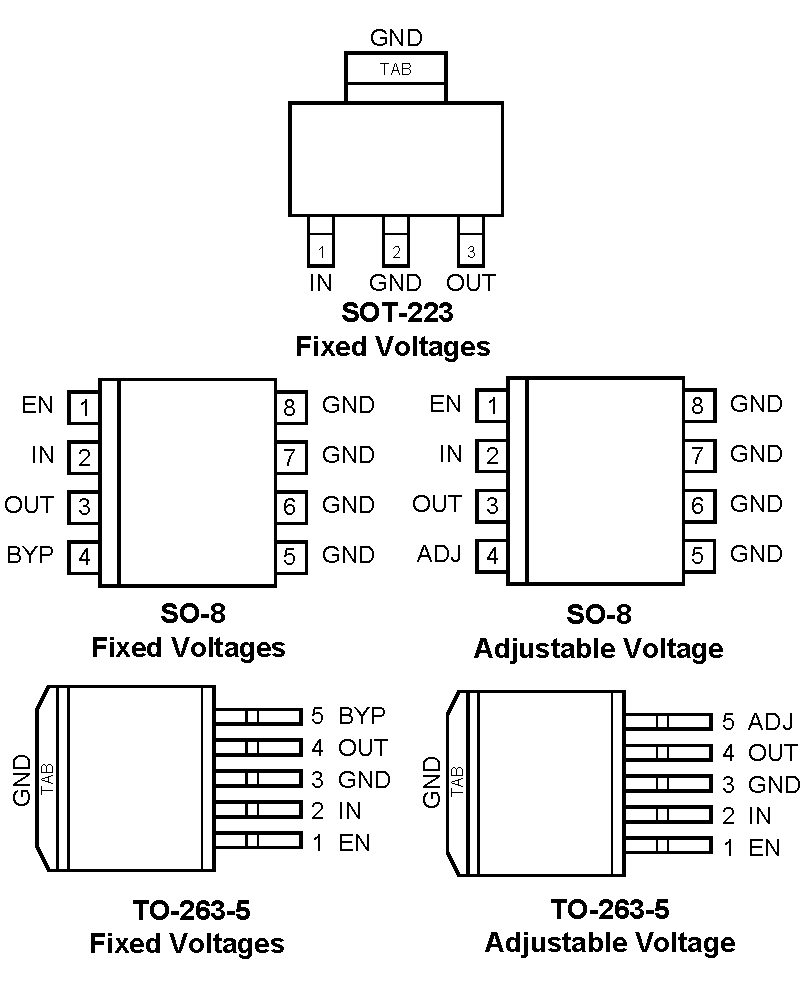

? Thermally-Efficient Surface-Mount Package
? Meets Intel? Slot 1 and Slot 2 requirements
? Guaranteed 500mA output over the full operating
temperature range
? Low 500mV maximum dropout voltage at full load
? Extremely tight load and line regulation
? Thermally-efficient surface-mount package
? Low temperature coefficient
? Current and thermal limiting
? Reversed-battery protection
? No-load stability
? 1% output accuracy
? Ultra-low-noise capability in SO-8 and TO-263-5
