2.4 GHz, 256 QAM WLAN/Bluetooth?Front-end Module, SGM22303A Replace SKY85303.
SGM22303A.pdf優(yōu)勢替代
FEATURES
? Integrated high performance 2.4 GHz PA, harmonic
filter, LNA with bypass, and T/R switch
? Fully-matched input and output
? LNA with integrated bypass mode
? High performance SP3T switch to support Bluetooth
/WiFi functions
? Transmit loopback mode
? Integrated positive slope power detector
? Transmit gain: 26 dB
? Receive gain: 14 dB
? Output power:
? +18 dBm @ 1.8% EVM, MCS8, HT20
? +19 dBm @ 3% EVM, MCS7, HT20
? Direct connection to battery with 3.6 V nominal supply
? Small, QFN (16-pin, 2.5 x 2.5 x 0.4 mm) package
(MSL1, 260 °C per JEDEC J-STD-020)

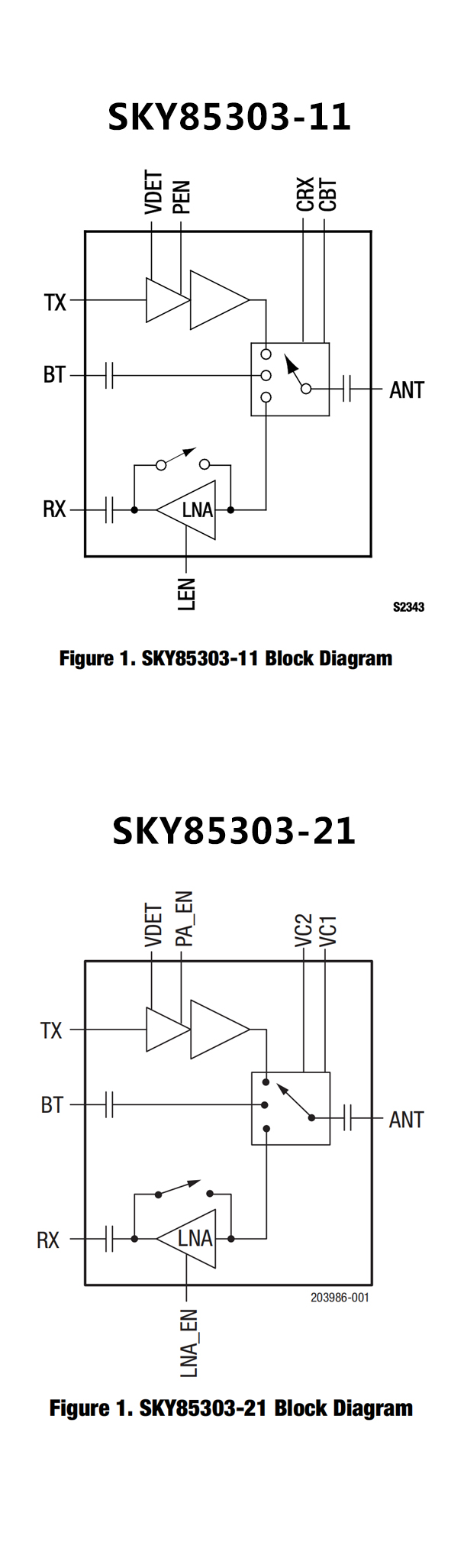

PIN CONFIGUTION
