2.4 GHz, 1024 QAM WLAN Front-End Module, SGM22337A Replace SKY85337.
SGM22337A.pdf優勢替代
FEATURES

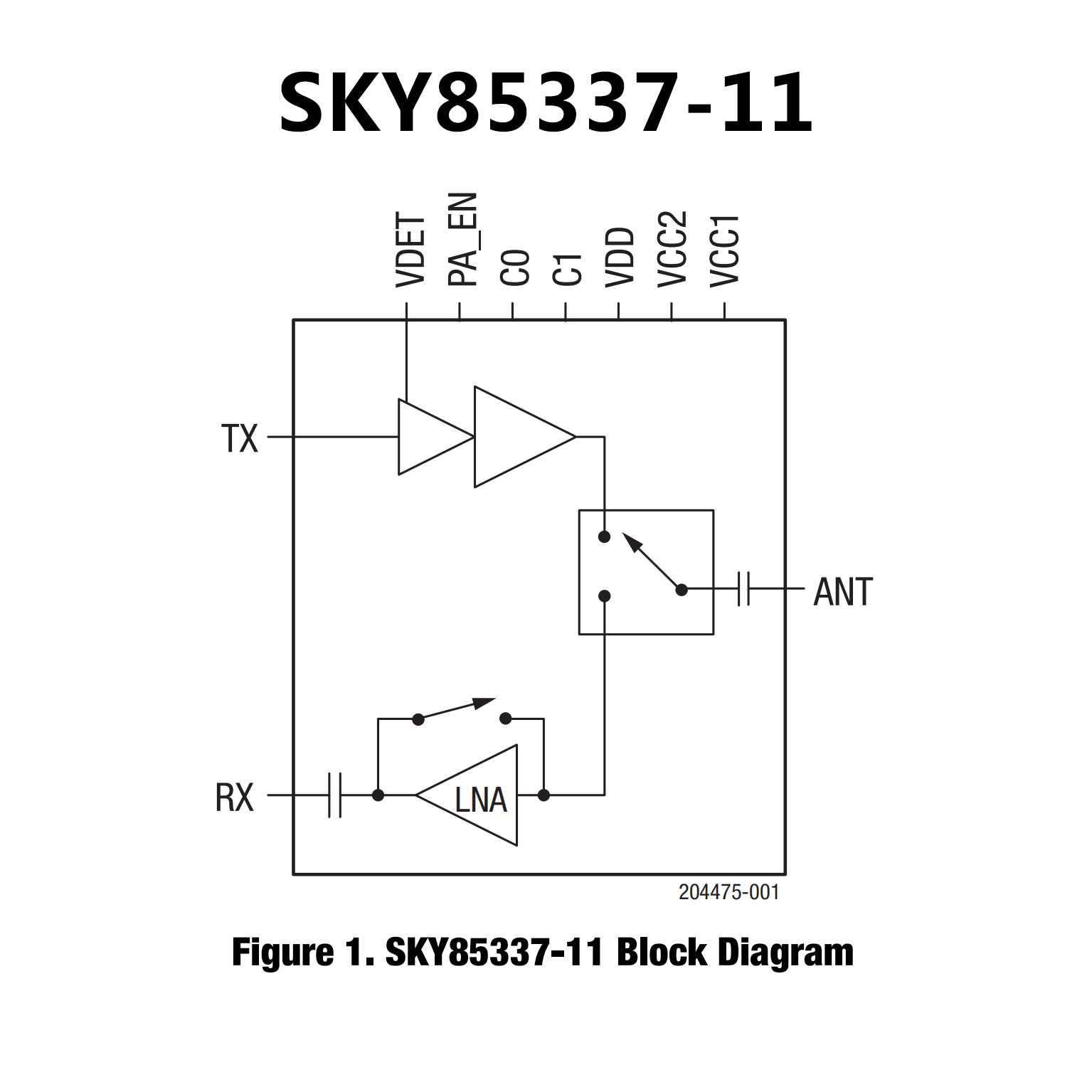

? Integrated high-performance 2.4 GHz PA, harmonic
filter, LNA with bypass, and T/R switch
? Fully-matched input and output
? LNA with integrated bypass mode
? High performance SPDT switch to support WiFi
functions
? Integrated positive slope power detector
? Transmit gain: 32 dB
? Receive gain: 14 dB
? Small 16-pin, 3 × 3 mm laminate package
(MSL3, 260 °C per JEDEC J-STD-020)
PIN CONFIGUTION
