1.0 A Low-Dropout PositiveFixed and AdjustableVoltage Regulators, SGM2240Q Replace NCV1117-1A.
SGM2240Q
SGM2240Q.pdf
SGM2240Q.pdfFEATURES
? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? Operating Input Voltage Range: 2.7V to 20V
? Fixed Output from 1.5V to 12V
? Adjustable Output from 1.25V to 18V
? 1A Output Current
? Output Voltage Accuracy: ±1% at +25℃
? Low Dropout Voltage: 1.25V (TYP) at 1A
? Can Start Up when the Output Voltage is Negative
? Current Limiting and Thermal Protection
? Stable with Small Case Size Ceramic Capacitors
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-223-3 and TO-252-2A
Packages
PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Output Current in Excess of 1.0 A
? 1.2 V Maximum Dropout Voltage at 800 mA Over
Temperature
? Fixed Output Voltages of 1.5 V, 1.8 V, 1.9 V, 2.0 V,
2.5 V, 2.85 V, 3.3 V, 5.0 V, and 12 V
? Adjustable Output Voltage Option
? No Minimum Load Requirement for Fixed Voltage
Output Devices
? Reference/Output Voltage Trimmed to ±1.0%
? Current Limit, Safe Operating and Thermal
Shutdown Protection
? Operation to 20 V Input
? NCV Prefix for Automotive and Other Applications
Requiring Unique Site and Control Change Requirements;
AEC?Q100 Qualified and PPAP Capable
? These are Pb-Free Devices

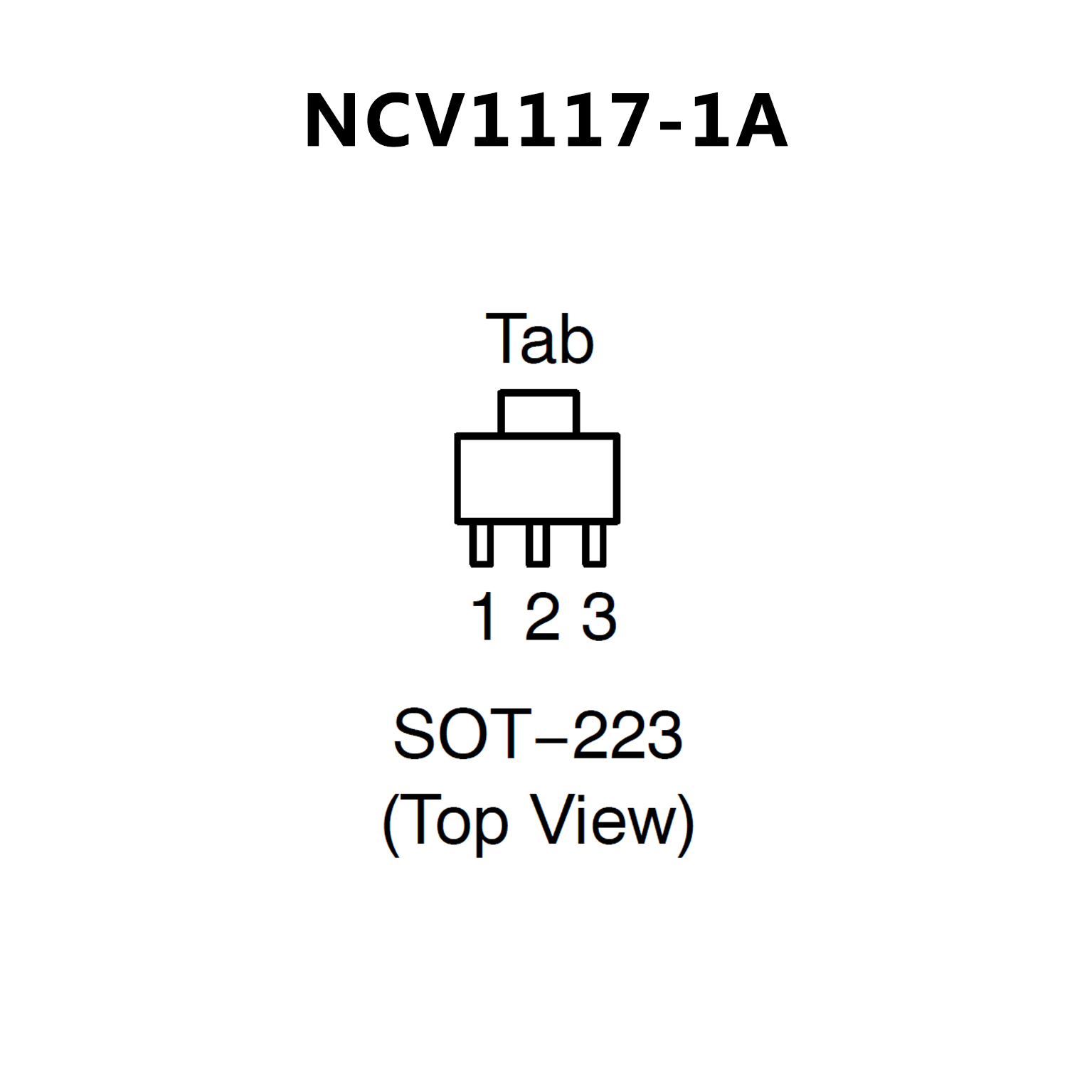

PIN CONFIGUTION
