Programmable Current Limit Switch with Output Voltage Clamping, SGM2526 Replace SY6874.
SGM2526
SGM2526.pdf
SGM2526.pdfFEATURES
? Wide Input Voltage Range from 4.5V to 24V with
Surge up to 30V
? Extremely Low RDS(ON) for the Integrated
Protection Switch: 23mΩ
? Programmable Soft-Start Time
? Programmable Current Limit 5A MAX
? Thermal Shutdown Protection
SGM2525: Latched-Off
SGM2526: Auto-Recovery
? Selectable Input Range and Clamping Output
Voltage Threshold
? Enable Interface Pin
? -40℃ to +85℃ Operating Temperature Range
? Available in the Green TDFN-3×3-10L Package

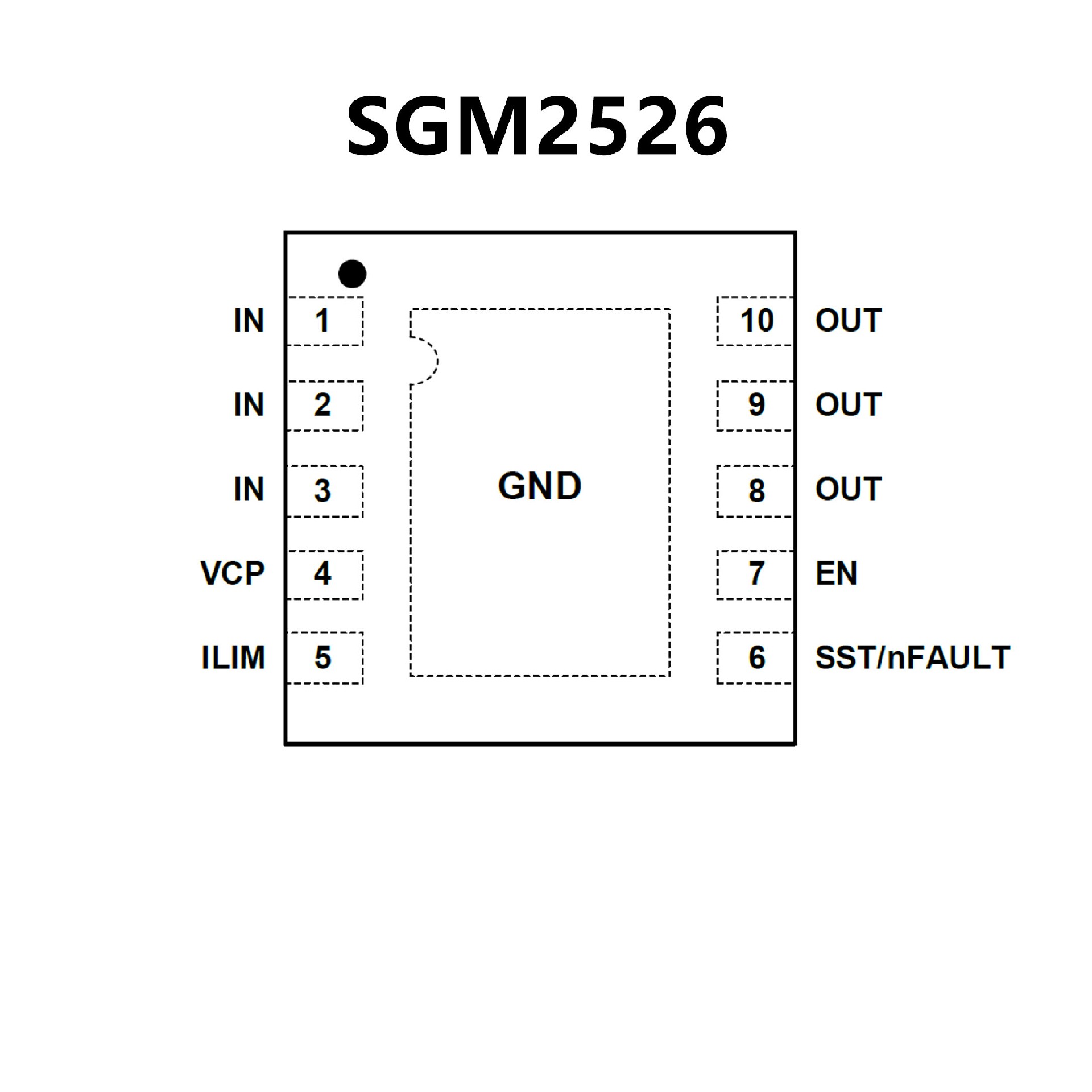

PIN CONFIGUTION
優(yōu)勢替代
FEATURES
? Wide Input Voltage Range from 2.5V to 15V with
surge up to 30V
? Extremely Low RDS(ON) for the Integrated
Protection Switch: 50 mΩ
? Programmable Soft-Start Time
? Programmable Current Limit up to 4A
? Short-circuit Protection
? Selectable Input Range and Clamping Output
Voltage Threshold.
? Enable Interface Pin
? Thermal Shutdown Protection & Auto Recovery
? RoHS Compliant and Halogen Free
? Compact package: DFN3X3-10

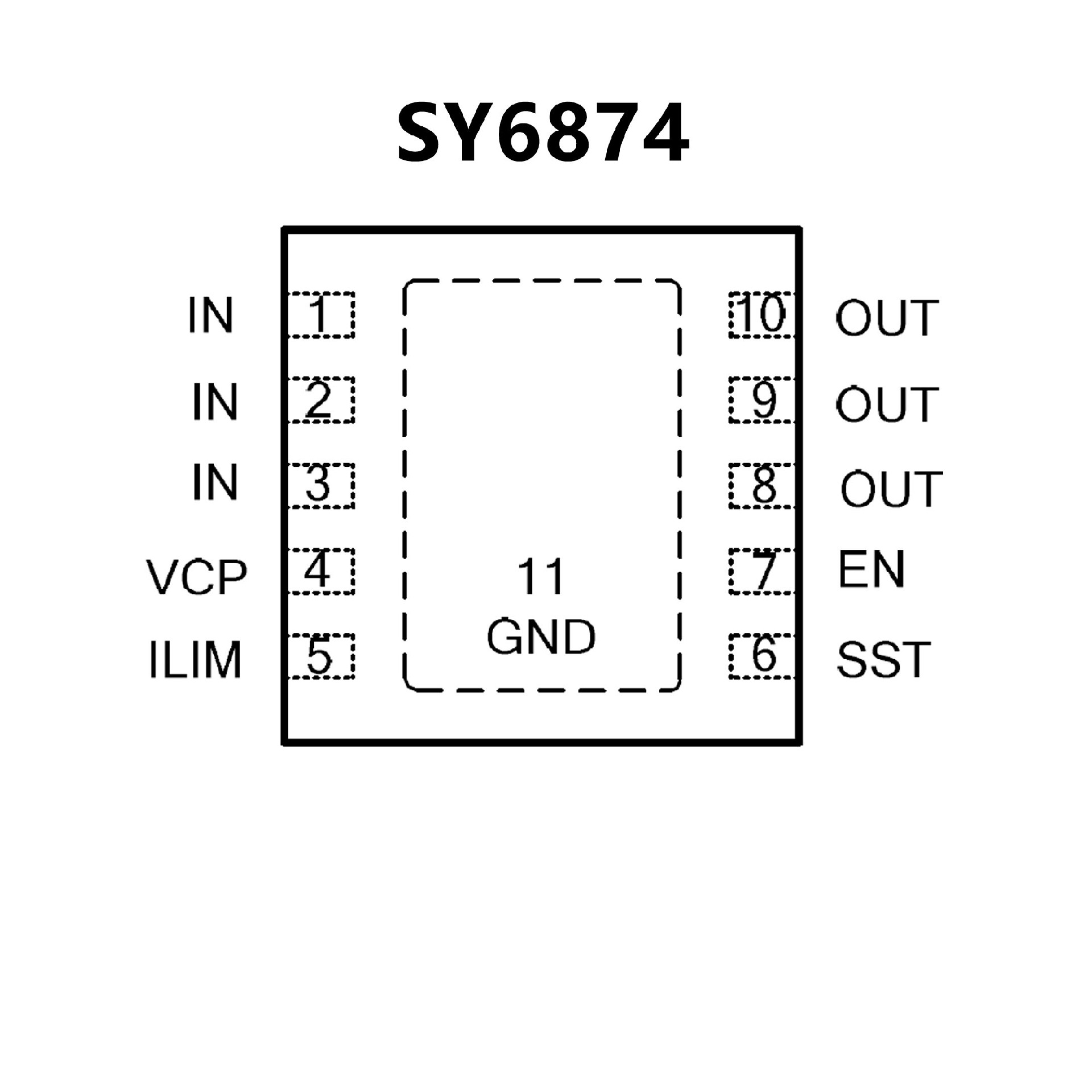

PIN CONFIGUTION
