Precision Adjustable Current Limited Power Distribution Switches, SGM2551 Replace RT9722.
SGM2551
SGM2551.pdf
SGM2551.pdfFEATURES
? Up to 1.5A Maximum Load Current
? Meets USB Current Limiting Requirements
? Adjustable Current Limit: 100mA to 1.7A
? Fast Over-Current Response: 2μs
? 90mΩ High-side MOSFET
? No Reverse Leakage Current of High-side MOSFET
? Reverse Input-Output Voltage Protection
? Operating Range: 2.5V to 5.5V
? Built-in Soft-Start Function

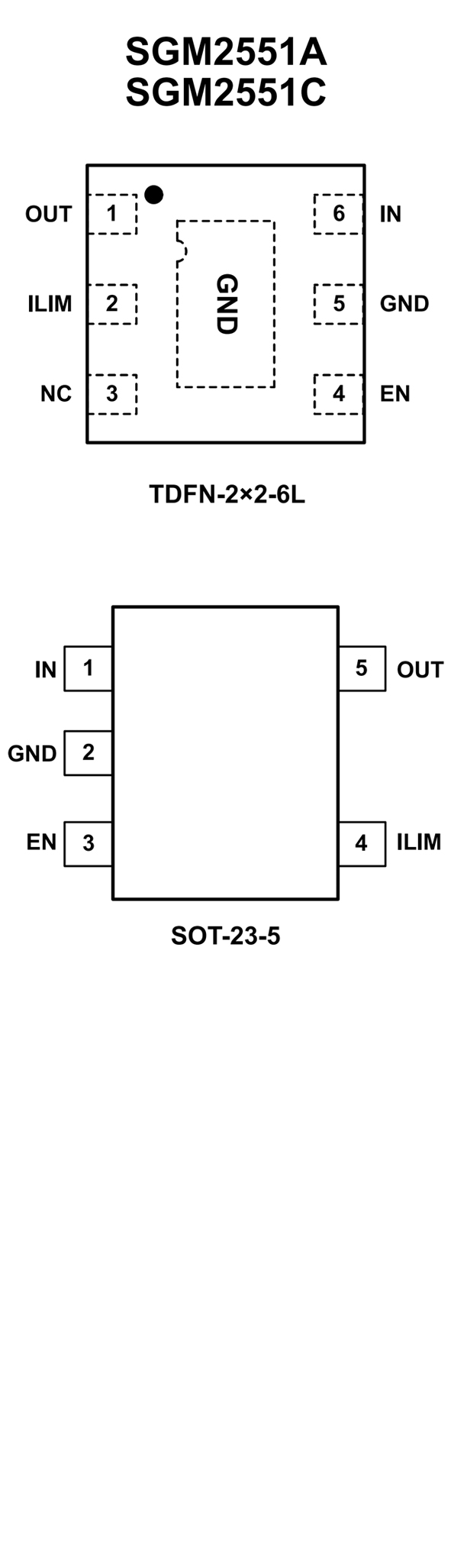

PIN CONFIGUTION
優勢替代
FEATURES
? Programmable Current Limit : 0.2A to 1.5A
? Low Quiescent Current : 10μA
? Low Shutdown Current : 0.1μA
? 145mΩ Switch On Resistance
? Operating Voltage Range : 2.4V to 5.5V
? Under Voltage Lockout
? Thermal Shutdown Protection
? RoHS Compliant and Halogen Free

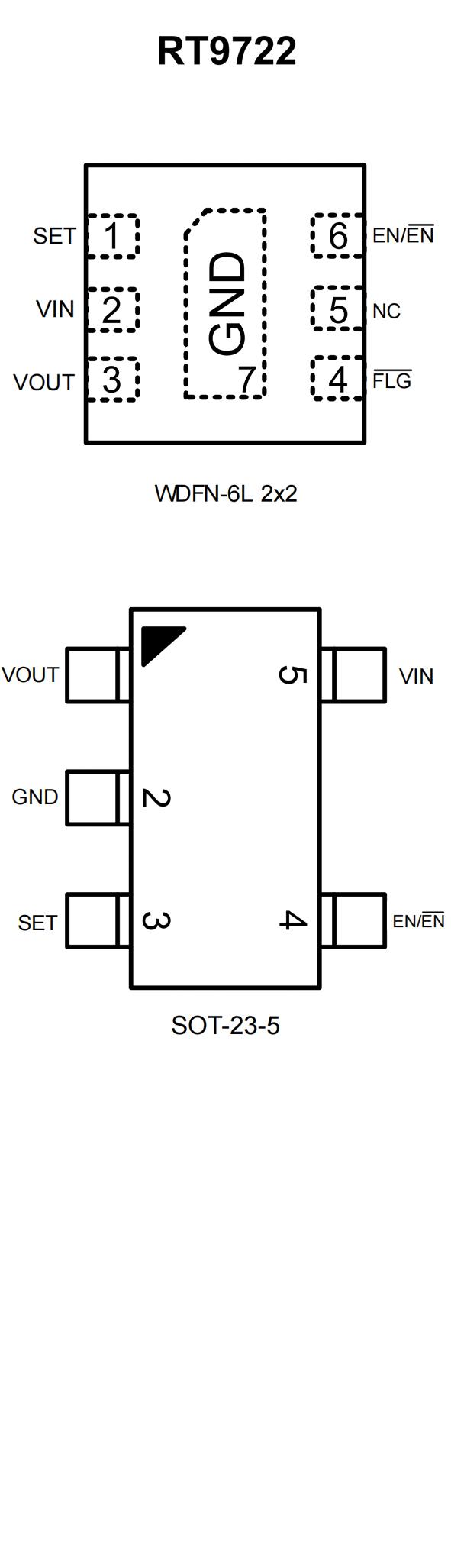

PIN CONFIGUTION
