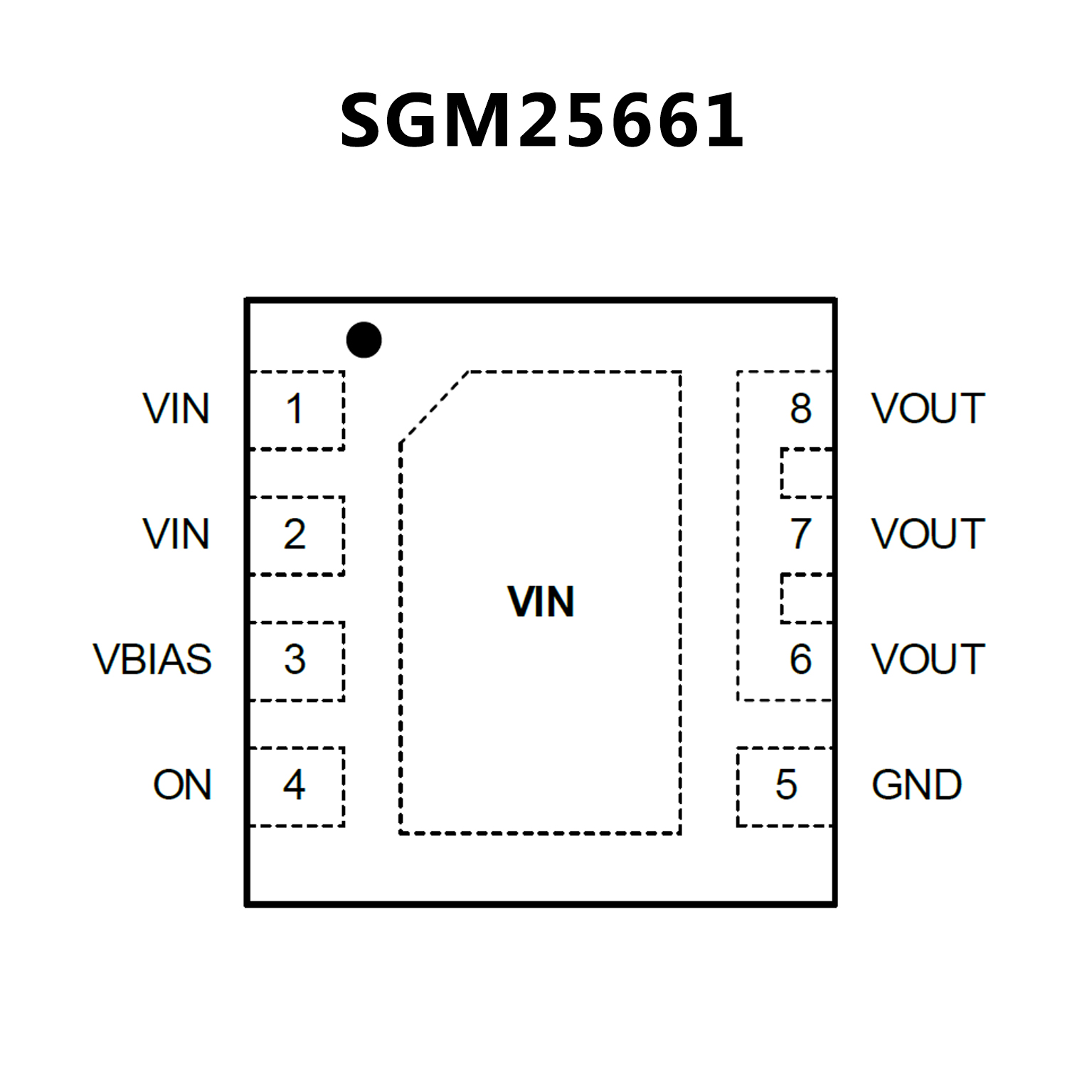

SGM25661.pdf? Input Voltage Range: 0.8V to 3.5V
? VBIAS Voltage Range: 3V to 5.5V
? Ultra-Low On-Resistance:
RON = 5.3m? (TYP) at VIN = 2.5V, VBIAS = 5V
? Maximum Continuous Load Current: 6A
? Low Quiescent Current: 0.6μA (TYP)
? Support with 1.2V, 1.8V, 2.5V and 3.3V GPIOs
? Rise Time: 8.1μs at VIN = 2.5V, VBIAS = 5V
? Fast Output Discharge
? -40℃ to +85℃ Operating Temperature Range
? Available in a Green TDFN-3×3-8EL Package

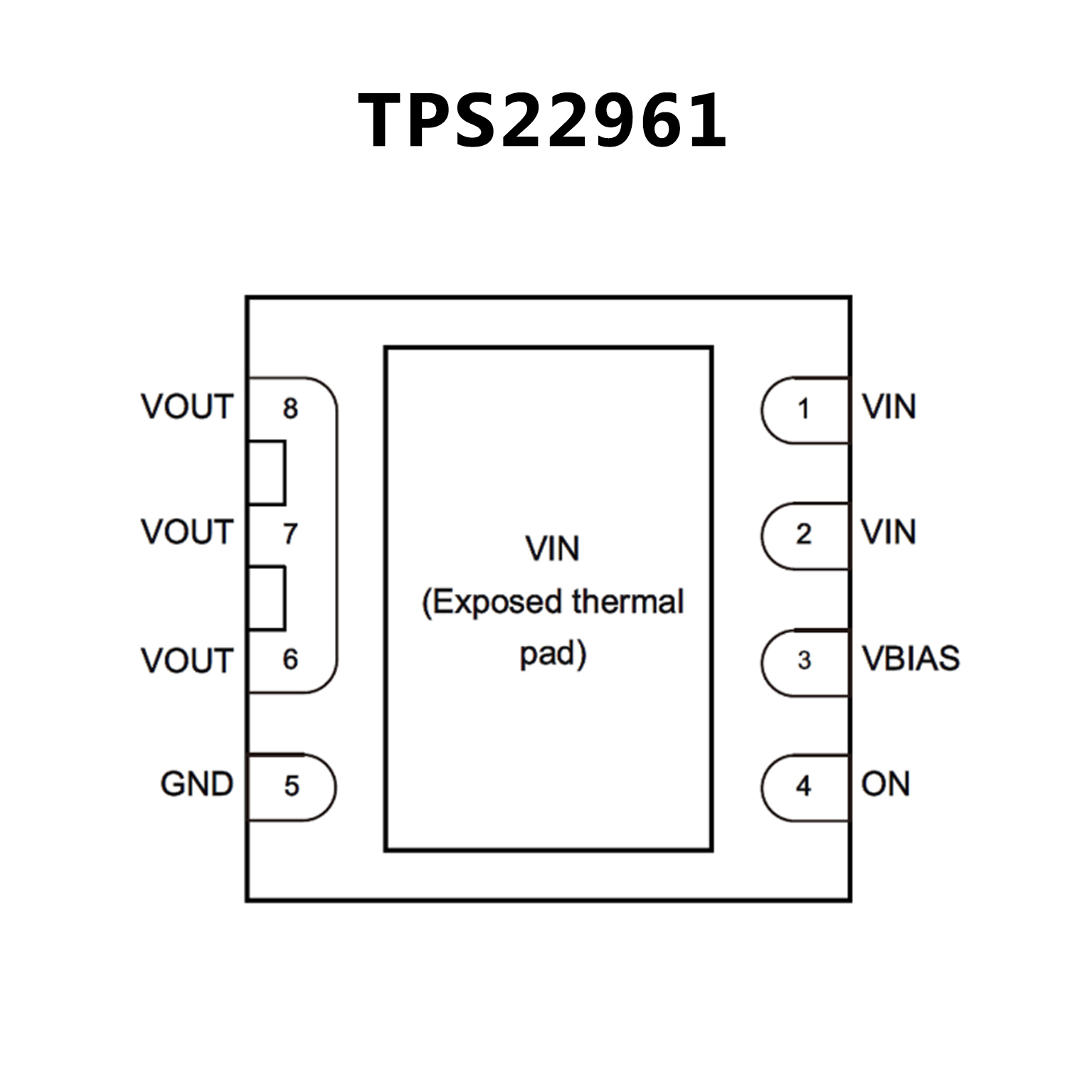

? Integrated Single Channel Load Switch
? VBIAS Voltage Range: 3 V to 5.5 V
? Input Voltage Range: 0.8 V to 3.5 V
? Ultra low RON Resistance
RON = 4.4 m? at VIN = 1.05 V (VBIAS = 5 V)
? 6A Maximum Continuous Switch Current
? Low Quiescent Current < 1 μA (max)
? Low Control Input Threshold Enables
use of 1.2-V/1.8-V/2.5-V/3.3-V Logic
? Controlled Slew Rate
R = 4.2 μs at VIN = 1.05 V (VBIAS = 5 V)
? Quick Output Discharge (QOD)
? SON 8-terminal Package with Thermal Pad
? ESD Performance Tested per JESD 22
2-kV HBM and 1-kV CDM
