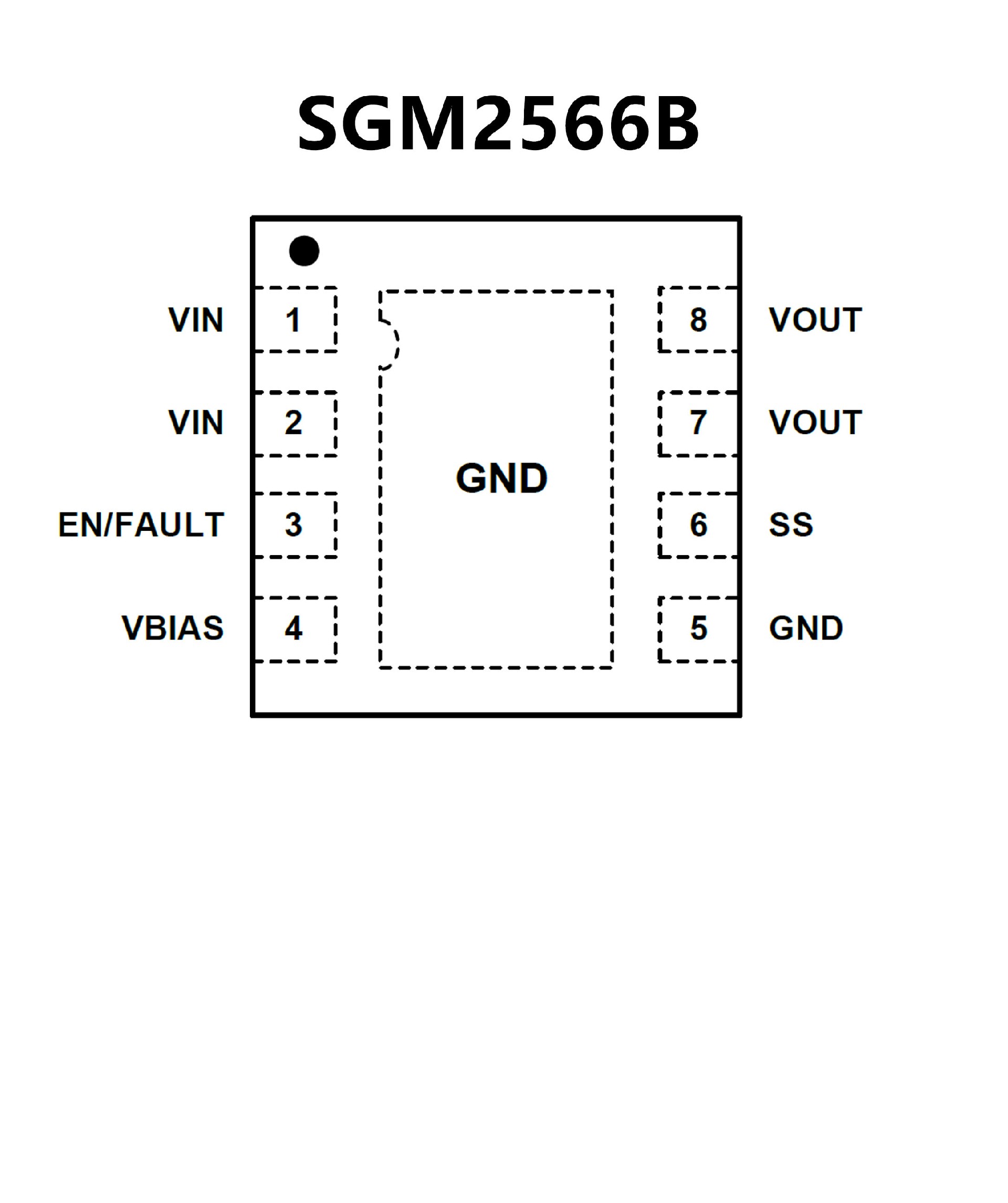

SGM2566B.pdf? Input Voltage Range: 0.8V to 5.5V
? Ultra-Low On-Resistance
RDS(ON) = 19mΩ at VIN = 3.3V (VBIAS = 5V)
? 6A Maximum Continuous Switch Current
? Low Quiescent Current:
15μA (VBIAS = 5V)
9μA (VBIAS = 2.5V)
? Reverse Current Blocking Support
? Built-In Thermal Shutdown
? Over-Current/Short-Circuit Protection
? Soft-Start Function
? Enable/Fault Pin
? Low Control Input Threshold Enables
Use of 1.2V, 1.8V, 2.5V and 3.3V Logic
? Configurable Rise Time
? SGM2566A: Quick Output Discharge
? -40℃ to +85℃ Operating Temperature Range
? Available in the Green TDFN-2×2-8L Package

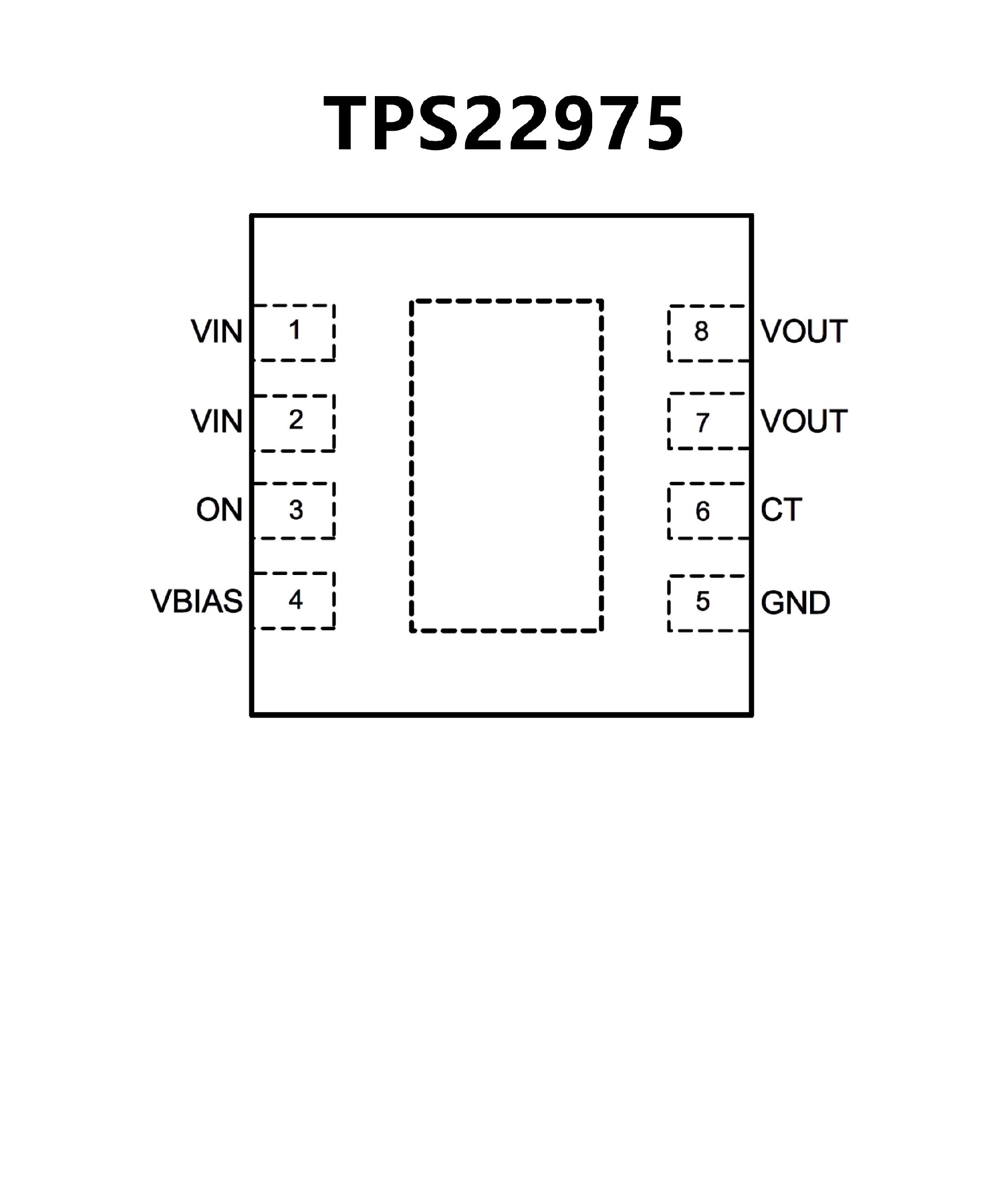

? Integrated Single-Channel Load Switch
? Input Voltage Range: 0.6 V to VBIAS
? VBIAS Voltage Range: 2.5 V to 5.7 V
? On-Resistance (RON)
RON = 16 mΩ (typical) at VIN = 0.6 V to 5.7 V,
VBIAS = 5.7 V
? 6-A Maximum Continuous Switch Current
? Low Quiescent Current
37 μA (typical) at VIN = VBIAS = 5 V
? Low-Control Input-Threshold Enables Use of
1.2-, 1.8-, 2.5-, and 3.3-V Logic
? Configurable Rise Time
? Thermal Shutdown
? Quick-Output Discharge (QOD) (Optional)
? SON 8-pin Package with Thermal Pad
? ESD Performance Tested per JESD 22
2000-V HBM and 1000-V CDM
