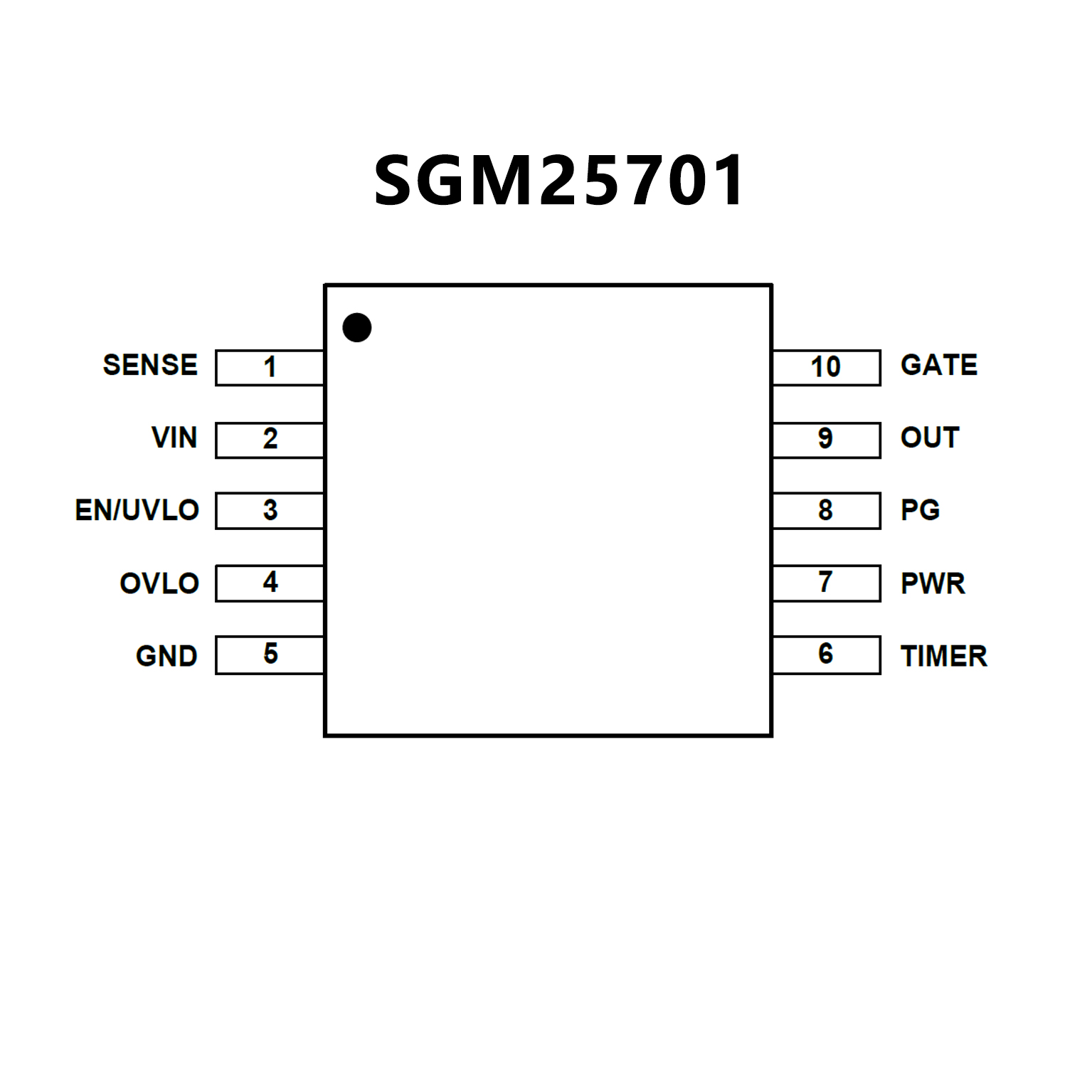

SGM25701.pdf? Wide Input Voltage Range: 9V to 70V
? Inrush Current Limit, PCB can be Safely
Inserted into Live Equipment
? External Device Programming Maximum Loss Limit
? Programmable Current Limit
? Adjustable Under-Voltage Lockout (EN/UVLO)
? Adjustable Over-Voltage Lockout (OVLO)
? Open-Drain for Good Output Indication
? Quick Cut-Off Function when Severe
Over-Current Occurs
? Configure Charge Pump/Gate Driver for External
N-MOSFET
? The Setting of the Insertion Time Allowing
the Ringing and Transient Recovery
Process after the System Connected
? Adjustable Fault Timing to Prevent False Shutdown
? Behavior after Fault:
SGM25701A: Auto-Retry
SGM25701B: Latch-Off
? Available in a Green MSOP-10 Package

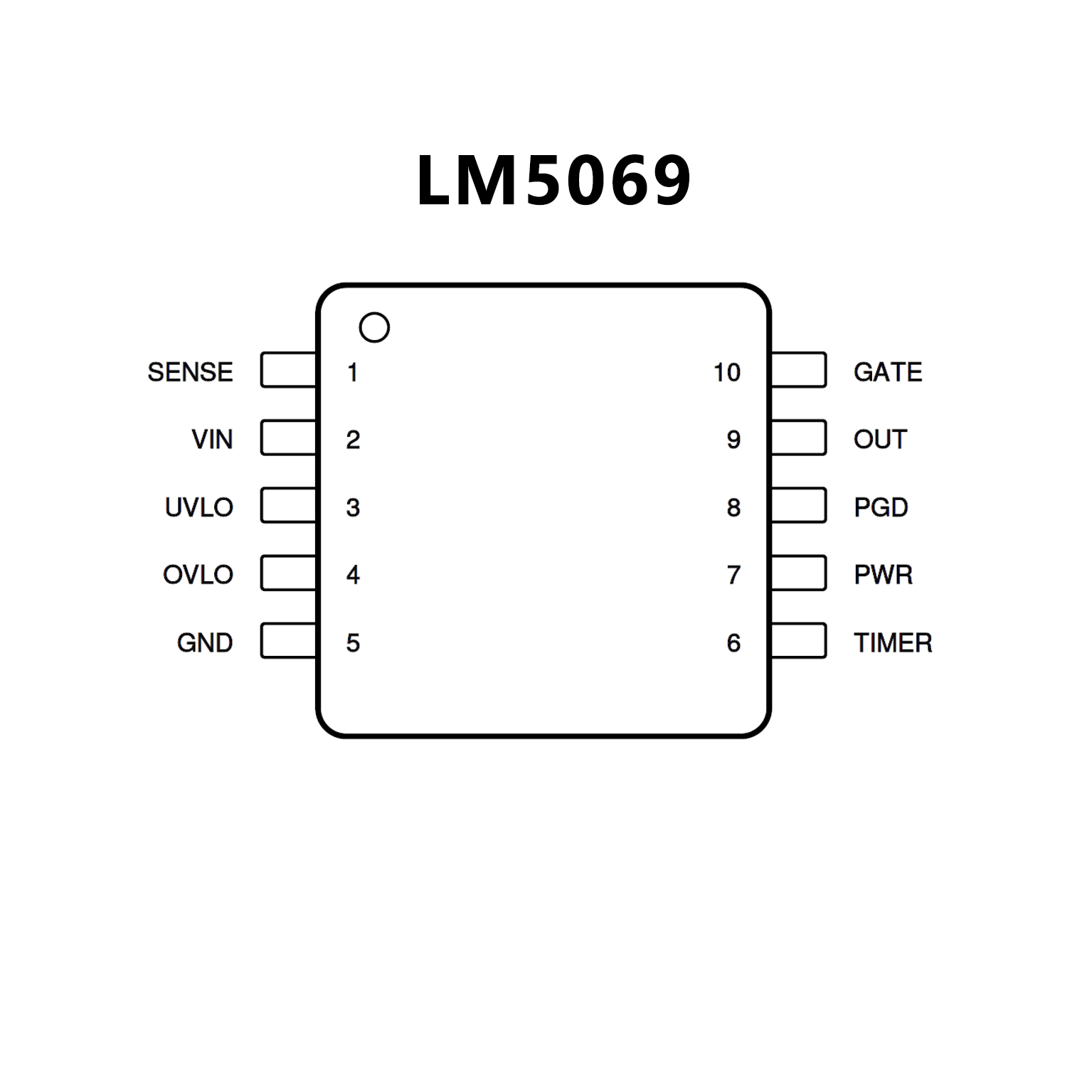

? Wide operating range: 9 V to 80 V
? In-rush current limit for safe board insertion into
live power sources
? Programmable maximum power dissipation in the
external pass device
? Adjustable current limit
? Circuit breaker function for severe overcurrent
events
? Internal high side charge pump and gate driver for
external N-channel MOSFET
? Adjustable undervoltage lockout (UVLO) and
hysteresis
? Adjustable overvoltage lockout (OVLO) and
hysteresis
? Initial insertion timer allows ringing and transients
to subside after system connection
? Programmable fault timer avoids nuisance trips
? Active high open drain POWER GOOD output
? Available in latched fault and automatic restart
versions
? 10-Pin VSSOP package
