TPS2471x 2.5-V to 18-V High-Efficiency Power-Limiting Hot-Swap Controller, SGM25711 P2P TPS24711.
SGM25711
SGM25711.pdf
SGM25711.pdfFEATURES
? Input Voltage Range from 2.5V to 18V
? Programmable MOSFET SOA Protection
? Accurate Current Limit at All Times
? Accurate 25mV Current Sense Threshold
? Power Good Output
? Fast Circuit-Breaker for Short-Circuit Protection
? Programmable Fault Timer
? Programmable Under-Voltage Threshold
? Active-Low for nPG and nFLT Pins
? Available in a Green MSOP-10 Package

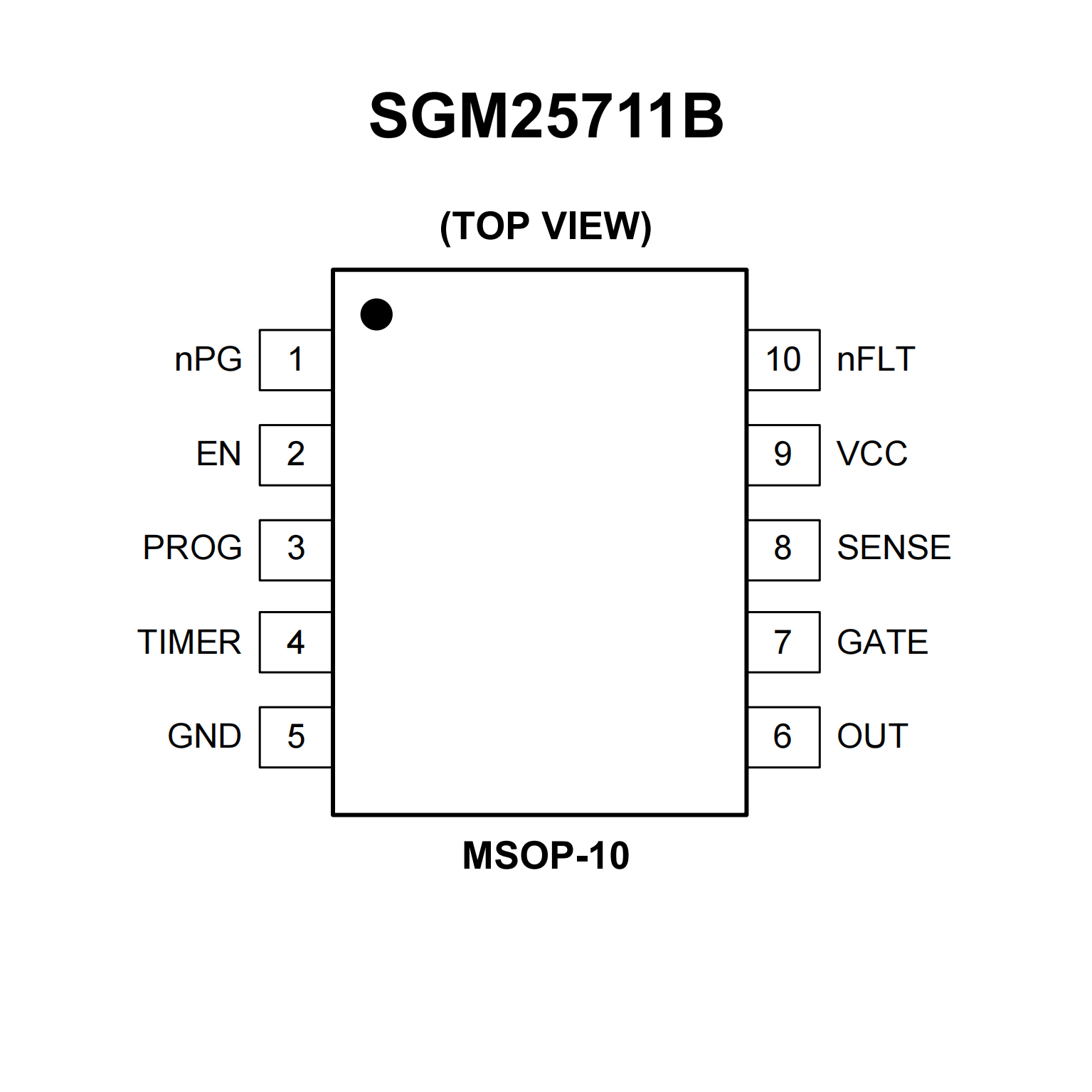

PIN CONFIGUTION
優勢替代
FEATURES
? 2.5-V to 18-V Operation
? Accurate Current Limiting for Startup
? Programmable FET SOA Protection
? Accurate 25-mV Current-Sense Threshold
? Power-Good Output
? Fast Breaker for Short-Circuit Protection
? Programmable Fault Timer
? Programmable UV Threshold
? Drop-In Upgrade for LTC4211 – No Layout
Changes
? PG, FLT Active-High and Active-Low Versions
? MSOP-10 Package

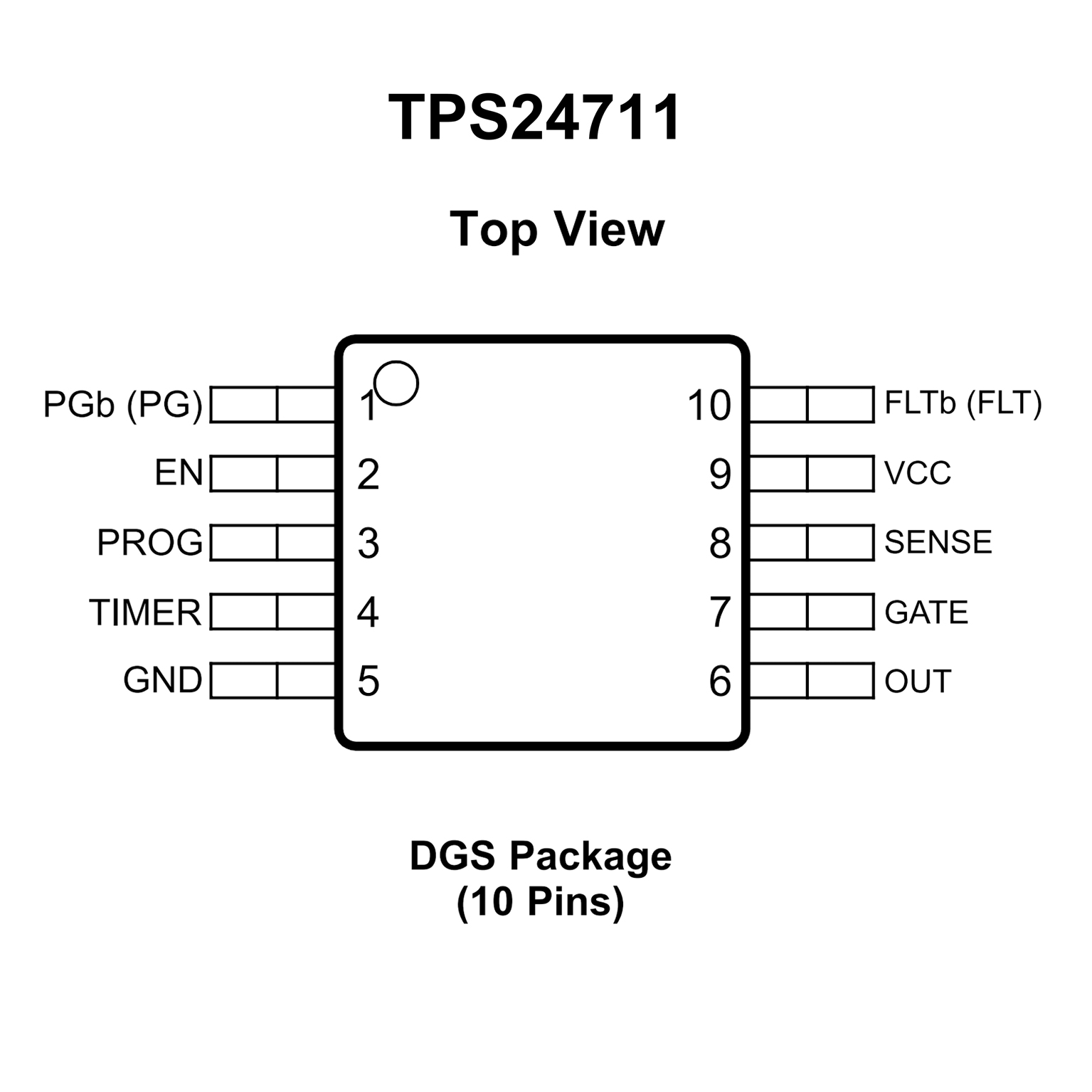

PIN CONFIGUTION
